Summary of Contents for Steibel Eltron WK 2

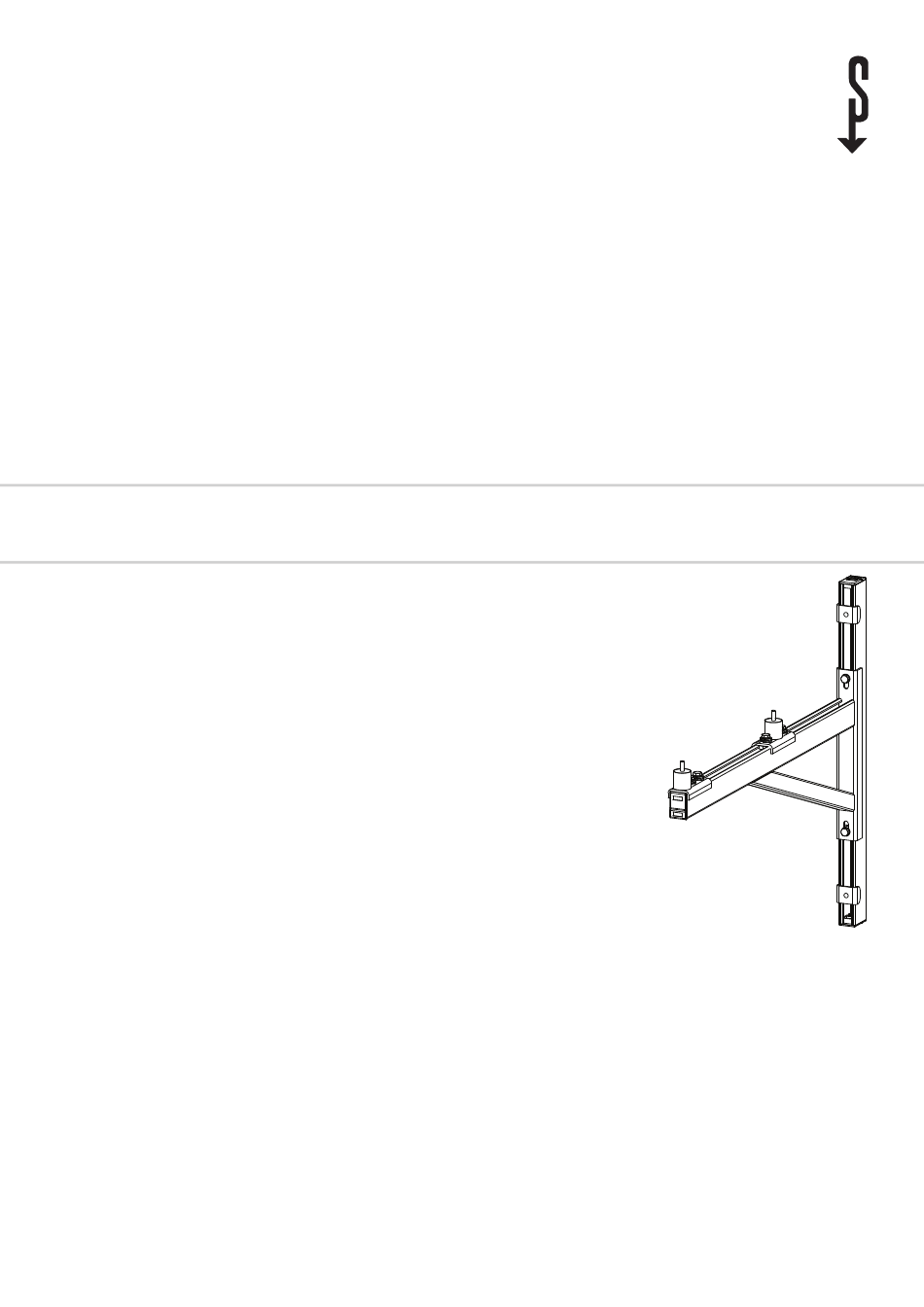

- Page 1 INSTALLATION Wall Mounting support » WK 2...
-
Page 2: Installation
Install the wall mounting bracket on a garage wall, for example. Note to facilitate installation and maintenance work, we recommend a maximum installed height of 39” (1 m). WK 2... - Page 3 Insert the screws through the washers into the rail supports. f secure the screws with the slide nuts. Ensure that the knurled sides of the slide nuts are facing the screws. f Wind the screws into the slide nuts by a couple of turns. WK 2...
- Page 4 Ensure that the slide nuts are aligned in parallel to the connector rails. Ensure that the knurled sides of the slide nuts are facing the screws. f Fit the assemblies to the appliance. WK 2...
-
Page 5: Specification
(490 mm) 1⅝" (41 mm) f Mount the appliance with the assemblies on the rail supports. f align the appliance on the rail supports. 5.2 Data table WK 2 234722 support length 35⅜" (900 mm) 90° Weight 29.5 lb (13.4 kg) Weight load 385.8 lb (175 kg) - Page 6 NOTES WK 2...
- Page 7 NOTES WK 2...
- Page 8 STIEBEL ELTRON GmbH & Co. KG STIEBEL ELTRON, Inc. Dr.-Stiebel-Str. 33 | 37603 Holzminden 17 West Street | West Hatfield, MA 01088 Tel. 05531 702-0 | Fax 05531 702-480 Tel. 413.247.3380 | Fax 413.247.3369 info@stiebel-eltron.de info@stiebel-eltron-usa.com www.stiebel-eltron.de www.stiebel-eltron-usa.com...
