INSTRUCTION MANUAL

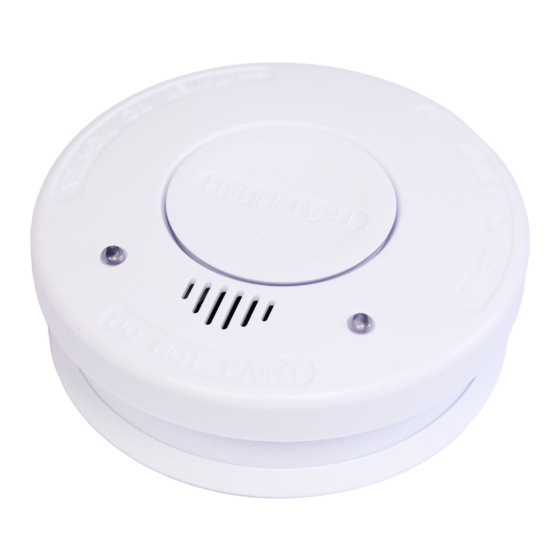

SMOKE ALARM FS-588HLL
Read the instruction manual before use
FEATURES
♦
Photoelectric smoke detection
Normal detection mode and low sensitivity detection mode (Hush)
♦
Built-in 10-year sealed lithium battery
♦
End of life warning
♦
Low voltage warning
♦
Low power consumption
♦

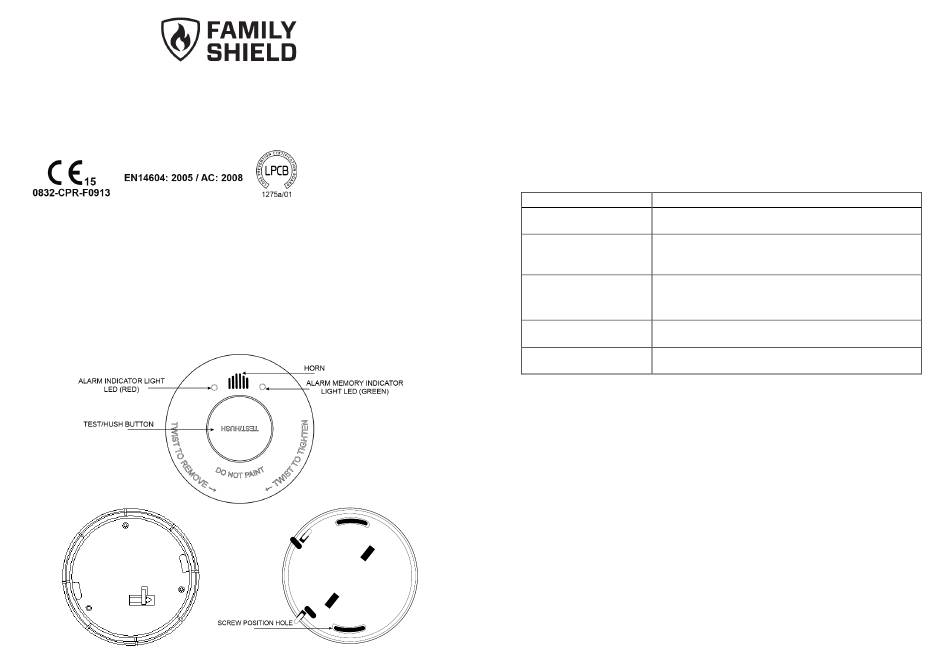

SPECIFICATIONS
BATTERY PIN
(RED)
Technical Parameters:
Model Number:
FS-588HLL
Detection Type:
Photoelectric Sensor
Working Voltage:
3V DC (built-in)
Current:
Quiescent Current: ≤ 2uA
Working Current: ≤ 120mA
Alarming Decibel:
≥85dB/3m
LED Indicator:
LED (Red), LED (Green)
Working Temperature:
-10˚C ~ +40˚C
Working Humidity:
≤ 95%RH (no condensation)
Status Display:
Standby Status
Red LED flashes every 344 seconds, no alarm sound
Smoke Detection or Test
Red LED flashes and continuous alarm is sounding
Low Sensitivity Detection
Red LED flashes every 10 seconds, no alarm sound.
(Silent mode)
Low sensitivity detection mode will cancel after 10
minutes.
Alarm Memory
Green LED flashes 3 times every 43 seconds, and
stops after 24 hours. The first time you press the
TEST/HUSH button after alarm is made, the detector
will hint by special alarm mode.
End of useful life
After 10 years of operation, alarm will sound 3 times
every 43 seconds
Low voltage status
Red LED flashes once and low battery beep every 43
seconds
SMOKE ALARM PLACEMENT
Minimum coverage is one unit for every floor, in every sleeping area, or in every
bedroom. For additional coverage, Family Shield recommends you install units in all
rooms, halls, and storage areas where temperatures normally remain between -10˚C
and 40˚C.
Do not mount the smoke alarm in:
a)
A room in which the temperature can reach below -10˚C and above 40˚C
b)
Damp spaces and areas with high humidity
c)
Directly in front of doors or windows
d)
Near a ventilator or radiator
e)
Near appliances or areas where normal combustion regularly occurs
(kitchens, near furnaces, hot water heaters)
f)
Extremely dusty, dirty, or insect-infested areas where loose particles
interfere with smoke alarm operation
g)
Distances under 50 cm from fluorescent lights or low-energy bulbs
It is not recommended for this product to be installed in high humidity, dusty or high
temperature environments such as the kitchen or bathroom.
