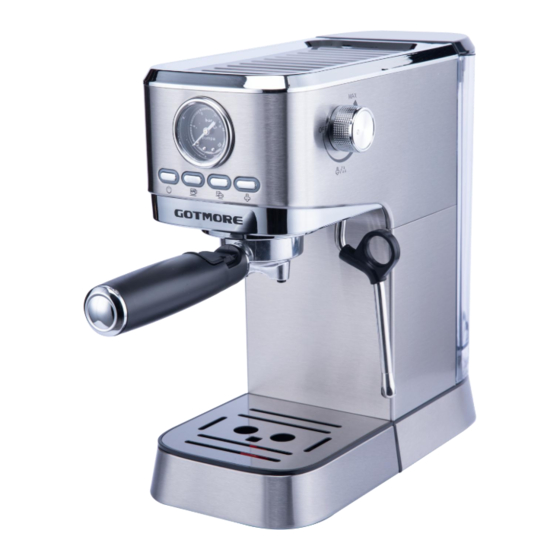

- Page 1 15 BAR COMPACT ESPRESSO MACHINE INSTRUCTION MANUAL Model: CM-1315 HOUSEHOLD USE ONLY Please read all instructions carefully before using the product...
-
Page 2: Table Of Contents
CONTENTS Important Safeguards ..................1 Specifications ....................2 Features of your GOTMORE Espresso Machine ..........3 Before First Use ....................4 Brewing Espresso .................... 6 Frothing Milk ....................8 Making Hot Water ..................10 Setting the Volume of Single and Double shot ..........10 Illustrated Guide ................... -
Page 3: Important Safeguards
Important Safeguards 01. Read all instructions carefully before using the appliance. Misuse may cause injury. 02. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Specifications
-farmhouses, -bed and breakfast-type environments. 22. Do not use outdoors. FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS Specifications Product Model: CM-1315 Housing Material: Stainless Steel Voltage: 120V~60Hz Power: 1300W Espresso Pressure: 15 Bar Capacity of Water Tank: 1 L/33.8 oz Product Size LxHxD: 305×151×312 mm / 12.01×5.94×12.28 in... -
Page 5: Features Of Your Gotmore Espresso Machine
Features of your GOTMORE Espresso Machine 01. Cup Warmer 02. Pressure Gauge 03. Control Panel 04. Boiler Outlet 05. Drip Tray Grid 06. Water Level Indicator 07. Drip Tray 08. Water Tank Lid 09. 1L(33.8 oz) Water Tank 10. Steam/Hot water Knob 11. -
Page 6: Before First Use
Before First Use Cleaning the appliance - Carefully remove the appliance from the packaging and remove all packaging materials. - Remove all accessories from the packaging and from the appliance. - Extract the tank from the appliance by pulling it upwards. - Clean the water tank with the lid, the measure spoon and the filter as well as the Portafilter with warm water and some mild dish-washing liquid. - Page 7 have the socket replaced with a suitable type by a qualified professional. Filling the water tank - Open the Lid and lift upwards using the handle inside. - Then fill the tank with fresh clean water, taking care not to exceed the MAX level then close the lid.
-
Page 8: Brewing Espresso
button. Once the light indicator of steam button stops flashing, the appliance is ready. 07. Turn the steam/hot water knob to the position and deliver to empty the water tank, then turn the knob to the 'OFF' position. Note: The above operation can be repeated several times to achieve a better rinse effect. - Page 9 follow these steps: - It is recommended that you warm the cups before making coffee by rinsing them with a little hot water. - Attach the Portafilter to the appliance with the filter in place but without adding ground coffee. Using the same cup that will later be used to make the espresso, press the 1-Coffee button and deliver hot water into the cup to heat - Rest the cups you will be using on the cup warmer which becomes hot during operation.
-
Page 10: Frothing Milk
- Always use cold water to make coffee. Warm water or other liquids could cause damage to the appliance. - Filtered water will make the best-tasting coffee. Frothing Milk How to make milk froth 01. Press the steam button. The steam button will start to flash if the temperature is not high enough to make steam. - Page 11 wand then turn the knob off again. Note: For cleaning the inner of frothing nozzle. Turn the steam control knob on first and press the 2-Coffee button, then hot water will flow out and wash the frothing nozzle. 10.Do not make espresso immediately after frothing milk. The temperature of the boiler is too high, and the machine is under the over-heating protection.
-
Page 12: Making Hot Water
Barista Tip: Milk Temperature • Under - If not heated long enough, it will be warm with little froth. • Optimum - See the below table. • Over - If heated for too long it will start to boil around 162°F and will have a burnt taste with all froth lost. - Page 13 1-Coffee button again to stop. At this point, the machine will automatically remember the extraction time (the maximum setting time is 60 seconds) and the machine will default it to a new volume of single shot making extraction time. Set the volume of double shot 01.
-
Page 14: Illustrated Guide
Illustrated Guid... -
Page 21: More Espresso Styles To Try
More Espresso Styles to Try Espresso (Short Black) Espresso is a concentrated, full bodied coffee with a stable layer of crema on top. An espresso is the foundation of all café coffee. • Espresso glass (3 oz) • Single or double shot of espresso (1-2 oz) Ristretto A ristretto is an extremely short espresso, distinguished by its intense flavor, aftertaste and its thin crema on top. - Page 22 More Espresso Styles to Try Flat White An espresso with frothed milk & a thin layer of foam milk on top. The wider cup will create the slim layer of foam, the signature of the flat white. • Wide cup (6 oz) •...
-
Page 23: Cleaning And Maintenance
Cleaning and Maintenance Regular cleaning and maintenance keep the machine in working condition and ensure perfect coffee flavour, a constant coffee flow, and excellent milk froth for a long period of time. The following parts of the machine must be cleaned regularly: - Drip tray (Feature. - Page 24 Cleaning the coffee filters Clean the coffee filters after each use: 1 and 2 cup filters 01. Extract the perforated filter by pulling the tab. 02. Rinse the filters under running water. 03. Make sure the holes are not blocked. If necessary, clean with a pin. 04.
-
Page 25: Descaling
Cleaning the water tank 01. Clean the water tank regularly (about once a month) with a damp cloth and a little mild washing-up liquid. 02. Remove the water tank for the appliance and rinse it with running water. 03. Fill the tank with fresh water and replace the tank. Note: If the appliance will not be used for a long time, please empty the water tank. -
Page 26: Trouble Shooting
Trouble Shooting... - Page 27 Trouble Shooting...
-
Page 28: Warranty Information
- Partially or completely dismantled appliances. Customer Support If you have any questions or concerns about your new product, please contact GOTMORE Customer Support Team. Contact our team by email： service@gotmoreappliances.com... - Page 29 Get More Than You Expect GOTMORE APPLIANCES INC. 1162 EGAN AVE LA PUENTE, CA 91744 United States of America service@gotmoreappliances.com www.gotmoreappliance.com...
