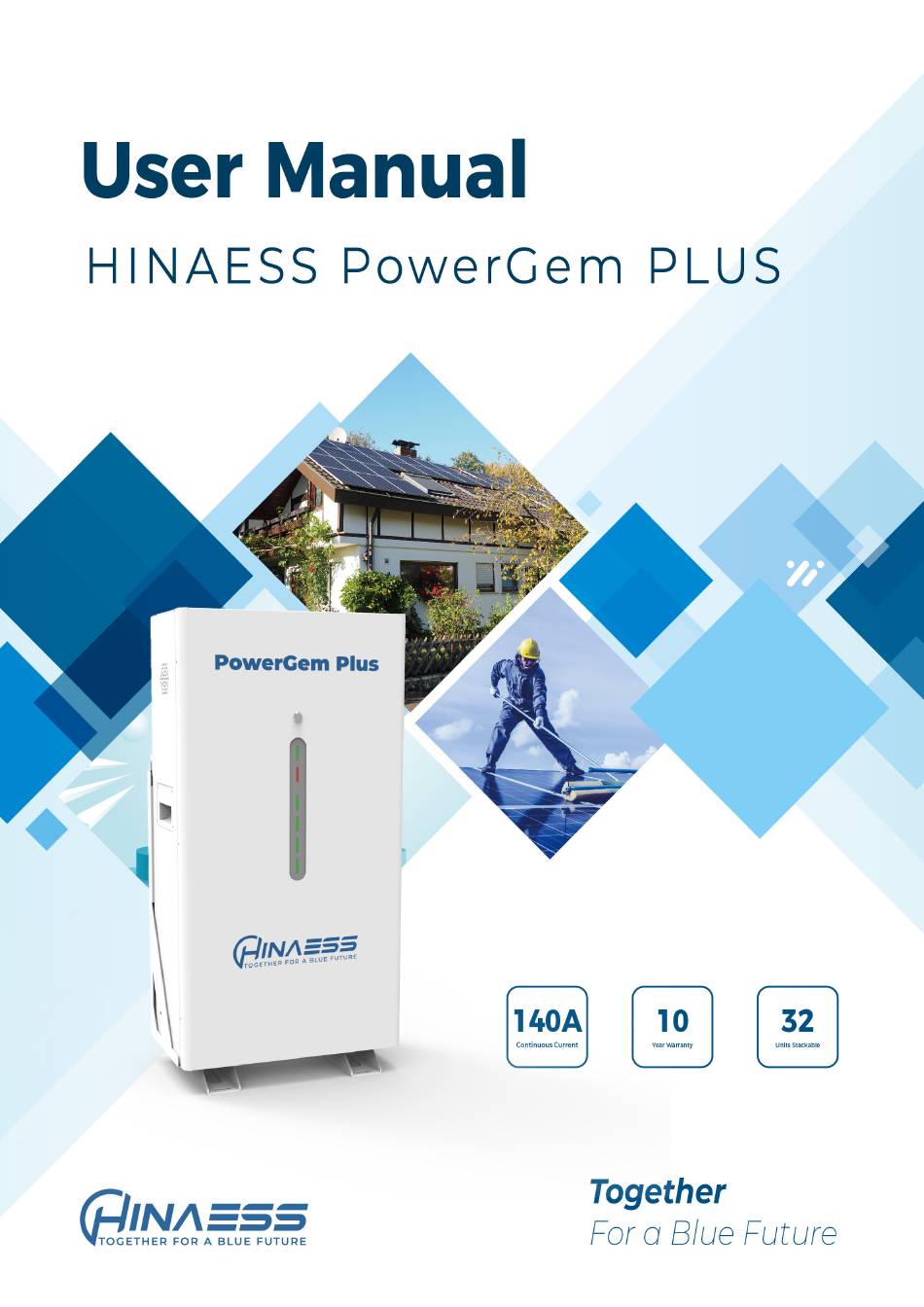

Summary of Contents for HINAESS PowerGem PLUS
-
Page 2: Table Of Contents
Contents Statement of Law ......................3 Safety Precautions ......................4 Preface ..........................5 1 Introduction ........................6 1.1 Brief Introduction ....................... 6 1.2 Product Properties ......................6 1.3 Product identity definition ....................7 2 Product Specification ....................7 2.1 Size and Weight ........................7 2.2 Performance Parameter .................... -
Page 3: Statement Of Law
Copyright of this document belongs to HINAESS TECH CO.,LTD. No part of this documentation maybe excerpted, reproduced, translated,annotated or duplicated in any form or by any means without the prior written permission of HINAESS TECH CO.,LTD. All Rights Reserved. This product complies with the design requirements of environmental protection and personal safety. -
Page 4: Safety Precautions
PowerGem Plus User Manual Safety Precautions Warning Please do not put the battery into water or fire, in case of explosion or any other situation that might endanger your life. Please connect wires properly while install, do not reverse connect. -
Page 5: Preface
PowerGem Plus User Manual Preface Manual declaration PowerGem Plus Li-ion(LFP) battery energy storage system can provide energy to users through parallel combination. And it can not be used in series. This user manual details the basic structure, parameters, basic procedures and methods of... -
Page 6: Introduction
PowerGem Plus battery system is a standard 14.336kwh battery unit, customers can choose a certain number of PowerGem Plus according to your needs, parallel them to create a larger capacity battery pack. This product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life. -
Page 7: Product Identity Definition
PowerGem Plus User Manual 1.3 Product identity definition Battery voltage is higher than safe voltage, direct contact with electric shock hazard. Caution fire. Flammable and Explosive. The scrapped battery cannot be put into the garbage can and must be professionally recycled Read the user manual before using. -
Page 8: Product Specification
PowerGem Plus User Manual 2 Product Specification 2.1 Size and Weight Table 2-1 PowerGem Plus Device size Nominal Nominal Product Max.Dimension Weight Voltage Capacity PowerGem Plus DC51.2V 280Ah 900×475×237.5mm ≈113kg 2.2 Performance Parameter Table 2-2 PowerGem Plus performance parameter Item... -
Page 9: Interface Definition
PowerGem Plus User Manual 2.3 Interface Definition This section elaborates the interface functions of the front interface of the device. Figure2-1 The sketch of interface. 6 7 8 9 10 Table 2-3 Interface Definition Item Name Definition You need to press down it to wake up BMS. -
Page 10: Dip Switch Definition And Description
PowerGem Plus User Manual 2.3.1 DIP switch definition and description Table 2-4 Interface Definition DIP switch position Most of the time keep them 000000 for both master and slaves. Only need to dial for some special protocols. 2.3.2 Communication port and cable pinout definition... -
Page 11: Led Indication
PowerGem Plus User Manual 2.3.3 LED indication Table 2-6 LED status indicators Status ALARM SOC1 SOC2 SOC3 SOC4 Normal Flash1 According to SOC,every led Alarm(high temp, indicates 25% SOC（Flash2） Flash1 Flash3 high current etc.) Over-charge Protect Flash1 Charge Other failure... -
Page 12: Battery Management System(Bms)
PowerGem Plus User Manual Note: The buzzer sound alarm setting can be manually turned off on the monitor software, and the factory default is on. 2.4 Battery Management System(BMS) 2.4.1 Voltage Protection Low Voltage Protection： When battery Min.cell voltage or total voltage is lower than the rated protection value, the over- discharge protection will be activated, and the buzzer on BMS will make an alarm sound. -
Page 13: Other Protection
PowerGem Plus User Manual 2.4.4 Other Protection Short Circuit Protection： Each time when short circuit appears,BMS will recover after 1 min automatically ,after 4 times it will be locked,then you need to check the connection,and restart SW to release.Charge the battery also can release the locked state. -
Page 14: Tools And Data
PowerGem Plus User Manual 3.1.2 Tools and data Tools and meters that may be used are shown in table 3-1. Table 3-1 Tool instrument Name Screwdriver Multimeter Cable tie Insulation tape Caution DC breaker or fuse is necessary between battery and inverter,you must prepare one in advance,and also it must be bigger enough to meet the Max.current. - Page 15 PowerGem Plus User Manual Pack list Item Specification Quantity Figure Battery-Hi5 51.2V/100Ah Bracket1 Wall-mounted Bracket2 Ground Foot Bracket3 Wall-hook Power cable- positive /50mm /L1500mm Power cable- Black negative /50mm /L1500mm Standard comm Black /L1500mm cable Ground cable L500mm,4mm² Expansion bolt...
-
Page 16: Engineering Coordination
PowerGem Plus User Manual 3.1.5 Engineering coordination The following items should be noted before construction: Power line specification. The power line specification shall meet the requirements of maximum discharge current for each product. Mounting space and bearing capacity. Make sure that the battery has enough room to install, and that the brackets have enough load capacity. - Page 17 PowerGem Plus User Manual Accessories:(Optional) Cables: Bracket1: Bracket2: Bracekt3: Bolt Screw1: Screw2: 1. Connect the Bracket2 to Bracket1 firstly,use 4*Screw1 to fix 2. Place the bracket1 against the wall and mark the coordinates of the 6 holes.Drill holes for the M10*80 bolts, and then bolt the Bracket1 to the wall .
-
Page 18: Electrical Installation
PowerGem Plus User Manual 4. Hang the battery on the stand 5.Connect the Screw2 on the sides of Bracket1 to fix it with Battery,you can also connect ground cable on the one side. 3.2.1 Electrical installation Before connecting the power cables, use multimeter to measure cable continuity, short circuit, confirm positive and negative, and accurately mark the cable labels. - Page 19 PowerGem Plus User Manual Voltage: U>60V Inverter power Current: I = DC breaker is necessary to be installed between the battery module and the inverter, as shown in Figure 3-3: Inverter DC Breaker Communication cable-to inverter Power cable- Positive Communication...
-
Page 20: Battery Parameter Settings On The Inverter
PowerGem Plus User Manual Note: 1. Each pair of power cable, its limited continuous current is 200A, if the inverter Max. work current is more than 200A, please add power cables according to the proportion. 2.After power cables connection is OK,you’d better turn on the breaker firstly before turning on the batteries’... -
Page 21: Alarm Description And Processing
When protection mode is activated or system failure occurred, the alarm signal will be given through the working status indicator on the front panel of the PowerGem Plus. If the fault such as single cell over voltage, charging over-current, under-voltage protection, high-temp protection and other abnormalities which affects the output, please deal with it according to Table 4-1. - Page 22 HINAESS TECH CO.,LTD Address: 3rd Floor, Building C5, Standard Workshop Phase II, Electronic Information Industrial Park, Industrial Avenue, Gui'an New District, Guizhou Province Email:info@hinaess.com Web:www.hinaess.com...
