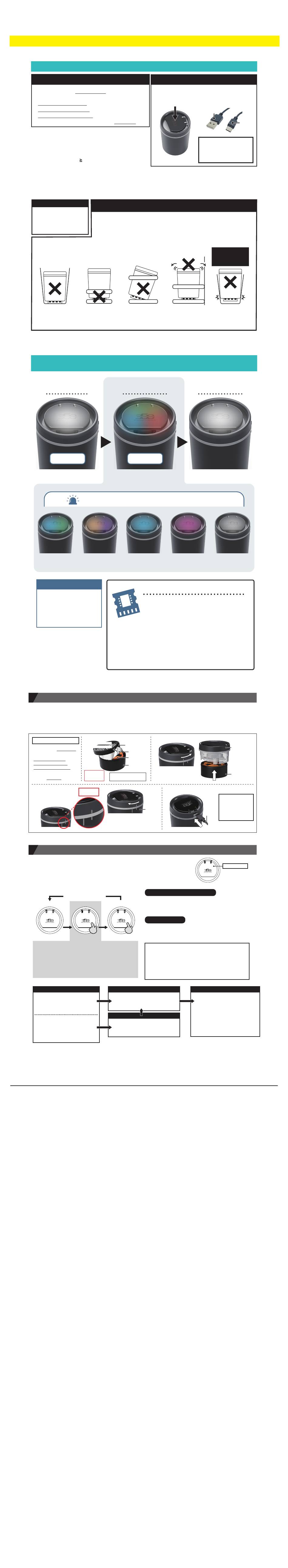

DIAX DC 360 Quick Start Manual

DC 360 DIFFUSER
DC 360 ディフューザー
The warranty of this product is valid only in Japan.
●Power supply： ＋DC5V 1A
●Power consumption：
Turbo-mode/1.2W
Normal-mode/0.5W
Standby-mode/0.1W
●Operating temperature range : 0〜40℃
●Avoid excessive heat, humid and direct sunlight.
●USB port with power supply of +DC5V 1A
or above is required. See the manual of the audio
device or the vehicle and check the spec of the
USB before use.●Compatible with cup holders
with a diameter of 80mm.●In order to use
DC360 Diffuser, DC360 Cartrige sold separately
is needed.●Use this product in vehicles equipped
with remote engine starters or similar equipments
may shorten the expiry of the scent.
UNIT (incl. DC360 Cartridge)
220
weight approx.
112
height approx.
diameter approx.
Too deep
Depth over
112mm.
Start with
Turbo-mode
1 min.
①White (solid)
③Blue & Green
gradation
Estimated replacement period
３
※approx. weeks
※Durability may change
due to the climate conditions.
I NS T R U C T I O N
①Take off the cap of DC360 Cartridge sold separately and through away. ②Remove the inner-seal. In case a translucent
film remains, remove it. ③Turn and take off upper part of DC360 Diffuser and set DC360 Cartridge firmly.(Figure 2) ④Replace
upper part firmly into lower part.(Figure 3) ⑤Connect USB-C of the provided cable to the port of the unit.(Figure 4) ⑥Place the unit
in a cup holder which holds and keeps the unit stable and straight at all time. ⑦Connect the cable to a USB port in the vehicle.
Specification
Power supply:+DC5V 1A
Power consumption ：
Turbo-mode/1.2W
Normal-mode/0.5W
Standby-mode/0.1W
Operating temperature
range : 0〜40℃
(Figure 3)
※Be sure to set in the
correct position in order
to prevent damages.
OP E R A T I O N MA N U A L
DC 360 diffuser turns on automatically when the ignition is turned on
and start with "Turbo-mode" after completing a self-diagnosis by the
heat detection sensor.*Settings of LED pattern is adjustable while it
is in "Normal-mode".
▼Fan mode / LED pattern
Turbo-mode
１min.
❶White (solid)
❷Full-color gradation ❸Blue & Green gradation
❹Orange & Violet gradation ❺Sky-blue
❻Pink ❼White (dimmed)
○Pressing Select Button switches between LED pattern #2 - 7.
○LED pattern remains in #2 Full-color gradation unless pressing
Select Button.
*LED pattern does not shift automatically between Settings #2 - 7.
Se lf-d ia gn o s is
Within operating
temperature range
Automatically shift to Turbo-mode
Outside of operating
temperature range
LED lighting turns in orange and
the fan stops. With temperature to came
into the operating temperature range,
it activates in Standby-mode.
While DC360 Cartridge sold separately is in use.
CAUTIONS
*For safety reasons, do not operate or handle the unit while driving.
*Do not eat.
*Avoid contact with skin and eyes.
*Keep away from the fire.
*Keep out of reach of children and pets.
*Do not touch or insert fingers into the fan. It may cause injury or
damage to the unit.
*If swallowed, seek medical advice immediately.
*Avoid contact with skin and eyes. In case of contact, rinse effected area
thoroughly with water.
*If you are feeling unwell while using the product, immediately stop using
the product and rest in an well-ventilated area. In case your condition
is not improving, seek medical advice.
●Do not use for any purpose other than specified usage.
●Place the unit where it will not interfere with driver, air bag and safety.
●Do not place this product other than in cup holders.
●Do not place this product in cup holders have keep-warm feature.
●Keep the clearance above the unit ≧50mm to avoide contact interiors
and electronic devices. It may cause staining, crack or other problems.
●Do not block the air intake on the bottom of the unit. It may not work properly.
●Do not expose the unit to heated air. This product does not work
properly if the unit overheats.
●Do not use anything other than DC360 Cartridge sold separately.
●If a leak occurs, clean up immediately; otherwise the contents
may cause staining, crack or other problems.
●Do not use cables other than the provided cable.
●Do not use the provided cable for any other devices.
●When disconnecting USB terminal, do not pull on the cable.
●In case the product does not operate properly due to the nonstandardized
power supply, connect to a USB port with different power supply.
●Change an installation location in case a smart key does not respond
while the unit is on.
●Do not wet, lay, and drop the unit.
●Do not operate with wet hands, attempt to disassemble or modify the unit.
It may cause damage to the unit.
●Due to the properties of the ingredients, it is normal for the color of the tablet
to change. It does not cause any problems for use.
●If the unit gets dirty, wipe gently with soft cloth.
Ch ec k b e fo re pu rch as e
Specification
g
Designed only to be used in cup holders. Do not use
mm
cup holders where the product does not stable in.
79
mm
Check the manual of the cup holder before installing
the product. Do not block the air intake on the bottom
of the unit.
Too sharrow.
Fan mode / LED pattern
②Full-color gradation
6 L E D p a t t e r n s f o r N o r m a l - m o d e
④Orange &
Violet gradation
(Figure 1)
DC360 Cartridge
sold separately
DO NOT
In case a translucent
EAT.
film remains, remove it
Line up two
shorter lines
Turn from shorter line
to longer line. Check if
the upper part is set
firmly.
Back to Turbo-mode
Normal-mode Standby-mode
１hr.
❽White (flash)
Tur bo- mode
Fan: Strong (continuously)
LED: Pattern #1 White (solid)
Standb y-m ode
Fan: In pause
LED: Pattern #8 White (flash)
Scroll down to see English instruction. / 裏書き
Unit
※Button
！C A U T I O N！
May slide-off Oversized
the gap. / Unstable.
Normal-mode
1 hr.
⑤Sky-blue
Memory Function
When LED pattern is in any of
Setting #2 - 7, it can be set up in
a desired pattern by pressing down
the button at the top of the lid
for 3 sec. (1 red flash).
This operation allows it to stay in
the same setting while it is in
"Normal-mode". However, it activates
"Turbo-mode" each time the ignition
is turned on.
(Figure 2)
CAP
INNER-SEAL
TABLET
CONTAINER
Turn the upper part of
the unit in the direction
of the arrow.
(Figure 4)
Lower
part
Settings of LED patterns in Normal-mode
When LED pattern is in any of Setting #2 - 7, it can be set up in a desired pattern
by pressing down the button at the top of the lid for 3 sec. (1 red flash).
This operation allows it to stay in the same setting while it is in "Normal-mode".
However, it activates "Turbo-mode" each time the ignition is turned on.
*Settings of LED pattern is adjustable while it is in "Normal-mode".
Reset of LED patterns
Pressing down the button at the top side for 3 sec.
again (3 red flashes) resets LED pattern to factory setting and
will activate Setting #2 while in "Normal-mode" when it turns on
next time.*Settings of LED pattern is resettable during in any modes.
・Do not operate the product while driving.
・The product cannot be fixed in "Turbo-mode".
・The fan and LED lighting will also be turned off
when the ignition is turned off.
・In some type of vehicles, this product may not be turned off
even if the engin, electric motor or ACC are turned off.
・In order to stop the product completely, disconnect the cable.
When disconnecting the cable, be sure to turn off
the ignition of the vehicle.
CONTENTS
Cable
(80cm)
USB terminal
※DC360 Cartridge is
sold separately.
※Check the manual of
this product.
Recommended
size of cup holder
diameter over 80mm
Blocking
the air flow.
To be
Standby-mode
⑧White (flash)
⑥Pink ⑦White
(dimmed)
Upper part
Insert DC360
Cartridge from
the bottom till it
clicks.
DC360
Cartridge
※When disconnecting
USB terminal, do not
pull on the cable.
USB
※Do not use cables
Type-C
other than the provided
cable
cable.
Select button
Pressing the button
switches between
LED patterns.
N or m al - m od e
Fan: Shift between pause
and blow.
LED: Start with Pattern #2
which can be adjusted
between Pettern #2 - 7
by pressing the button
at the top side.
USB
Type-C
