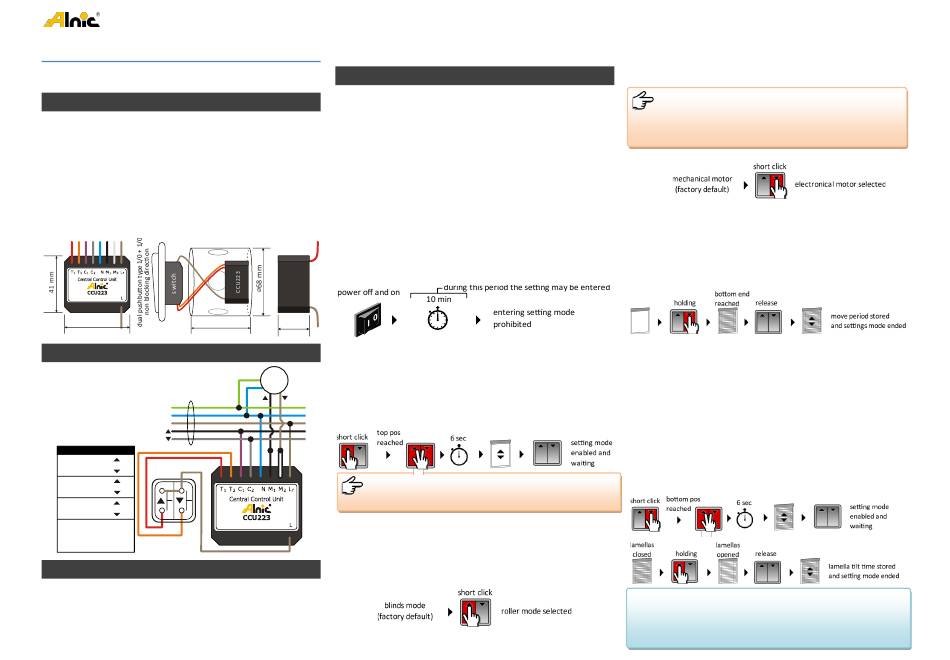

Alnic CCU223 Installation Manual

Central Control Unit
Installation Manual CCU223
Authorized personnel only
Product Description
CCU223 is an electronic driver for 230 VAC motors powering
electrical blinds, rollers, windows, garage doors. The motors are
typically single-phase asynchronous devices with mechanical or
electronic end switches. The devices can be controlled
individually from local switch, per group or centrally. The driver
is designed to fit under a wall-mounted switch button. It can be
installed in external environments inside protective boxes or in
proximity of the roller motor thanks to its polyurethane
protective casing.
mm
dept min
Electrical Connection
cable t pe
local
direc on
local s itc
control
central
direc on
control
motor
direc on
output
used suppl
neutral ire
non used suppl
Technical Information
•
Power supply: 230 VAC / 50 Hz
•
Fuse: 3,15 A (Lf input) non-replaceable
•
Input Voltage (T1, T2, C1, C2): 230 VAC
•
Nominal Power: 3,1 VA
•
Max inductive load power: 750 VA
•
Switch buttons shall be of type 1/0+1/0 (dual-button
without mutual direction blocking!)
•
In case of blown fuse, the supply line can be connected to
L input (external fuse must be provided)
Settings
CCU223 offers functionality which increases user control
comfort. To enable all features, the following items must be
properly set:
1) Choose the device type (blinds or roller)
2) Choose the motor type (electronic vs mechanical)
3) Set the motor move period (per window size)
4) Adjust the lamella tilt time (optional)
All settings are done via local switch.
Before entering the setting...
CCU223 can enter the setting mode only in the first 10 min after
the power up. If this period has elapsed, the unit must be
power cycled, see
STEP 1
mm
mm
Entering the setting mode
First ensure the controlled device is at its top position by a
short button press UP. Then press both buttons and hold down
for at least 6 sec. The blinds will move down and up shortly to
indicate the setting mode was entered. Release the buttons.
STEP 2
HINT: If setting a higher number of devices, you can perform
STEP2 with all devices. The devices will remain ready in the
setting mode until a local switch button is pressed.
Choosing the device type
In case of blinds (factory default), skip
a controlled device is a roller or other device without tilting
lamellas, proceed with
STEP 3 (skip if the controlled device is blinds)
.
STEP 1
and go to
STEP 3 STEP 4
STEP 3 followed by STEP 4 .
Choosing the motor type
Blinds motors are available in two types:
1) Electronic end switches (eg. Somfy WT)
2) Mechanical end switches (eg. Geiger GJ)
Perform only in the case of electronic motor.
STEP 4
HINT: How to identify the motor type? Try "Stepper Mode" see
User Manual – Basic Control Commands. If the blinds move in
steps, then STEP 4 can be skipped. If the motor does not move during
stepping, it signifies an electronical end switch motor type. Then
must be set to "electronical".
STEP 4 (skip in case of mechanical end switches motor)
Setting motor move period
Press and hold down direction for the entire time the controlled
device is in motion. Release the button only after the motor
end switch ceases the motion (as shown in
indicates it has been set by a short move up and down.
STEP 5
Lamella tilt time adjustment
The lamella adjustment can be skipped in most cases. To find
out if an adjustment is needed make 4 short clicks of DOWN
button. The blinds should (when reaching the bottom end) fully
open the lamellas. If the countermovement of the motor is
insufficient, adjust the tilting time -
Execute STEP 1 to reset the unit. Short press down button to
reach the bottom end, enter setting mode and press and hold
UP button until the lamellas are fully open and then release the
button (shown in ).
STEP 6
STEP 6
. If
Factory Defaults
To reset the unit to factory defaults first power cycle (STEP 1) and then
hold down both buttons for 12 sec until the device indicates it by the
second up and down movement.
STEP 4
). The device
STEP 5
.
STEP 6
