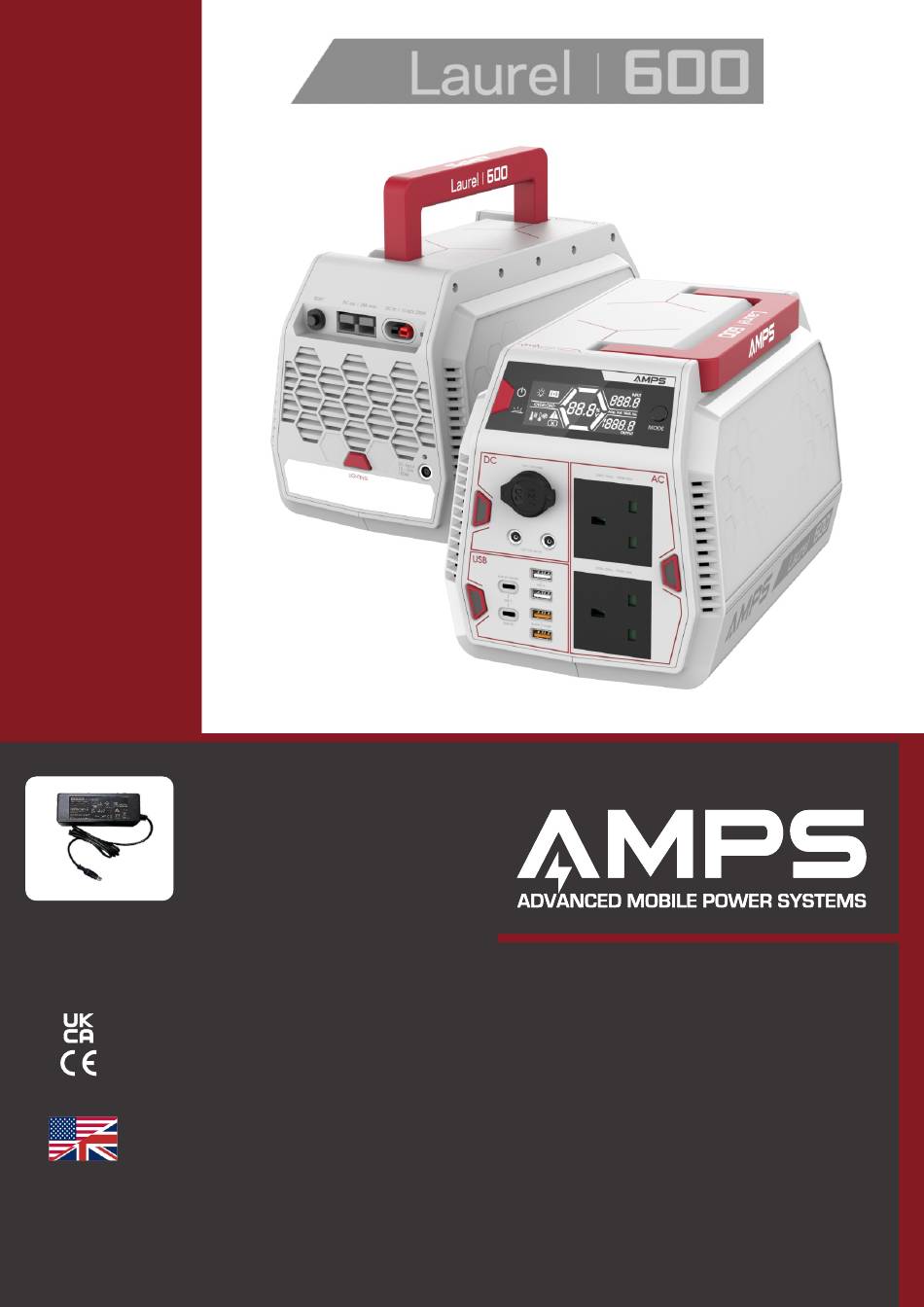

Part No:
L600
3A Charger Supplied
RoHS
compliant
www.ampsystems.co.uk
Portable Power Supply
Small, lightweight and robust
Ÿ
12.8V 40Ah LiFePO
Ÿ
600W | 230VAC Pure Sine Wave inverter
Ÿ
15A DC DC charger built in w/ Solar input (up to 60VDC)
Ÿ
USB-C 65W PD IN + OUT (can be charged up with USB-C)
Ÿ
15W Wireless charging
Ÿ
Onboard LED lamp
Ÿ
25A DC output capable - with over current protection
Ÿ
2x Universal Sockets
Ÿ
Vivid LCD screen
Ÿ
- 512Wh battery
4
L600
Advertisement
Summary of Contents for AMPS Laurel L600
- Page 1 Part No: L600 3A Charger Supplied L600 Portable Power Supply Small, lightweight and robust Ÿ 12.8V 40Ah LiFePO - 512Wh battery Ÿ 600W | 230VAC Pure Sine Wave inverter Ÿ RoHS 15A DC DC charger built in w/ Solar input (up to 60VDC) Ÿ...
- Page 2 If you are unsure of any step or guideline then please consider reaching out to AMPS via our web contact form or our phone service and we shall offer our support.
- Page 3 INTRODUCTION What’s What LCD Display Power Button Mode Button AC Socket 230VAC | 50Hz DC Button (for DC outputs) AC Button (for AC outputs) AC Socket USB Button 230VAC | 50Hz (for DC outputs) Power Button Press to turn on all the DC output ports. Long press to power off the unit and lighting. LCD Display This shows battery state of charge, input and output power.
- Page 4 INTRODUCTION What’s What 25A Anderson output Interrupter MPPT | DC DC input Lighting On Button DC input 100W Lighting | Torch Interrupter This button shall jut out when the current being pulled through the 25A Anderson exceeds 25A. Investigate why, then press the button in to reset. 25A Anderson output This connector (50A standard Anderson style) - allows a 25A direct connection to the battery.
- Page 5 INTRODUCTION Several ways to charge Laurel There is a total of 4 different ways to charge the Laurel 12V to 12V 20A DC DC charger BB1210 | BB1215 | BB1220 Solar Panels Mains Charger - Provided DC DC charger If you have a DC DC charger, this can be used to charge up the Laurel, when driving. Simply plug it into where the solar is connected.
- Page 6 Understanding the screen The Screen Laurel on | off MODE button, toggles through display. Repeat pushing to button toggle through different displays Induction Charger State of Charge indicator Segments 6/6 Display Screen Torch | Light Input Value indicator Input / Output units Output Value Battery Temp...
- Page 7 Troubleshooting Faults - On Screen OVERLOAD shall be displayed if the AC output power of the inverter exceeds the maximum power rating. If above 600-700W+ is being drawn from the AC sockets. Or, if there is a short circuit. Reduce power consumption.
