- Page 1 BATTERY CHARGER 9 Stage Instruction Manual Model: RBC25SS3 RBC5SS3 Please read this manual carefully before using and retain for future reference.
- Page 2 RBC25SS3 RBC5SS3 Staple your receipt here in order to aid your warranty or for future reference.
-
Page 3: Important Safety Instructions
RBC25SS3 RBC5SS3 INTRODUCTION The Repco 2.5 Amp and 5 Amp Automatic 9 Stage (3) times to recondition and recharge a battery in Battery Chargers are designed to efficiently poor condition, or that has been left idle or stored charge most battery types; Lead-acid, Calcium*, for a prolonged period;... - Page 4 RBC25SS3 RBC5SS3 FEATURES MICROPROCESSOR TECHNOLOGY LCD DISPLAY / BACKLIGHT The latest technology in battery chargers converts A Liquid Crystal Display (LCD) provides a clear, 240VAC to 12VDC charging power using electronic easy-to-read display and a backlight provides components, unlike traditional battery chargers visibility in poor light or when dark.
-
Page 5: Specifications
30 - 100 Reserve Capacity (A) 15 - 40 25 - 85 50 - 170 *Suitable for maintenance charging of calcium batteries. For recovery charging of calcium batteries, use Repco 9 Stage Intelligent Microprocessor Controlled Battery Chargers: RBC8SS3, RBC16SS3 or RBC25HDSS3. - Page 6 RBC25SS3 RBC5SS3 CHARGE CYCLES Volts The following tables detail the VOLTAGE (Volts) and CURRENT (Amps) applied to the battery over time. These different settings and charge values are necessary to achieve maximum battery charge and optimise battery condition. The Charge Cycle Table (below) provides the characteristics of each stage in the Charge Cycle.
- Page 7 RBC25SS3 RBC5SS3 CHARGE CYCLES Stage Function Description The charger will check the connection and evaluate the battery. If the connection is wrong or the battery is bad, Er1 or Er2 will be shown Diagnosis and the charge will not proceed. If connections are correct, and a chargeable voltage identified, the battery charger will proceed to the next charging stage.
-
Page 8: Operation
OPERATION PLACEMENT / MOUNTING Note - When installed into caravans, motorhomes, Repco Battery Chargers are designed for indoor, 4WD’s or similar, the charger should be mounted in out of weather use only. The position selected for a well-ventilated location, and protected from rain, the charging of the battery must be cool, dry, clean water, or moisture at all times. -
Page 9: Charging Instructions
RBC25SS3 RBC5SS3 CHARGING INSTRUCTIONS Note - BEFORE attaching the battery clamps, Negatively Earthed (Most Vehicles) disconnect (unplug) the battery charger from any Note - Negatively earthed vehicles usually have a supply socket outlet, or ensure the mains supply cable (usually BLACK or GREEN) connecting the power is switched to OFF. - Page 10 RBC25SS3 RBC5SS3 STEP 5 - SELECT VOLTAGE / OPTION Using the table below, determine the charge option for the battery to be charged and press the “MODE” button to select the correct setting. Note - If the battery charger does not detect a properly connected battery, or detects an incorrect battery voltage, the “Er1”...
- Page 11 RBC25SS3 RBC5SS3 FAQ’S Q. What does Er1 signify? Q. The charger is making a “clicking” sound, is this normal? A. Incorrect connection – check and reconnect. A. Switch mode chargers will often produce a Q. What does Er2 signify? clicking sound as the microprocessor relay A.
- Page 12 ® Repco’s products may include a warranty against defects for the period stated on the product, in addition to other rights you have at law. Return any defective product and proof of purchase to Repco for assessment, repair or replacement.
Need help?
Do you have a question about the RBC25SS3 and is the answer not in the manual?
Questions and answers
How do I know which of the 4 battery types on the Mode Button is correct for my lead acid car battery?
To select the correct battery type for a Repco RBC25SS3 lead acid car battery using the Mode Button, press the Mode Button repeatedly until the display shows the correct battery type or charging mode that matches your battery (e.g., AGM, Wet Cell). Refer to the charger's display and user guide to confirm the selected mode before starting the charge.
This answer is automatically generated

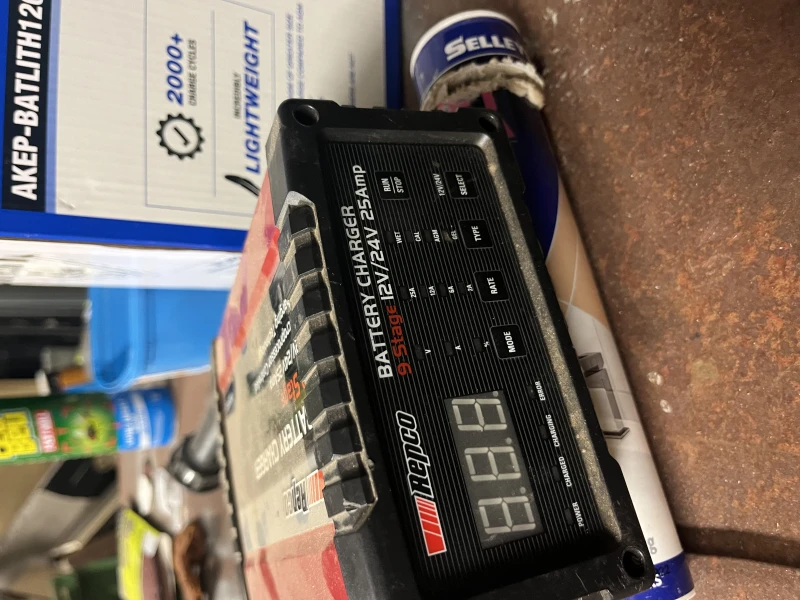

Can I use this charger to charge a life pod 120 ah lithium battery
