Summary of Contents for EGGKITPO EGEF-10L

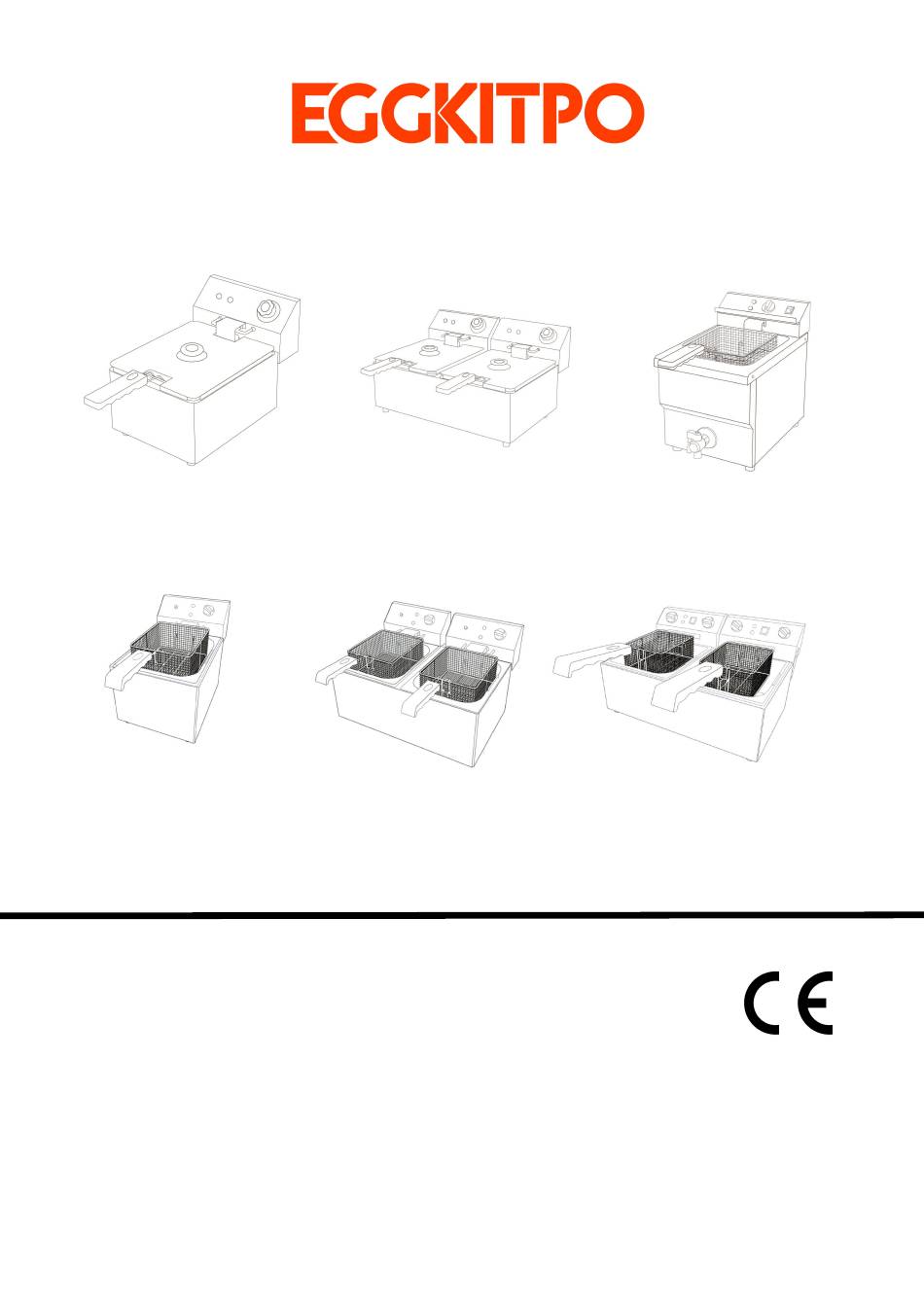

- Page 1 DESIGNED AND MANUFACTURED FOR COMMERCIAL KITCHENS EGGKITPO Commercial Deep Fryer Model : EGEF-10L EGEF-10L-2 EGEF-12L EGEF-12L-2 EGEF-101V EGEF-101V-2 EGEF-12V EGEF-12V-2...
- Page 2 and “Bold Please carefully read this manual before using this product.Please pay extra attention to those wording in “RED” Black”. Make sure you are familiar with all of the safety and usage instructions. Keep this manual in a safe place for future reference. WARNING: The installation, maintenance and servicing of this product must be carried out by a qualified technician.
-
Page 3: Notes On The Plug
In addition to that,All EGGKITPO deep fryers has a built-in thermal cut-off device that will shut-off the fryers automatically to avoid overheating.Manual reset please refer to troubleshooting “Temperature safety reset switch”. -
Page 4: Features And Controls
If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances. Features and Controls Electric Fryer Parts EGEF-10L: 1. Power indicator (green) 2. Thermostat indicator (yellow) 3. - Page 5 Electric Fryer Parts EGEF-101V: 1. Temperature control knob 2. Power indicator (green) 3. Thermostat indicator (yellow) 4. Timer on-off switch 5. Timer control knob 6. Reset button-located on the back of the fryer 7. Basket hanger 8. Fryer head hanger 9.
-
Page 6: Specifications
Specifications Baskets Model Voltage Power Plug Temp. Temp. Oil Tank Overall Number Controls Range Capacity Size（mm） EGEF-10L 120VAC 1.75KW NEMA 5-15P 50~200℃ 265*415*290 EGEF-10L-2 120VAC 1.75KW+1.75KW NEMA 5-15P(2) 50~200℃ 10L+10L 550*415*290 EGEF-101V 120VAC 1.75KW NEMA 5-15P 50~200℃ 265*415*290 EGEF-101V-2 120VAC 1.75KW+1.75KW... - Page 7 RISK OF SEVERE BURNS. Hot oil is capable of causing severe burns. For fryer with detachable oil tank models(EGEF-10L,EGEF-10L-2,EGEF-101V,EGEF-101V-2,EGEF-12LEG,EF-12L-2) only: 12a. When temperature of the oil cools down, remove the heating element cover, control box and element then pour the old oil out of pot.
-
Page 8: Helpful Hints
position. The micro-switch works at once. It cuts off power to protect personal safety and to prevent the electric heating tube being burned out. Care, Maintenance, Storage and Transportation IMPORTANT: Always unplug fryer from the mains power socket and allow to cool completely before cleaning. Take caution: Oil can stay hot for 6-7 hours. -
Page 9: Troubleshooting
• For best results when frying doughs or foods dipped in a liquid batter, place the foods into the basket first and then lower the frying basket into the hot oil.Oil • WARNING! Never, under any circumstances, add water or any other liquid to the oil. •... - Page 10 2. When the head (F) is in the up position or removed from the unit and pad, (E) switch goes to the “ OFF ” (D) position and cuts power to the heating element.
- Page 11 Other Possible Troubleshooting Chart Problem Cause(s) Solution(s) Power indicator not on 1. Plug is not in socket 1. Remove plug and insert correctly. 2. Replace suitable fuse when fryer properly. plugged in. 2. Fuse has blown Thermostat indicator not 1. Safety overheat stat 1.
