Step 1: Assemble straight poles by
pressing and pushing together.
Step 5: Zip the edge of graphic
beyond the center point as shown
to hold the center pole in place. Zip
the remaining side and bottom to
meet at the corner.
Step 2: Connect all corner sections
to curved and straight sections
of the frame by matching shape
symbols on pipes.
LIGHTS:
(OPTIONAL) Position as desired
and tighten knob to hold in place.
WARNING! Over tightening may
cause damage to fabric image.
Step 3: Insert feet into base to
complete assembled frame shown.
Step 6: Complete.

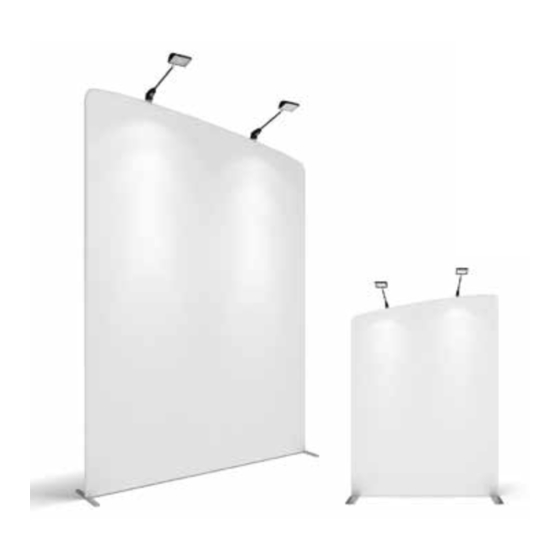

EL-TF-2000C-L & R
Step 4: Unzip print and lay image
face up. Slide print onto frame like
a pillow case.
Advertisement
Summary of Contents for INFINITY EXHIBITS EL-TF-2000C-L
- Page 1 EL-TF-2000C-L & R Step 1: Assemble straight poles by Step 2: Connect all corner sections Step 3: Insert feet into base to Step 4: Unzip print and lay image pressing and pushing together. to curved and straight sections complete assembled frame shown.
- Page 2 EL-TF-2000H Step 1: Assemble straight poles by Step 2: Connect all corner sections Step 3: Insert feet into base to Step 4: Unzip print and lay image pressing and pushing together. to curved and straight sections complete assembled frame shown. face up.
- Page 3 EL-TF-PANEL CONNECTION FEET CLAMPS EL-TF-P-22E EL-TF-P-22R EL-TF-P-22L EL-TF-P-22E...
