Summary of Contents for AUTOZON AZ-SL100

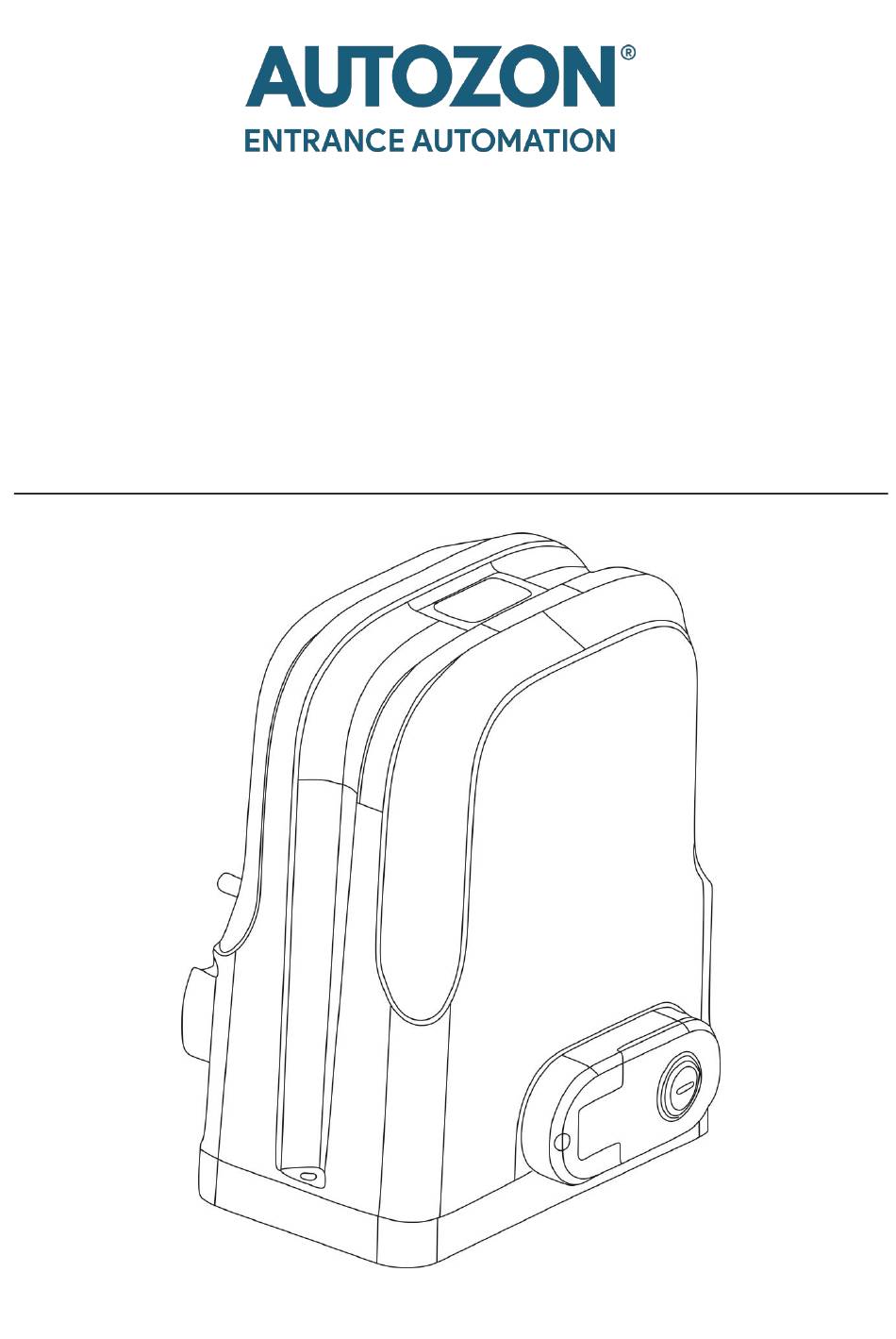

- Page 1 Sliding Gate Operator AZ-SL100/ 600KG User Manual...
-
Page 2: Safety Instruction
Dear users, Thank you for choosing this product. Please read the manual carefully before assembling and using it. Please do not leave out the manual if you send this product to a third party. 1. Safety Instruction Please ensure that the using power voltage matches with the supply voltage of gate opener (AC110V or AC220V);... - Page 3 2. Packing List (standard) Picture Name Quantity Main engine Manual release key Remote control Spring limit switch accessories box / Magnetic limit switch accessories box Spring limit switch block / Magnetic limit switch block Outer hexagonal bolt M8 Foundation bolt M8 Spring limit switch block mounting screw M6X10 / Magnetic limit switch block...
-
Page 4: Technical Parameters
Nylon rack 1m/pc Keypad（different models are optional） Flash lamp（different models are optional） （different models Photocell 1pair are optional） 3. Technical parameters Model AZ-SL100 Power supply 220VAC/50Hz Motor power 280W Gate moving 13m/min speed Maximum weight 600Kg of gate Remote control ≥50m... -
Page 5: Installation
10.10Kg 4. Installation AZ-SL100 sliding gate opener is applicable to gate weight less than 600kg, and length of the sliding gate should be less than 8m. The drive mode adopts the gear and rack transmission. This gate opener must be installed inside the enclosure or yard for protection. - Page 6 4.2 Size of main engine and accessories 4.2.1 Size of main engine Figure 2 4.2.2 Size of mounting plate 204±0.3 8× 10 Φ Figure 3 4.3 Installation procedures 4.3.1 Preparation work before installation Please ensure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can glide back and forth smoothly when moved by hands before installing the gate opener.
- Page 7 Cable installation Please bury the motor & power cable and controlling cable with PVC tube, and use two PVC tubes to bury (motor & power cable) and (controlling cable) separately, so as to guarantee normal operation of the gate opener and protect the cables from damages. Concrete pedestal Please cast a concrete pedestal with the size of 400mm x 250mm and depth of 200mm in advance, Please verify whether the distance between the...
- Page 8 Figure 5: Turn on 90° 4.3.3 Gear rack installation ⚫ Fix the mounting screws to the rack. ⚫ Put the rack on the output gear, and weld the mounting screw to the gate (each screw with one solder joints firstly). ⚫...
- Page 9 The fit clearance of output gear and rack is shown in Figure 7 below: Figure 7 Warnings · To ensure safety, install safety stop blocks on both ends of the rails to prevent the gate out of the rail. Before installing the main engine, make sure that the safety stop blocks are in place and whether it has the function of preventing the gate from moving out of the rail and out of the safety range.
- Page 10 Figure 8 The installation of spring limit switch stop block is shown in Figure 9: M6×10 M6×10 M6×10 M6×10 Figure 9...
- Page 11 Magnetic limit switch - The installation site of magnetic limit switch is shown in Figure 10: Figure 10 The installation of magnetic limit switch block is shown in Figure 11: Left side mounting Right side mounting M6×18 M6×18 M6×18 M6×18 Figure 11 Note: The default setting is right side mounting.
-
Page 12: Control Board Wiring
5. Control board wiring 5.1 The opener should be install on the left side of the sliding door because it is set as clockwise when delivery . If needs to install on the right side of the sliding door ,the DIP switch 4 should be changed into the opposite side. - Page 13 5.4.3 External control (COMMAND) interface: control switch connects normally open switch. 5.4.4 External safety edge interface (8K2): safety edge interface. If you don't need to install it, you need to connect an 8.2KΩ resistor between the 8K2 interface and COM (it has been connected at the factory).
- Page 14 reverse to limit point if photocell signal disconnect when door closing. If no need of using photocell protection, make the connector of photocell short circuit with terminated line(the connector is short circuit when leave factory). 6.6 Pedestrian Mode：The NO4 button of the transmitter is for Pedestrian Mode，press No 4 button when the motor is not working, then the motor will open for 10 seconds and stop about 1.4 meters.(soft start 1 second, quick running 6 seconds, soft stop 3 seconds) (Note: Pedestrian Mode is only for 4 buttons transmitter , DIP2 is set to ON.)
-
Page 15: Maintenance
7.2 Single button control process (DIP 3 at ON position) Description: Single button control , press-open-press-stop-press-stop; Only the learned button is effective in the transmitter, original button is not effective any more when a new button has been learned in the same transmitter (For example, button 1 was learned firstly, button 2 or 3 has been learned of the same transmitter afterwards , then button 1 was not effective any more) 8. -
Page 16: Exception Handling
1. remove the resistance 2. resistance potentiometer setting too 2. reset the resistance potentiometer low or changes after long time The interpretation and ownership of this manual belong to AUTOZON company. Any change of the product can be without prior notice.
