User Manual

Product Manual | Edition | Release 092023| PPU-PVC-PC3-108P-12X

PeopleLink iCam WHD 1080 12X USB

PeopleLink

(English Version)

Please read this Manual before setting up iCam WHD 1080 and stick to

its requirements strictly for Safety reason. Suggest you save this manual

for further inquiries reference.

Table of Contents

Need help?

Do you have a question about the iCam WHD 1080 12X USB and is the answer not in the manual?

Questions and answers

Summary of Contents for PeopleLink iCam WHD 1080 12X USB

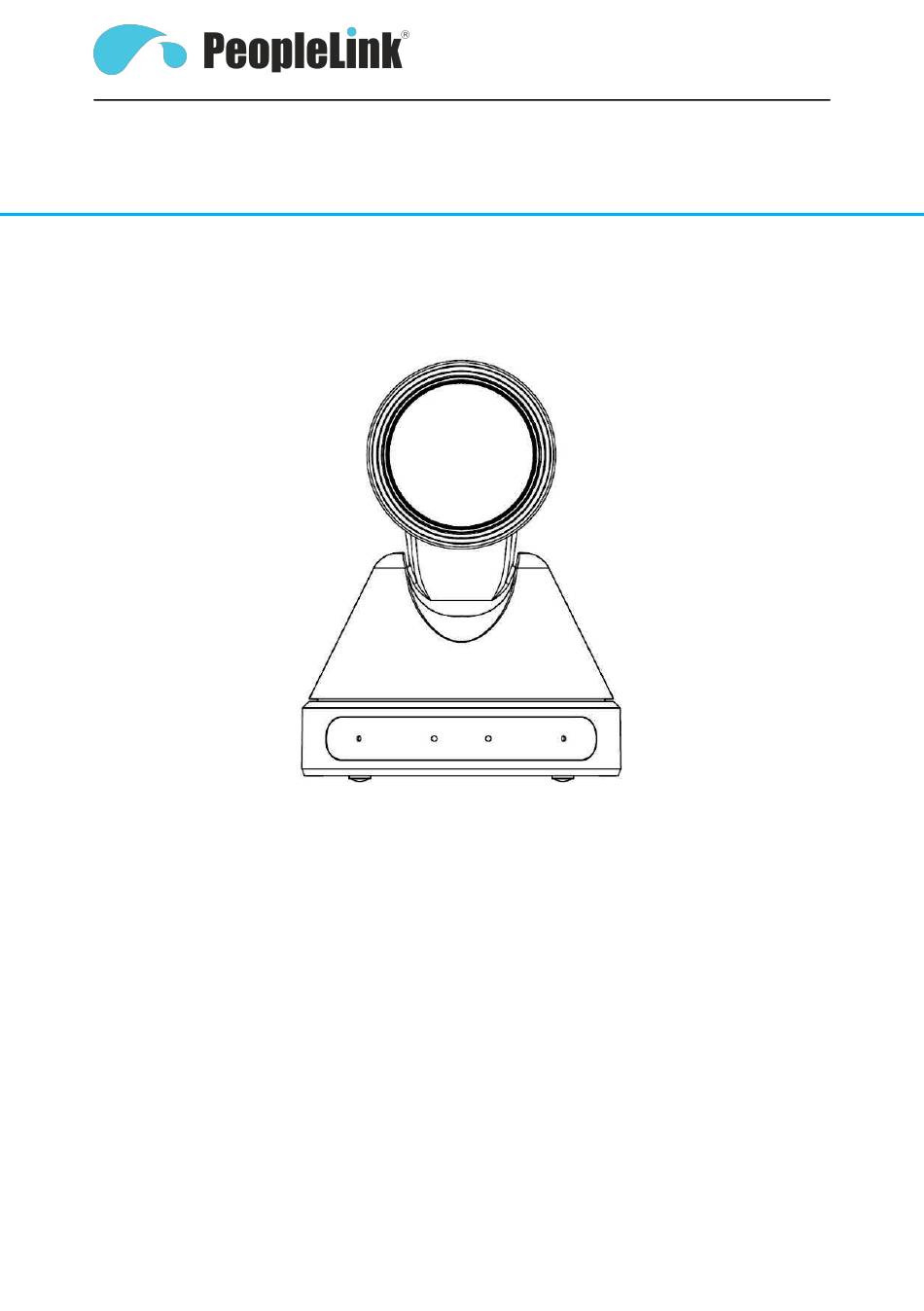

Page 1 User Manual Product Manual | Edition | Release 092023| PPU-PVC-PC3-108P-12X PeopleLink iCam WHD 1080 12X USB PeopleLink (English Version) Please read this Manual before setting up iCam WHD 1080 and stick to its requirements strictly for Safety reason. Suggest you save this manual...
Page 2 Therefore, you must treat the software like any other copyrighted material (e.g., a book or sound recording). Every effort has been made to ensure that the information in this manual is accurate. PeopleLink, is not responsible for printing or clerical errors. Information in this document is subject to change without notice. www.peoplelinkvc.com...
Page 3: Table Of Contents
Contents Note ..............................4 Supplied Accessories ........................4 Quick Start ............................. 5 Features ............................6 Product Specification ........................7 Main Unit ............................9 Size ............................... 10 IR Remote Controller Explanation .................... 11 RS-232 Interface ..........................13 VISCA Network Configuration ....................14 Serial Communication Control ....................15 Command List ..........................
Page 4: Note
Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.
Page 5: Quick Start
Quick Start Step1. Please check connections are correct before starting Step2. Power connected to the Camera, the front panel power lamp light. Step3. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the process of initialization is finished.
Page 6: Features
Features  Completely New Look Designed with worm gear transmission, completely new look, mini size, two colors for choosing from.  Full Function USB Interface Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC,UAC protocol. ...
Page 7: Product Specification
Product Specification Model Name PeopleLink iCam WHD 1080 12X USB Camera 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, Video System 720p/25 Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 Digital Zoom...
Page 8 720p/30, 720p/25USB2.0: 1080p/30, 1080p/25, 1080p/15, 1080p/10, 720p/30, 720p/25, 960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50 Audio on USB Support USB Video UVC 1.0 ~ UVC 1.5 Communication Protocol UVC PTZ Support Input/Output Interface USB Interface 1xUSB3.0: Type B female jack Audio Interface 1-ch: 3.5mm Audio Interface, Line In 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/ Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA...
Page 9: Main Unit
Main Unit 1. USB3.0 4. RS232 out Interface 2. Line in Interface 5.DC IN 12V jack 3. RS232 IN Interface www.peoplelinkvc.com P a g e...
Page 10: Size
Size www.peoplelinkvc.com 10 | P a g e...
Page 11: Ir Remote Controller Explanation
IR Remote Controller Explanation 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 2. Position Buttons To set preset or call preset 3.
Page 12 Press [MANUAL] adjust the focus on the center Note: If a light behind the subject, the subject will of the object manual become dark. In this case, press the backlight ON / MANUAL button, and adjust it with [Far] (Focus OFF button.
Page 13: Rs-232 Interface
RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC 8.NC 8.NC...
Page 14: Visca Network Configuration
VISCA Network Configuration 14 | www.peoplelinkvc.com P a g e...
Page 15: Serial Communication Control
Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control: The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. Start bit: 1 bit.
Page 16: Menu Setting
Menu Setting EXPOSURE 1.MENU Mode Auto Press [MENU] button to display the main ExpCompMode menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the ExpComp [HOME] button to enter the corresponding Backlight sub-menu.
Page 17 DRC: DRC strength, Optional items: 0 ~ 8. COLOR Bright: Intensity control, Optional items: WB Mode Auto 00~17. (Effective only in Bright mode) Anti-Flicker Flicker: Anti-flicker. Optional RG Tuning items: Off, 50Hz, 60Hz (Effective only in Auto, BG Tuning Bright mode) Saturation 110% Meter: Optional items: Average, Center,...
Page 18 Flip-H: Image flipped horizontally. Optional AWBsens: The white balance sensitivity, items: On, Off. Optional items: Normal, High, Low. Flip-V: Image Flip Vertical. Optional items: On, Off 4. IMAGE B&W-Mode: Image color. Optional items: On, Off Move the cursor to the Image item in the Gamma: Optional items: Default, 0.45, 0.5, main menu and press [home] button, IMAGE 0.56, 0.63...
Page 19 AF-Sense: Automatic focusing sensitivity items: Off, 1 ~ 5 options, Optional items: Low, Normal, High 7. SETUP L/R Set: Optional items: STD, REV Move the cursor to the Setup item in the main Display Info Optional items: On, Off menu and press [home] button, SETUP menu Image Freeze: Optional items: On, Off appears, as shown in the following figure.
Page 20 shown in the following figure. networking, Optional items: Serial, Paral Baudrate: Serial port baud rate. Optional COMMUNICATION SETUP items: 2400, 4800, 9600 Protocol VISCA 9. RESTORE DEFAULT V_Address Move the cursor to the Restore Default item V_AddrFix in the main menu and press [home] button, RESTORE DEFAULT menu appears, as shown in Net Mode Serial...
Page 21: Usb3.0
USB3.0 Camera support UVC protocol, compatible USB2.0 & USB3.0. USB3.0 support 1920x1080p/60 max output. USB2.0 support 960x540p/60 max output. Support OS Windows XP/2003/VISTA/7/8 and other system、Linux、Mac OS General software Windows: AMCAP, VLC, Debut Video Capture, etc. Linux:V412 software driver and VLC media player, etc. Mac OS: FaceTime.
Page 22: Maintenance And Troubleshooting
Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.  Use soft cloth or tissue to clean the camera cover. ...
Page 23 3. Check IR address of the Remote Commander is set correctly.  Serial communication cannot control the camera 1. Check the camera working mode. 2. Check control cable is connected correctly. 23 | www.peoplelinkvc.com P a g e...
