User Manual

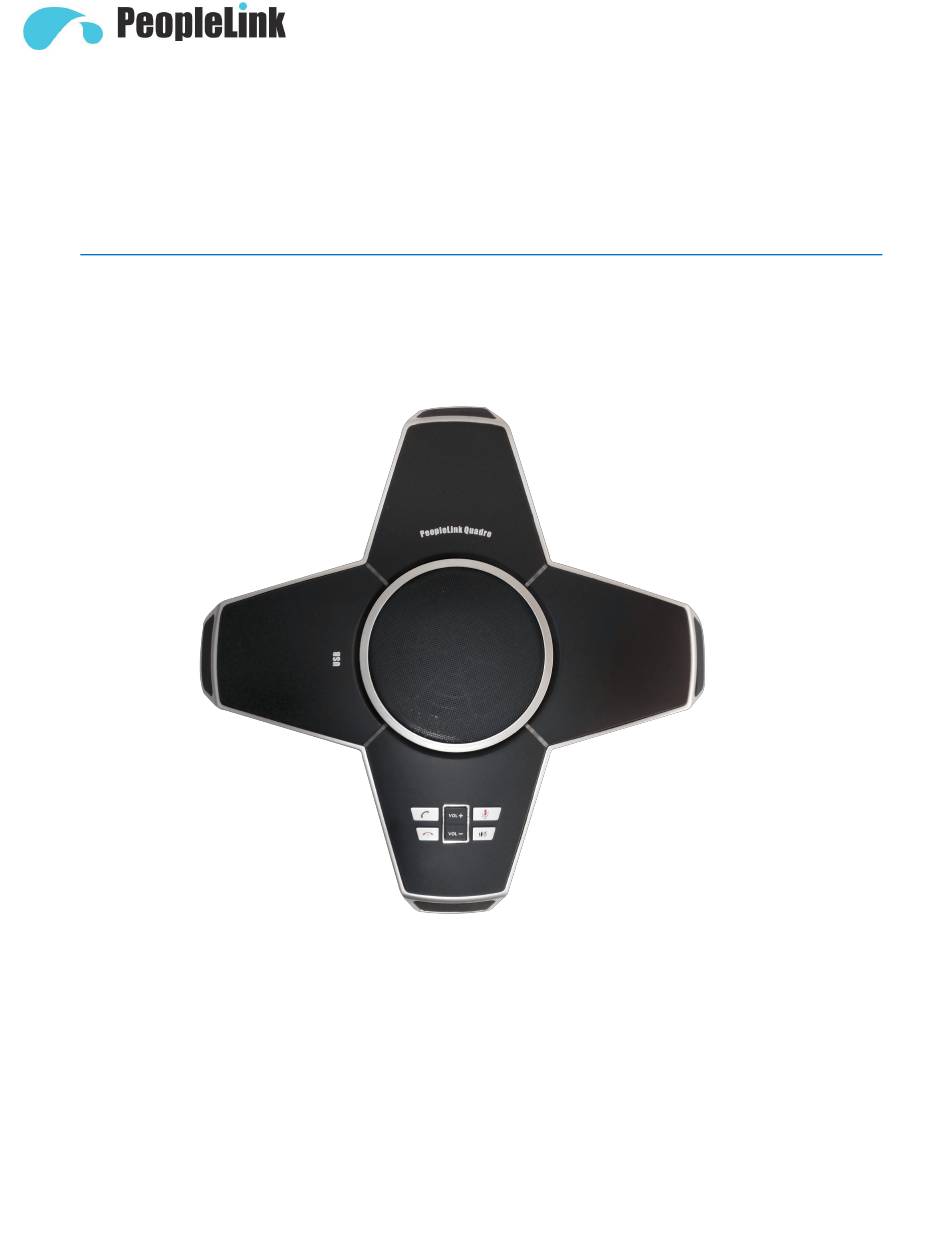

PeopleLink Quadro (Conference Phone)
PPU-PVC-CP-QOD-UM
Release 032024| V 1.1
|
(English Version)
Please read this Manual before set up Quadro and stick to its requirements strictly for Safety
reason. Suggest you save this manual for further inquiries reference.
Page 1
www.peoplelinkvc.com
Advertisement
Table of Contents
Summary of Contents for PeopleLink Quadro
- Page 1 PeopleLink Quadro (Conference Phone) PPU-PVC-CP-QOD-UM Release 032024| V 1.1 (English Version) Please read this Manual before set up Quadro and stick to its requirements strictly for Safety reason. Suggest you save this manual for further inquiries reference. Page 1 www.peoplelinkvc.com...
- Page 2 PeopleLink Under the law, reproducing includes translating into another language or format. As between the parties, PeopleLink, retains title to and ownership of all proprietary rights with respect to the software contained within its products.
-
Page 3: Table Of Contents
Getting to know your Phone………………………………………..…………………………………….7 Parts of Phone……………………………………………………………………………………………………………..7 Quadro Keypad………………………………………………………………………………………..…………………8 LED Status……………………………………………………………………….…………………………………………..9 How to use Quadro …………….…………………………………..………………………………………10 Placing VOIP call in USB Mode……………………………………….………….………………………………10 Connection steps for USB………………………………………………………..…………………….………….10 Useful settings for PC and Video Conferencing System……………………………….…… ….…..10 Placing a call via Line In/Line Out……………………………………………………………….………… …10 Placing call Via Mobile Phone……………………………………………………………………………………..11... -
Page 4: Quadro Seriesconference Phone
PARTS LIST Quadro Series Conference Phone Note : In case damaged or missing products, contact vendor immediately. Please Do Not use damaged products Page 4 www.peoplelinkvc.com... -
Page 5: Installation And Precautions
Installing If you need to make an USB call, connect one end of USB cable into Quadro USB ort, the other end into a PC or Video system. If you need call via mobile phone, connect the earphone of mobile to“IN/OUT”port of Quadro by 4 Strand 3.5mm Cable. -
Page 6: Connection Diagram
Connection Diagram 1. Power adapter 2. Extension Microphone 1 (optional) 3 Extension Microphone 2 (optional) 4. Extension Microphone Cable (optional) Page 6 www.peoplelinkvc.com... -
Page 7: Interface Introduction
Interface Introduction POWER: Power jack on the port bay of the Quadro EXT1: EXT1 jack of extension microphone EXT2: EXT2 jack of extension microphone USB: Connect to PC, or video system. AUX: Audio jack connect to external audio device IN/OUT: Connect to LINE IN/OUT device, or mobile phone... -
Page 8: Quadro Keypad
Quadro Keypad If any unexpected key is pressed while the blue LED indicators are on, the blue indicators will be turned off, and the mode setting will be terminated. Page 8 www.peoplelinkvc.com... -
Page 9: Led Status
LED Indicators Blue USB / Mobile Phone is connected Microphone mute Blinking blue Speaker mute Blinking green PC Mode and Mobile Mode switching is undergoing. Page 9 www.peoplelinkvc.com... -
Page 10: How To Use Quadro
2. The first time installation of the driver will take a few seconds. 3. The blue LEDs turn on indicating the Quadro is now into the USB mode. 4. Open the softphone platform you wish to select, such as video conference system, video conference software, UC or any other instant communication software. -
Page 11: Placing Call Via Mobile Phone
For utilizing this feature,the mobile phone must be turned on , the call must not be deactivated and the Quadro must be connected to the mobile phone via the 3.5mm 4 strand cable. Steps for Connecting to a Mobile Phone 1. -
Page 12: Installing External Microphone
Plug the optional extension microphone into the EXT1 and EXT2 jacks of the conference phone Quadro. Plug the DC plug of the adapter into the POWER jack of the Quadro then plug the other end of the adapter into a standard AC power outlet . -
Page 13: Important Safety Instructions
Important Safety Information When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock or personal injury. Please read the following carefully: This unit is NOT waterproof! DO NOT expose this unit to moisture. ... -
Page 14: One Year Limited Warranty
This warranty to the original retail purchaser expire one (1) year from the date of the original retail sale. If a warranty claim is made, this warranty will not apply if the Product is found by PEOPLELINK to (A) Damaged or not maintained in a reasonable manner or as recommended in the relevant PEOPLELINK Owner's Manual;... - Page 15 Depending on the country in which the Product was first purchased, if you believe that your Product does not conform with this warranty, you should return the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to PEOPLELINK at the addresses shown below.
