PeopleLink ElitePro12X User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

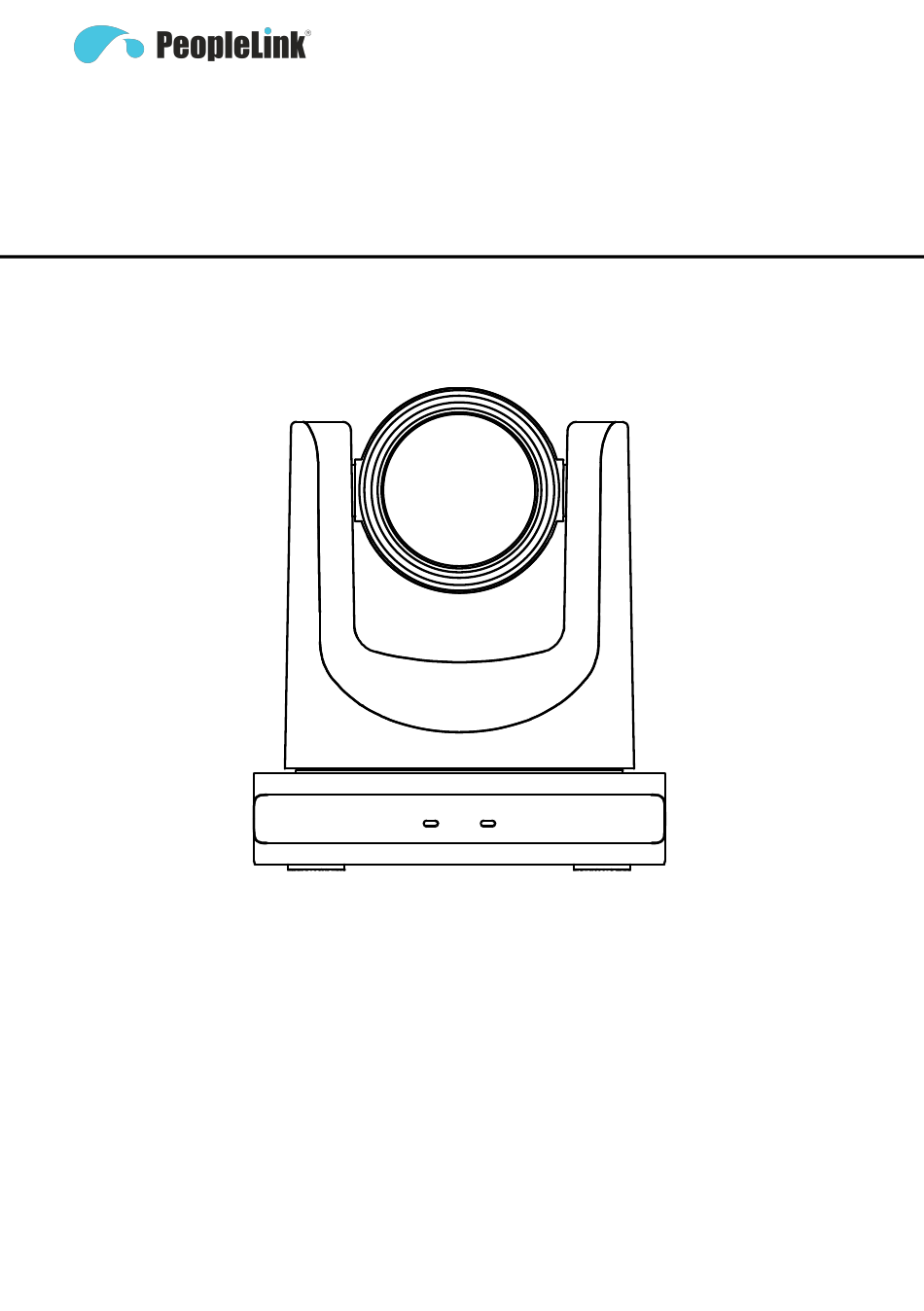

User Manual
PeopleLink Elite Pro 12X
|
|
|
Product Manual
Edition V 1.0
Release 042022
PPU-PVC-EPS-12X-16DX
STANDBY
POWER
(English Version)
Please read this Manual before setting up Elite Pro 12X and stick to its
requirements strictly for Safety reason. Suggest you save this manual for
further inquiries reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ElitePro12X and is the answer not in the manual?

Questions and answers

Summary of Contents for PeopleLink ElitePro12X

  • Page 1 User Manual PeopleLink Elite Pro 12X Product Manual Edition V 1.0 Release 042022 PPU-PVC-EPS-12X-16DX STANDBY POWER (English Version) Please read this Manual before setting up Elite Pro 12X and stick to its requirements strictly for Safety reason. Suggest you save this manual for...
  • Page 2 PeopleLink Under the law, reproducing includes translating into another language or format. As between the parties, PeopleLink, retains title to and ownership of all proprietary rights with respect to the software contained within its products. Therefore, you must treat the software like any other copyrighted material (e.g., a book or sound recording).

  • Page 3: Table Of Contents

    PPU-PVC-EPS-12X-16DX User Manual Catalogue 1 Note ..........................1 2 Packing List ......................... 1 3 Quick Start ........................1 4 About Product ......................3 4.1 Features ..............................3 4.2 Product Specification ..........................4 4.3 Interfaces and Buttons ......................... 5 4.4 Dimension ............................. 6 4.5 Remote Control .............................7 4.6 RS232 Interface ............................8 4.7 Serial Communication Control ......................
  • Page 4 PPU-PVC-EPS-12X-16DX User Manual 6.5 Camera Controlled by WAN .......................14 6.5.1 Setup IP Controlled by Dynamic DNS ....................14 6.5.2 Camera Visiting via Dynamic DNS ....................14 6.5.3 VLC Stream Media Player Monitoring .................... 14 6.6 Camera Parameter Setup ........................15 6.6.1 Homepage Introduction ........................15 6.6.2 Video Settings ..........................

  • Page 5: Note

    PPU-PVC-EPS-12X-16DX User Manual Note material) damage. Make sure there is no obstacle within rotation range. Electri  Please never power on before installation is c Safety completed. Installation and operation must accord with Do not  electric safety standard. Dismantle the Camera Cautio ...
  • Page 6 PPU-PVC-EPS-12X-16DX User Manual Network Cable (Not Supplied) HDMI Cable (Not Supplied) RS232 Cable (Not Supplied) RS485 Cable (Not Supplied) Power Adapter (Supplied) DC 12V IN Power Cable (Supplied) HDMI RS232 USB3.0 LINE IN RS485 DC 12V 3.5mm Audio Cable (Not Supplied) PC, Router or Switch, USB Cable (Supplied) TV, VCR with audio input...

  • Page 7: About Product

    PPU-PVC-EPS-12X-16DX User Manual Conne is as high as 55dB. ct the power adapter to the power  connector on the rear panel of the camera. The wired network supports PoE power supply, The power indicator on the front panel of the control, power supply, video and audio can the camera turns on.

  • Page 8: Product Specification

    PPU-PVC-EPS-12X-16DX User Manual Compensation Remot  e Control Digital Noise 2D & 3D Digital Noise The camera can be controlled remotely Reduction Reduction through the RS232, RS485, network and Signal Noise ≥55dB Ratio USB port. Horizontal Angle H.264 Slice/H.264 SVC ...

  • Page 9: Interfaces And Buttons

    PPU-PVC-EPS-12X-16DX User Manual 1 x RS232: 8pin Min DIN, Audio Type Max. Distance: 30m, 96Kbps, 128Kbps, Audio Bit Rate Protocol: VISCA/Pelco-D/ 256Kbps Pelco-P Communication TCP/IP, HTTP, RTSP, Interface 1 x RS485: 2pin phoenix Protocols RTMP(S), ONVIF, DHCP, port, Max. Distance: Multicast, etc.

  • Page 10: Dimension

    PPU-PVC-EPS-12X-16DX User Manual 4.4 Dimension STANDBY POWER HDMI RS232 USB3.0 LINE IN RS485 DC 12V 3 4 5 6 7 Item Name Network Interface HDMI Interface RS232 Interface USB 3.0 Interface LINE IN Interface RS485 Interface DC 12V Interface 144.00 120.00°...

  • Page 11: Remote Control

    PPU-PVC-EPS-12X-16DX User Manual 4.5 Remote Control 5. HOME Key Confirm selection or press to turn PTZ back to the middle position. (Return) Key CAMERA SELECT Press to return to the previous menu. 7. ZOOM Key SLOW: Zoom In [+] or ...

  • Page 12: Rs232 Interface

    PPU-PVC-EPS-12X-16DX User Manual 16. BACKLIGHT Key Function Backlight ON/OFF: Press repeatedly to enable or disable the backlight compensation. NOTE: Effective only in auto  exposure mode. If there is a light behind  the subject, the subject will become dark, press the backlight key to enable the IR OUT backlight compensation.

  • Page 13: Gui Settings

    PPU-PVC-EPS-12X-16DX User Manual GUI Settings RS485  5.1 MENU Communication Control Camera controlled via RS485, half duplex Press [MENU] key to display the main menu mode: on the screen. Use the arrow key to move the Baud rate: 2400/4800/9600/38400 cursor to desired item and press the [HOME] Starting position: 1 bit key to confirm to enter the corresponding Data bit: 8 bits...

  • Page 14: Color

    PPU-PVC-EPS-12X-16DX User Manual Backlight: On, Off (Effective only in Auto Low, Middle, High (Effective in Auto, One Push mode). mode). Bright: 0~17 (Effective only in Bright mode). RG (Red Gain): 0~255 (Effective only in Gain Limit: 0 ~ 15 (Effective in Auto, SAE, Manual mode).

  • Page 15: Noise Reduction

    PPU-PVC-EPS-12X-16DX User Manual 5.7 SETUP P/T/Z When in main menu page, move the cursor to SpeedByZoom [Setup] and press [HOME] key to confirm to AF-Zone Front enter the setup page as shown in below figure. AF-Sense High Display Info SETUP Image Freeze Language Digital Zoom...

  • Page 16: Restore Default

    PPU-PVC-EPS-12X-16DX User Manual Auto and VISCA protocol). 6.2 Equipment Installation P_D_Address: 0 ~ 254. (Effective in Auto, Conne PELCO-D protocol). P_P_Address: 0 ~ 31. (Effective in Auto, ct the camera to the network or connect it PELCO-P protocol). directly to the PC with a Net Mode: Serial, Paral (Effective in Auto, network cable.
  • Page 17 PPU-PVC-EPS-12X-16DX User Manual network cable, check the IP address with “upgrade_En.exe”. Change IP address, two methods as below: Method 1: Input the IP address, username and password to login the web page, select Method 2: Open “upgrade_en.exe”, Select the “Network > Lan Settings” to change the IP “Config”...

  • Page 18: Visit/Access Camera

    PPU-PVC-EPS-12X-16DX User Manual Router Port Mapping (Tenda): 6.4.2 Visit/Access Camera Enter the Router Home Page (interface page), Visit http://192.168.100.88 via IE (better with select “Advanced”- “Virtual Server” > enter a IE web browser, others will cause latency), the new port number in “Ext Port” > enter a new login window will pop up as below, input the port number in “Int port”...

  • Page 19: Camera Parameter Setup

    PPU-PVC-EPS-12X-16DX User Manual or click “Ctrl + N” as below: 6.6.1 Homepage Introduction 6.6.2 Menu The interface includes below two menu bars: Real Time Monitoring: Video image displaying Parameter Setup: Configurate the parameters. A. Video Viewing Window The video viewing window is same as video resolution, the bigger the resolution, the bigger the playing area.

  • Page 20: Video Settings

    PPU-PVC-EPS-12X-16DX User Manual presets for quick recall. Step 1 Type a number into the preset box. Step 2 Click “Set” to save the preset. When the PTZ turn to other position, input the preset number and click “Call” button to turn the PTZ back to the preset position.
  • Page 21 PPU-PVC-EPS-12X-16DX User Manual 640x360, 480x272, 320x240, 320x180; The bigger the resolution, the clearer the image, and the larger the code stream, the more network bandwidth will be taken. Bit Rate You can specify the bit rate, the larger of the bit rate, the clearer of the image.

  • Page 22: Image Settings

    PPU-PVC-EPS-12X-16DX User Manual Image Sharpness: 0~16 (Controlled by the Slice slide bar, the digital value displayed on the Size right). Default is 4. Size for slice. 6.6.4 Image Settings Image Hue: 0~14 (Controlled by the slide bar, the digital value displayed on the right). Default is 7.

  • Page 23: System Settings

    PPU-PVC-EPS-12X-16DX User Manual Input type Line in. ADTS Options Options: On, Off. 6.6.6 System Settings Reboo Click “Reboot” to restart system.Username and Password Modify the password of username and guest (use letters and Numbers only). 6.6.7 NetworkSettings Settings The default IP address is 192.168.100.88, the MAC address cannot be modified.

  • Page 24: Device Information

    PPU-PVC-EPS-12X-16DX User Manual Set the HTTP, RTSP, TCP, UDP and Sony Multic Visca port number of the camera. ast Settings A. HTTP Port Turn On/Off Multicast, set up the Multicast The IP address identifies a network device and Address (default is 224.1.2.3) and Port (default multiple network programs can run on the is 6688;...

  • Page 25: Maintenance And Troubleshooting

    PPU-PVC-EPS-12X-16DX User Manual Check Maintenance and that the camera installation position is Troubleshooting stable. Check Camera Maintains that any vibrating machinery or object near  the camera. There camera will not be used for a long time,  is no video image in browser disconnect the AC power adapter from the AC outlet.
  • Page 26 PPU-PVC-EPS-12X-16DX User Manual mode. IE browser does not support H5, you need to Check use VLC plug-in to view videos. Please visit the address key of remote control can VLC website (http://www.videolan.org/vlc) match the camera. to download and install the 32-bit VLC media Serial ...
