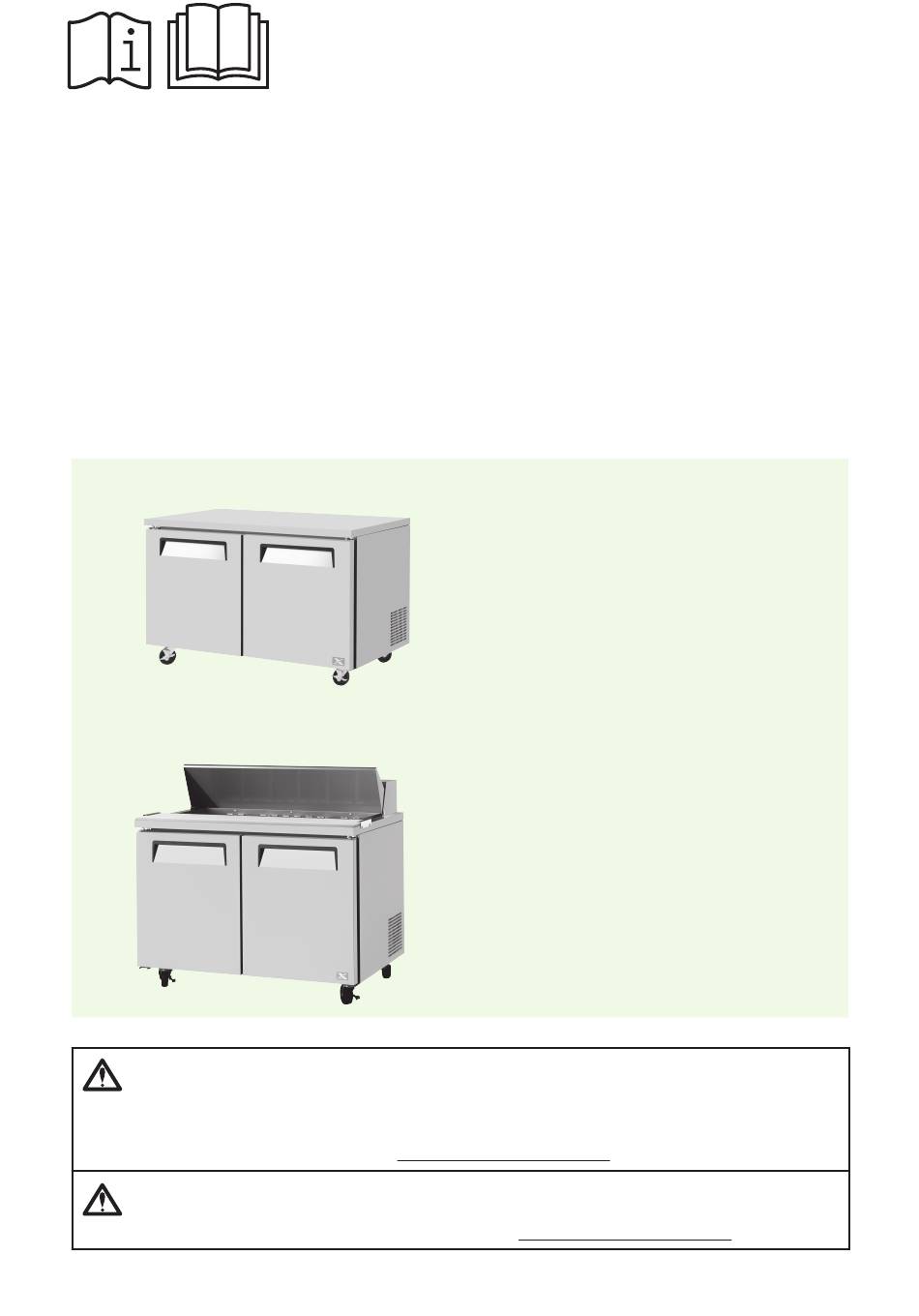

RefrigerationX Undercounter & Prep Table
Undercounter Refrigerator / Freezer
Sandwich Salad Unit
Mega Top Sandwich Salad Unit
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
WARNING : This product can expose you to chemicals including Bisphenol A(BPA)
and Di(2-ethylhexyl) phthalate(DEHP) and Cobalt sulfate heptahydrate, which are
known to the State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov
AVERTISSEMENT :
Cancer ET Troubles de l'appareil reproducteur - www.P65Warnings.ca.gov
XUR-28-N6
XUF-28-N
XUR-36-N6
XUF-36-N
XUR-48-N6
XUF-48-N
XUR-60-N6
XUF-60-N
XUR-72-N
XST-28-N6
XST-28-12-N6
XST-36-N6
XST-36-15-N6
XST-48-N
XST-48-18-N
XST-60-N
XST-60-24-N
XST-72-N
XST-72-30-N
