- Page 1 VDC-48 User Guide VDC-48: 1.4GHz Version: 20231219V1.0 1 / 23...
-
Page 2: Version History
Version history Date Version Modification description 20231219 V1.0 Initial version Notes Ensure that the correct voltage is used to power the device. 24V@2A is 1、 recommended. 2. Install the antenna before powering on the device to avoid circuit damage. Place the two antennas of the device at a distance greater than 15cm away from large metal structures to avoid communication obstruction caused by the preceding reasons. -
Page 3: Table Of Contents
Catalogue Version history ............................2 Notes ................................ 2 1.Product overview ..........................4 2. Product accessories ......................... 4 3. Product connection ......................... 6 3.1 Connection diagram(Air) ....................6 3.2 Air Connection ........................6 3.3 Connection diagram(Ground) ................... 7 3.4 Ground Connection ......................7 4 Product use ............................ -
Page 4: Product Overview

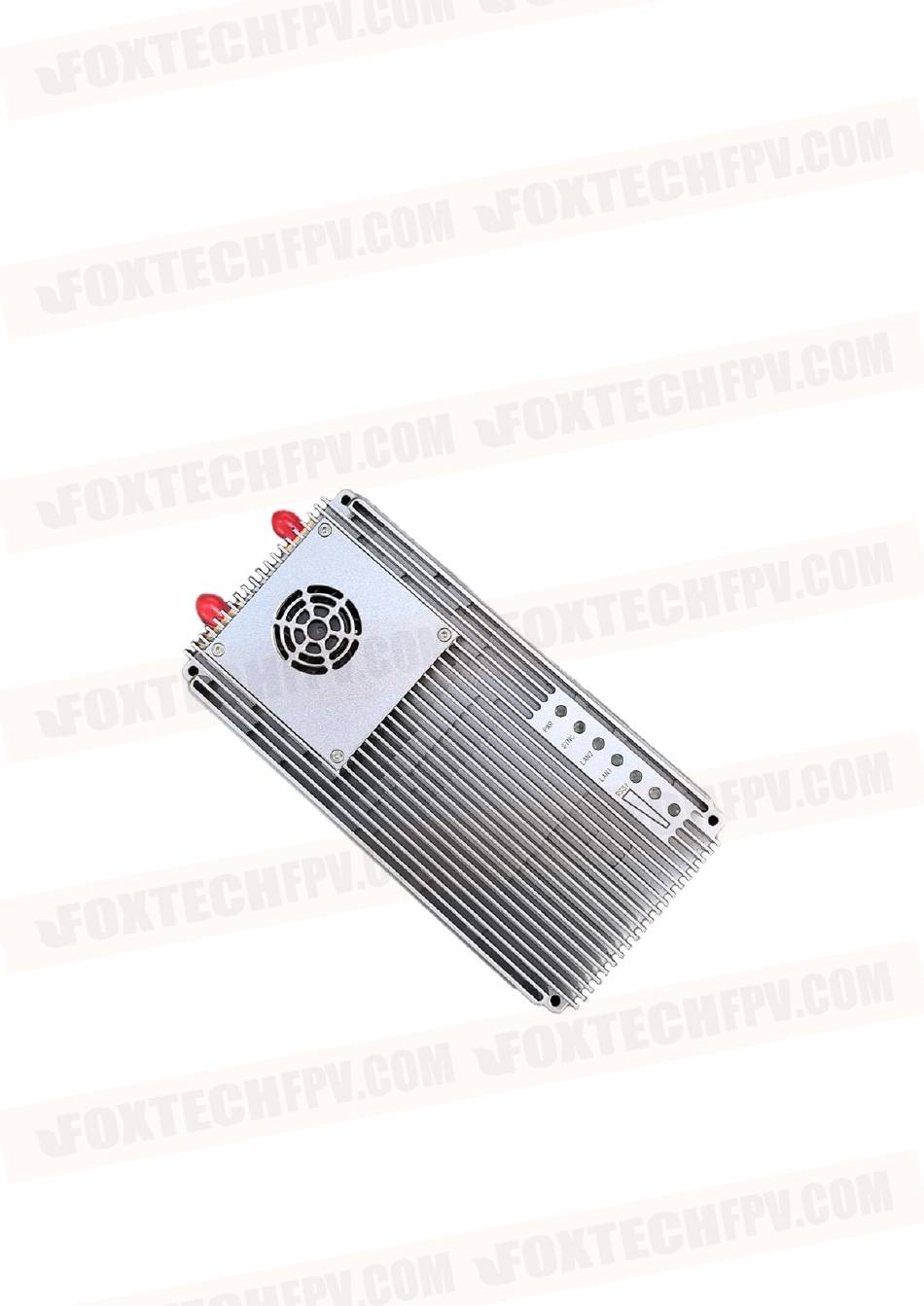

1.Product overview VDC-48 is a self-developed, 5W power TDD bidirectional graph digital integrated wireless transmission equipment. The product has the functions of real-time interference detection, adaptive frequency selection, adaptive stream, automatic retransmission, and automatic power control, which greatly improves the ability of anti- multipath and anti-interference, and has the characteristics of high reliability, good stability, and low delay. - Page 5 J30J-25pin VDC-48 module Small antenna extension cable 2.5dBi Small fiberglass antenna 9dBi Fiberglass antenna Fiberglass antenna extension cable Flat-panel directional antenna 13dBi directional antenna & extension cable Antenna stand 5 / 23...
-
Page 6: Product Connection
3. Product connection 3.1 Connection diagram(Air) 3.2 Air Connection Step1: Connect antenna The distance between the two antennas must be greater than 15cm.The tail is connected to the J30J-25PIN. Step2: Connect serial port It can be connected to flight control equipment or other serial devices. -
Page 7: Connection Diagram(Ground)
3.3 Connection diagram(Ground) 3.4 Ground Connection Step1: Connect antenna The distance between the two antennas must be greater than 15cm.The tail is connected to the J30J-25PIN. Step2: Connect serial port It can be connected to the computer serial port tool or other serial port devices Step3: Connect network port Connect the network to the computer, configure the IP address... -
Page 8: Product Use
Step4: Connect power Power the equipment DC22~30V, typical value: +24V. Step5: SYNC light After both the master and slave devices are powered on, check whether the SYNC indicator is steady on (synchronous). Step6: Play video Open the video player software. View live transmission video 4 Product use 4.1 Power supply The device uses... - Page 9 Linear Pin name Interface Interface description Signal order definition direction POWER + Input power positive POWER - Input power negative Data interface: J30J-25PIN Specific pin definition (VDC-48) Linear Pin name Interface Interface description Signal order definition direction 1&2 Reserve Reserve 3&4...
-
Page 10: Product Indicator Meaning
RS232 level. Note 3: The serial port level TTL or RS232 is determined by the factory hardware and cannot be modified by software. Note 4: The sky end of SBUS is connected to PIN14,16. SBUS ground remote control is connected to PIN15,16. 4.3 Product indicator meaning Power light PWR（green）... -
Page 11: Web Parameter Configuration
Module Mode VDC-48 light status type SYNC LAN 1 LAN 2 RSSI 123 master Un-sync Powered on Flashing Data sending and receiving, flashing master Sync Powered on Steady on Data sending and Proportional to the receiving, flashing strength of the received... - Page 12 ⚫ Configure the network segment of the PC(192.168.10.xxx） Open computer network connection and right-click properties. Open the TCP/IPv4 properties as shown in the following figure. Click Advanced, add IP, computer IP can add multiple IP at the same time. The same computer can work in different network segments.
-
Page 13: Web Account And Password
5.2 Web account and password The default WEB address of the primary (terrestrial) device is 192.168.10.250. The default Web input is 192.168.10.251 on the trunk device and 192.168.10.252 on the secondary (airborne) device. Account: admin; Password: 123456 13 / 23... -
Page 14: System Settings
5.3 System Settings Function Instructions Operation mode Configure the device as the master or slave end Band Width Channel bandwidth: 10MHz Network ID Network ID number: The same ID number is used for the same group. TX Power(dBm) Up to 37dBm AES Encryption switch AES Key AES Secret key... -
Page 15: Serial Settings
5.4 Serial Settings The device has four serial ports, among which serial port 1 and serial port 2 are RS232 or TTL level, and serial port 3 is RS-422 interface. Serial port 4 is SBUS/TTL. When serial port 4 is configured with TTL, you can change its baud rate. The device supports the function of serial port to serial port and serial port to network port. -
Page 16: Serial-To-Ethernet / Ethernet -To- Serial
5.4.2 Serial-to-Ethernet / Ethernet -to- Serial This function mainly includes serial port input, network port output or network port input, serial port output and so on. For example, in the WEB configuration, the remote serial port 1 inputs data, and the local port receives data from the remote serial port 1 through TCP or UDP. - Page 17 2: the server IP address to fill in for the equipment IP, 192.168.10.250/192.192.192.192. 3: Enter the server port number 3001. To obtain data from the remote serial port 2, write 3002. This parameter is set using the SSCOM TCP mode:（Obtain data from remote serial port 1）...
- Page 18 ⚫ UDP 模式 Using SSCOM TCP mode parameter configuration: (Obtain remote serial port 1 data) 1：Port number: TCP Client. 2：Remote IP: 192.168.10.250/192.192.192.192 3：Remote port number: 3001, Click to connect. 4：Local IP: IP address of the PC (in the same network segment as the device IP address).
-
Page 19: Network Settings
5.5 Network Settings The default local IP address of the primary end is 192.168.10.250. Users can modify the IP address. The default local IP address is 192.168.10.251. Users can modify the IP address. The default local IP address of the secondary end is 192.168.10.252. Users can modify the IP address. -
Page 20: Wireless Status
5.6 Wireless Status Wireless status is mainly to display channel information, such as master and slave nodes, whether to synchronize, working frequency points, distance display and network data volume statistics. It also displays the status of the local device and some information about the remote device. -
Page 21: Wireless Noise
5.7 Wireless Noise Background noise detection is mainly used to detect ambient interference of master and slave equipment. The red line represents the bottom noise at the primary end and the blue line represents the bottom noise at the secondary end. And the lower the absolute value, the cleaner the floor noise, that is, the smaller the interference source. -
Page 22: Factory Reset
5.8 Factory Reset After the device is factory set, the default IP address is 192.168.10.250, and the default IP address is 192.168.10.250. The customer needs to change the IP address again. 5.9 Software Upgrade System update, for customers to update the firmware, click select file, select the corresponding burn file, after the successful upgrade, please power on again. -
Page 23: Products Info
5.10 Products Info This section describes the serial number, software and hardware version number of the device 23 / 23...
