Summary of Contents for MSolutions MS-3PRI

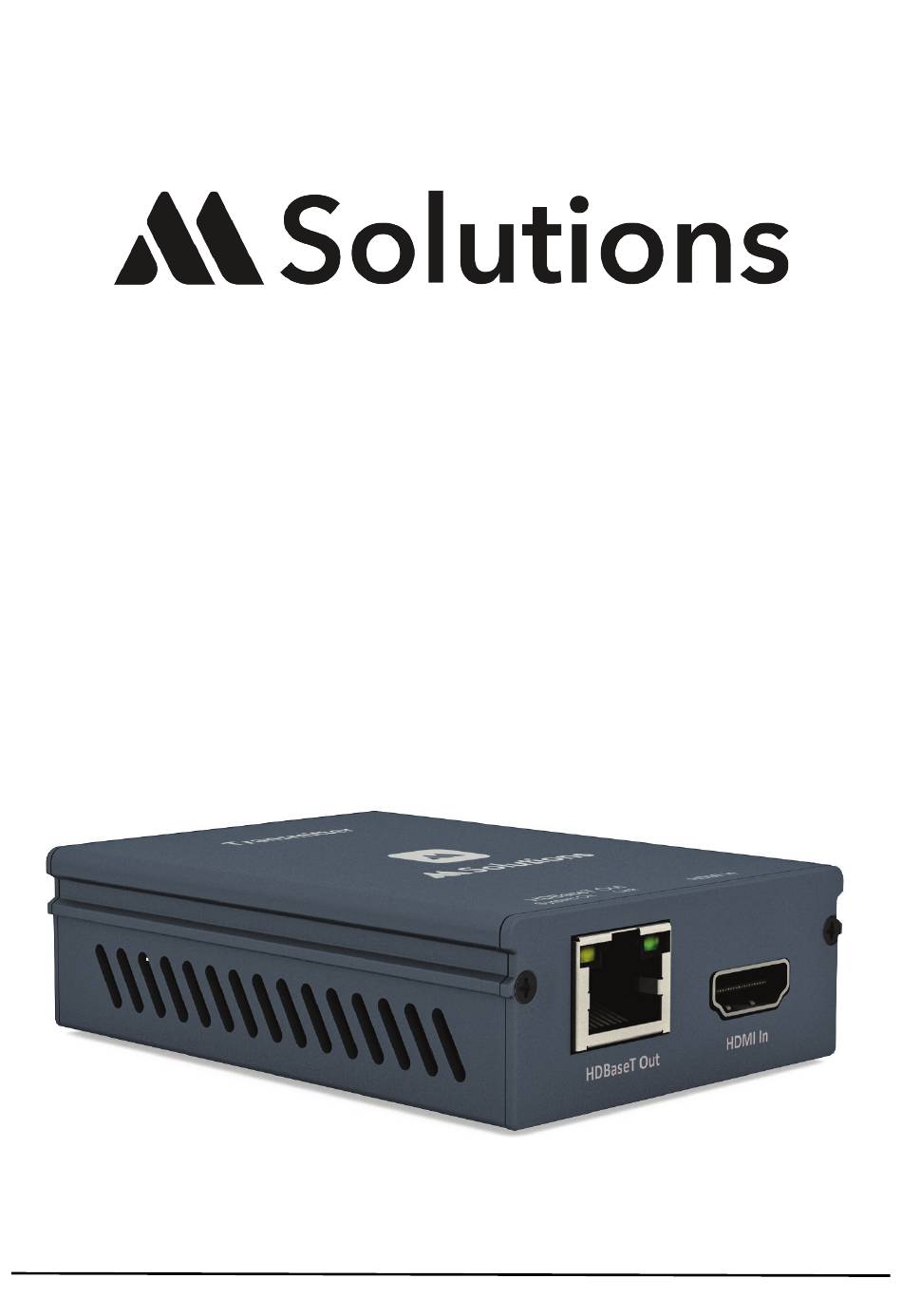

- Page 1 User Guide MS-3PRI HDBaseT™ Extender Set - 4K to 90m 18G, Uncompressed 4K 4:4:4 60, PoC, RS-232 pass through, with single channel bi-directional IR Revision: 1.0 January 2024...
- Page 2 Dolby is a trademark of Dolby Laboratories. • MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this, physical representations or graphical elements contained within this user guide may not be accurate.
- Page 3 MS-3PRI USER GUIDE Introduction The MSolutions MS-3PRI is a 4K 4:4:4 60 HDMI extender using uncompressed HDBaseT technology to extend 4K HDR video (18Gbps) to a distance of up to 90m over single CAT cable. The extender provides bi-directional RS-232 and a single channel IR link between TX to RX, or RX to TX.
- Page 4 MS-3PRI USER GUIDE Connectivity Overview - TX Front panel: • HDBaseT Out - connect to Cat cable to receiver • HDMI In - connect to HDMI source HDBaseT Out HDMI In Rear panel: • IR - connect to either IR transmitter or IR...
- Page 5 MS-3PRI USER GUIDE Understanding the LED’s This MSolutions extender set includes status LED indicators on both the Transmitter and Receiver products to show active connections and to further help integrators diagnose potential problems with the associated cabling. The RJ45 HDBaseT connections on both the transmitter and receiver units have orange and green LED’s.
- Page 6 The MS-3PRI is supplied with a single 5V IR transmitter that can be connected to either of the 3.5mm jack sockets on the transmitter or receiver to the labelled ‘IR’ port. The 5V IR Receiver is then connected to the 3.5mm jack socket labelled ‘IR’...
- Page 7 MS-3PRI USER GUIDE Specifications Transmitter Receiver • Video connectivity: 1 x HDMI input (female), • Video connectivity: 1 x HDBaseT input (RJ45 1 x HDBaseT output (RJ45 keystone) keystone), 1 x HDMI output (female) • IR connectivity: 1 x 3.5mm stereo jack •...
- Page 8 MS-3PRI USER GUIDE Schematic MS-3PRI Schematic MS-3PRI Transmitter Video MS-3PRI 90m at 4K Receiver Audio Power RS232 MS-3PRI Transmitter MS-3PRI Receiver 4K 4:4:4: 60 Projector Display...
- Page 9 MS-3PRI USER GUIDE www.m4sol.com...
