Abexo INDUS6 Assembly And Operating Instructions

AB Tecno Srl
Via Cicogna 95 - 40068 San Lazzaro di Savena (BO)
Tel: +39 051 6259580 - fax: +39 051 6259600
info@abtecno.com - www.abexo.tech
+12/36 VAC/DC
GND
RELAYS 1 (N.A.)
RELAYS 2 (N.A.)
1 - MAIN FEAT
Power supply: 12-36 V ac/dc.
- Decoding: HCS with Manufacturer Code ABTECNO.
- Maximum number of remote controls that can be stored 500. Output: no.
2 relays of
signal (max 1A).
2 - POWERING UP THE RECEIVER
The receiver is equipped with two LEDs (LED A and LED B) to signal the
successful power supply to the board.
When the receiver is rst turned on, these two leds light up brie y and then
turn o .
3 - NORMAL OPERATION
During normal use, the 2 LEDs (LED A and LED B) are associated with the
operation of the 2 output relays. Thus led A is associated with the
operation of relay A while led B is associated with the operation of relay B.
With the receiver powered and at rest, the leds will be o and will only
light up when a channel of the radio control will activate the respective
relay. With this function you will always have a visual indication of the
correct operation of the receiver for each relay.
NB: it is not possible to drive the outputs during programming or cancella-
tion.
4 - RADIOCOMMAND MEMORIZATION The maximum number of radio
controls that can be stored is 500 units. To store the radio controls in the
receiver, programming mode must be enabled by holding down the P-A
button on the receiver until the LEDs provide a succession of visual signals
a 2-second intervals, following the following order: LED A, LED B, LED A+B
and then repeat the sequence in the same order.
Signals that provide an indication of which relay is to be activated with the
remote control to be stored (led A relay
A only, led B relay B only, led A+B both
relays A and B).
Once you have identi ed the choice of
the type of relay output desired,
release the P-A button at the relevant
visual indication of the LEDs.
At this point it is possible to memorise
the radio control by pressing the
INDUS6
ANTENNA
GND
INDUS RX
button that you wish to associate with the selected relay (the button of the
radio control that has to be memorised must be pressed until the two
relays both light up for a few seconds to con rm correct memorisation).
NB: To store new radio controls, it will be necessary to repeat the operation
from the beginning, by pressing the P-A button again.
5 - DELETION OF A REMOTE CONTROL
To delete the memory of a remote control incorrectly inserted in the
receiver or to change its pairing to a particular relay you must carry out the
following procedure:
- Keep the P-A button pressed until the leds provide a succession of visual
signals, every 2 seconds, in the following order: led A, led B, led A+B then
repeat the sequence in the same order. In this cancellation procedure it is
not as important to select the relay as in the memorisation procedure so
you can release the P-A button as soon as LEDs A and B provide visual
indication.
- Once P-A button has been released, press P-B button until the two leds A
and B will light up.
memory, until the two LEDs turn o , thus indicating correct deletion.
At the end of this procedure, none of the remote control keys will be
no longer recognised by the receiver.
Led B Pulsante P-B
NB: During these steps, a press of the P-A button on the receiver determi-
Led A Pulsante P-A
nes the exit from the erase mode.

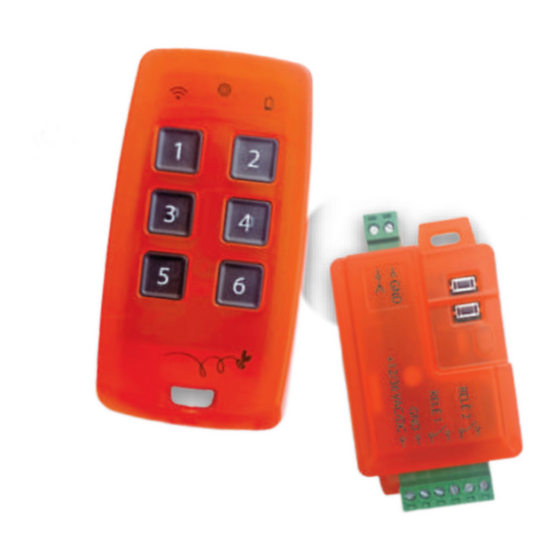

Multifrequency transmitter and receiver
cod.
APE-550/4006
Assembly and operating instructions
- Press any button on the remote control to be erased from the receiver
INDUS RX
cod.
APE-550/4033
