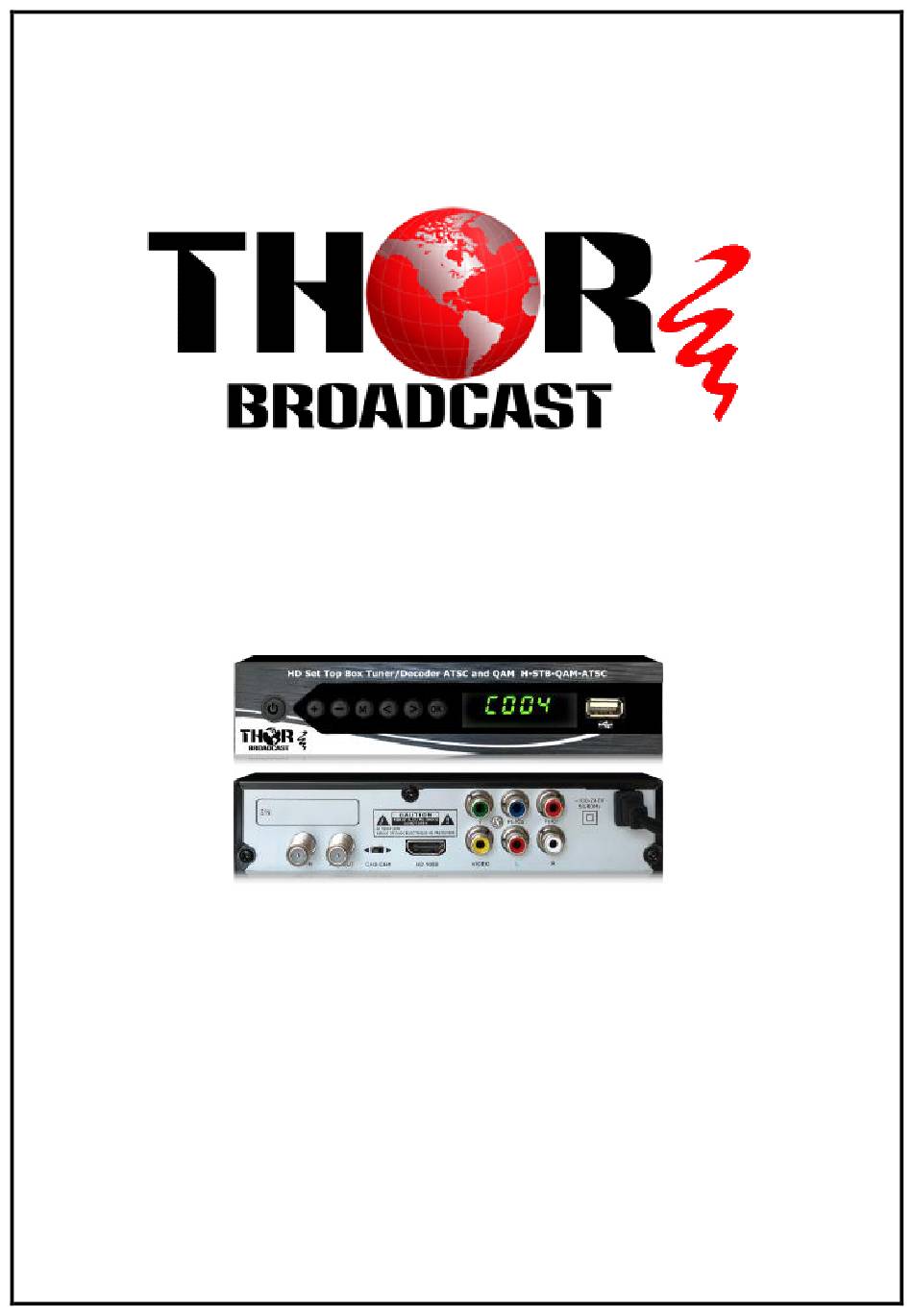

- Page 1 User Manual Digital TV Tuner H-STB-QAM-ATSC Universal Dual Modulation Standard Integrated Receiver Decoder With PVR Recorder Cable TV QAM Digital TV Converter Set-Top Box & Off AIR ATSC Digital TV Converter Set-Top Box Copyright 2022...
-
Page 2: Table Of Contents
H-STB-QAM-ATSC Table of Contents Safety Instructions ....................3 Precautions ......................... 4 Features........................5 Application Drawing ....................6 Start ..........................9 Battery installation........................9 Service life of batteries ........................ 9 Operation range of remote control ....................9 Basic Connections ....................10 Fast Installation ...................... -
Page 3: Safety Instructions
H-STB-QAM-ATSC Contents Safety Instructions Dear Customer, Thank you for purchasing this QAM/ATSC STB Receiver. Please read this manual carefully before operating your product and pay close attention to the precautions which are mentioned below. This product only can be operated for power supply is 110~230V, 50Hz. -
Page 4: Precautions
H-STB-QAM-ATSC Precautions Power Cord Protection Make sure to connect and disconnect the power cord without touching the metal plug. Do not connect or disconnect the AC power with wet hands. The AC power cord should not be near any heating appliances. -
Page 5: Features
Auto scan/ Manual Scan, no less than 600 programs can be stored HDMI resolution up to 1080p The Thor Broadcast H-STB-QAM-ATSC is a unique universal dual-standard Set Top Box - IRD Integrated Receiver Decoder and PVR Recorder - Digital TV... -
Page 6: Application Drawing
H-STB-QAM-ATSC Application Drawing... - Page 7 H-STB-QAM-ATSC 1. ANT IN 2. ANT OUT 3. CH3-CH4 4. HDMI up to 1080 5. VIDEO 6. L-AUDIO 7. R-AUDIO...
- Page 8 H-STB-QAM-ATSC STANDBY Notes: 1. Some buttons may not work or a few buttons have the same function as this kind of remote is used for all a variety of products, not just the STB it is an accessory to. 2. Some functions can be activated both by buttons on remote control and front panel.
-
Page 9: Start
H-STB-QAM-ATSC Start Battery installation Install the batteries and make sure the positive (+) and negative (-) polarities matches as shown in Figure A. Service life of batteries The batteries normally last for about one year despite that it depends on how often and in what way the remote control is operated. -
Page 10: Basic Connections
H-STB-QAM-ATSC Basic Connections Preparation All equipment must be connected according to this user manual. Switch off this product and other equipment’s before connecting Read the User Manual carefully before connecting other equipment’s Plug the Audio and Video cables correctly When connecting this product with a TV set, only one kind of video output format will be accepted. -
Page 11: If The Installation Guide Does Not Appear
H-STB-QAM-ATSC If the Installation Guide does not appear: Press [MENU] button, move cursor to “System Setup”, press [ CH▼ ] button to enter this setup interface. Use [ CH▲/▼ ] buttons to select “Restore Factory Default” and press [OK] button to load factory default. -
Page 12: Advanced Operation
H-STB-QAM-ATSC Advanced Operation Menu Operation Main Menu Press [MENU] button to browse the Main Menu including 6 submenus which are listed below: ◆ Edit Channel ◆ Installation ◆ System Setup ◆ Tools ◆ Game ◆ Media Player ▲/▼] Use [ buttons to select item, press [OK] button to enter in its setup interface. -
Page 13: Installation
H-STB-QAM-ATSC 1.3 Delete All Delete all TV and radio programs according to the screen. Under the “Program” menu move cursor to “LCN” and press [OK] button to enter in its submenu. In LCN on mode, the system will automatically list the channels in the same order as in the signal stream;... -
Page 14: System Setup
H-STB-QAM-ATSC 2.1 ATSC Channel Scan Scan Mode: By Channel/By Frequency Scan Band: VHF/UHF Channel No.: Only available in “By channel” mode. Frequency: Only available in “By Frequency” mode. Bandwidth: 6MHZ/7MHZ/8MHZ Network Search: YES/NO Search: Press [OK] button to start search. Press [EXIT] button to quit and system will automatically save the found channels. - Page 15 H-STB-QAM-ATSC Parental Lock Favorite Other 3.1 Language/Audio/Teletext Language English/French/Spanish/Portuguese First Audio: English/French/Spanish/Portuguese/. Second Audio: English/French/Spanish/Portuguese/. Teletext: English/French/Spanish/Portuguese/ Audio Language English, French, Spanish, Polish, Persian, Russian, Dutch, Italian, Portuguese, Turkish and Arabic Closed Captioning 4. CC Display: CC1-6 and OFF 5. CC Position: Auto, Top and Bottom 6.
- Page 16 H-STB-QAM-ATSC 3.5 Timer Setting There are 8 timers. Timer Mode: Off/Once/Daily Timer Service: Channel/Record Wakeup Channel: Setup channel needs to be wake up. Wakeup Date: Setup timer date. Use navigation buttons to move cursor and numeric button to input date.
-
Page 17: Tools
H-STB-QAM-ATSC 3.8 Favorite Press [OK] button to rename favorites. 3.9 Other Antenna Power: ON/OFF Beeper: ON/OFF Auto Standby: On/Off RF Loop Standby: ON/OFF 4. Tools Move cursor to “Tools” and press [OK] button to enter in its submenu. There are 8 options which are listed below. -
Page 18: Game
H-STB-QAM-ATSC 4.6 Calendar Move cursor to “Calendar” and press [OK] button to enter in its setup interface. Please operate according to screen. 5. Game Move cursor to “Game” and press [OK] button to enter in its submenu. There are 6 options which are listed below. - Page 19 H-STB-QAM-ATSC FAV ALL: Press [YELLOW] button to set all songs in Favorites. Edit: Press [BLUE] button to edit. In this submenu, press [RED] button to rename, press [GREEN] button to copy, press [YELLOW] button to delete and press [BLUE] button to open a new folder.
-
Page 20: Appendix
H-STB-QAM-ATSC Appendix Maintenance ◆ Unplug the power cord before maintenance. ◆ Keep the product surface clean. Please use a piece of soft cloth to clean the outer if it’s dirty. ◆ Do not use any chemical products like Alcohol or dilution to clean the product. -
Page 21: Troubleshooting
H-STB-QAM-ATSC Troubleshooting Look through the following table about the possible issues and you may find answers before request service. It may help you to resolve the problems with some easy operations. If something goes wrong with the receiver and can’t back to normal, please cut off the power for few minutes and restart the product. - Page 22 H-STB-QAM-ATSC Thor Support 1-800-521-8467 ext 2 Support@thorfiber.com Los Angeles CA...
