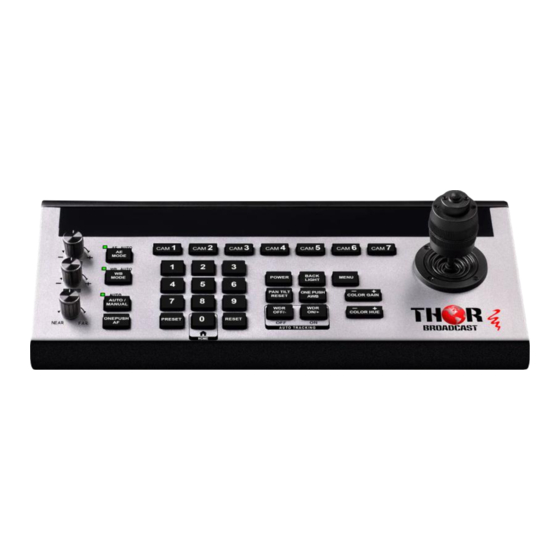

- Page 1 MaximusControl User Manual Professional-Grade Video PTZ Controller with Built-in VISCA, SONY VISCA, PELCO P/D Multiple protocols MaximusControl...
-
Page 2: Table Of Contents
MaximusControl Content 1. Specification & Parameters ............ 2 1. Specifications 2. Keys Function Description ............3 Communication Interface (All of Communication Port can working at the same time) RS422/RS485 Interface 4Pin Terminal 2.1 PRESETS Function Area ............. 4 RS232C Interface... - Page 3 MaximusControl 2. Key Functions 4) FOCUS Function Area AUTO AUTO MANUAL』Key is used for adjustment Camera’s Focus Mode, When AUTO indication light is ON, then it means current model is AUTO MODE, 『ONE PUSH AF』Key is used for trigger one time Auto FOCUS, Each time you press it, the camera focuses once, also the camera enters into AUTO FOCUS Mode;...
-
Page 4: Presets Function Area
MaximusControl 『BACK LIGHT』 Exposure Mode VALUE-Knobs Function BRIGHT-Knobs Function Key is to Turn ON/OFF Back light； AUTO None Gain Compensation 『MENU』 Key is for open or closed camera or keyboard menu, MANUAL Shutter IRIS Long press『MENU』enter to Keyboard menu setting；... -
Page 5: Interface Function & Connection Diagram
MaximusControl It can display current real time Keyboard status information (Including IP Address\ Port Number\COMM ID\Communication Protocol\ Baud Rate etc) and Keyboard Menu, The brightness of Display screen can be set by Keyboard Menu. 12) Light Sensor Light Sensor is detecting the current environmental brightness. -
Page 6: Keyboard Menu Operation
MaximusControl 17) 12V Power Interface 16) LAN Port The LAN Interface is used for connecting with a Network switch or other This interface is the Power supply interface, you can direct connect it with the Power adapter; please don’t using non-original Network PTZ Camera. -
Page 7: Ethernet Setting
MaximusControl LED Screen Brightness 【 】 If current Communication Protocol IS PELCO P/D, then Setting LED Screen Brightness, for selecting: Low\ Normal\ High Communication ID can be optional 1~7、Others； 【 】 Button Back Light When the ID Settings to others, after you Exit the Menu, you can... -
Page 8: Menu Guide
MaximusControl Menu Guide 6. Warranty & Maintain Service Terms 6.1 Warranty Range 1. Language: ENGLISH 2.LED Brightness: Normal/Low/High One-year Free Warranty period. 3.Back Light: Auto/Off/Low/Mid/High SYSTSEM Setting 4.Joysticks Sensitivity: Normal /Low/ High Due to force majeure reasons (such as war, earthquakes, 5.Auto Standby: ON/OFF/ 1~60mins...
