- Page 1 User Manual Indoor Bidirectional Optical Receiver F-MININODE-2RP-HP...
- Page 2 F-MININODE-2RP-HP 1. Product Overview F-MININODE-2RP-HP is our latest FTTB bidirectional optical receiver. High output levels can effectively cover the whole community or building. RFOG mode is selectable for the return path to reduce its convergence noise. It can be equipped with a transponder with corresponding...
- Page 3 F-MININODE-2RP-HP 4. Technical Parameter Item Unit Technical Parameters Forward Optical Receiving part Receiving Optical Power -9～＋2 Optical AGC Range ＋2～-9/-8/-7/-6/-5/-4 (adjustable) Optical Return Loss ＞45 Optical Receiving Wavelength 1100～1600 Optical Connector Type SC/APC or specified by the user Frequency Range 45/54/87/110～862/1003...
- Page 4 F-MININODE-2RP-HP Laser Turn Off Time（T11） 0.5≤T11≤1.5 T1≤1.3us ，T11≤1.6us 5. Relation Table of Receiving Optical Power and CNR 6. NMS Setup Instructions 1. Default IP of the transponder is 192.168.1.168, default gateway is 192.168.1.1, default subnet mask is 255.255.255.0. 2. Connect the computer and transponder (can be directly connected), and change the computer IP to 192.168.1.XXX (XXX is any number from 0 to 255 except 168);...

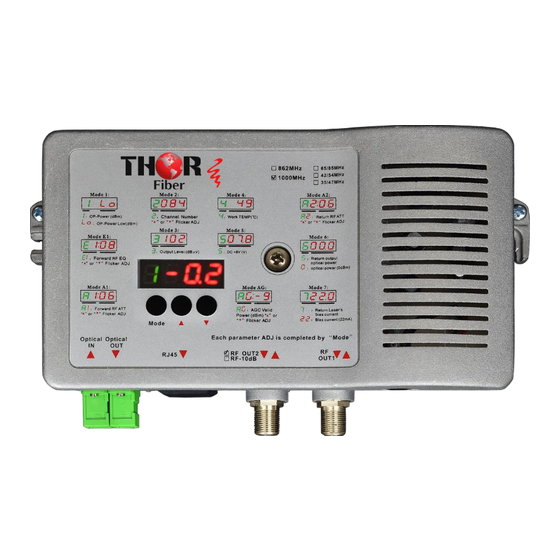

- Page 5 7. Function Display and Operating Instruction Mode: Mode selection button. Press the Mode button to cycle display the submenu; long press▼or ▲ enter for setting.
