Distribution:
• When setting up the Lodge, please ensure that the ground
is level and stable.
• Total weight: Lodge 110 approx. 80 kg, Lodge 80 approx. 70 kg.
• Lodge is a decorative fireplace for indoor and outdoor use.
Not suitable for continuous operation.
• As per installation instructions, minimum distances to
flammable construction materials and objects must be
maintained at all times.
• Please follow the indicated instruction guide and manual as
well as the safety recommendations and warning notices!
• Please ensure that enclosed parts are installed correctly.
• National and regional regulations for the installation of this
device must be observed.
• Only install the device in an area that is protected against
cross ventilation.
• Simultaneous use of multiple devices is only permissible if the
fuel throughput of all devices combined does not exceed
0.5 l/h (indoor use).
General Installation Instructions
• Choose an appropriate even, stable, and fireproof surface.
• Transport the Lodge carefully and wear gloves (risk of in-
jury).

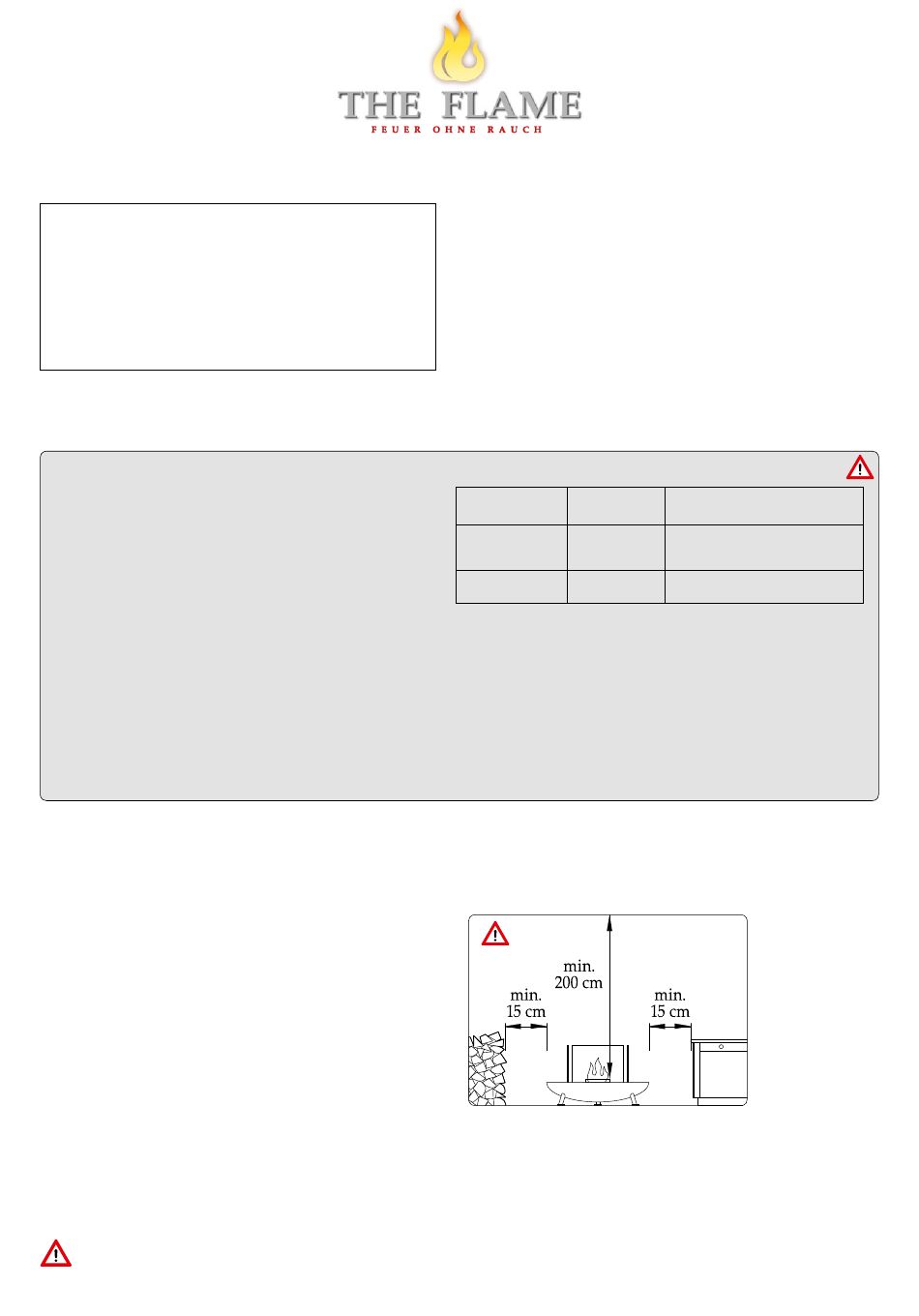

• When positioning the Lodge, ensure a minimum distance of
15 cm to flammable parts at the sides, and 200 cm to flamm-
able parts at the top (distance from top edge of the burner).
Please follow the indicated safety recommendations
and warning notices!
Manual Lodge
General Information
Installation Instructions
Manufacturer:
THE FLAME · Rainer Biemann
Schalserstraße 41 · A-6200 Jenbach
www.theflame.at · info@theflame.at
THE FLAME 04-2014
• Minimum room volume:
Minimum
Air circu-
room volume m³
lation* n/h
163 m³
0,5
81 m³
1,0
*Approximate Values: • Tilted window, no shutters: Air circulation 0,3 ... 1,5
• Half opened window:
• Your Lodge fireplace has to be examined for obvious defects be-
fore every use (burner, safety shaft).
• Appropriate aeration levels must be maintained during ope-
ration (indoor use).
• The safety shaft has to be routinely examined for burn
residue and, if necessary, emptied.
• Only operate the device under supervision.
Note
Usual air circulation rate of airtight
buildings with average aeration
habits of users.
Complete air exchange inside in-
stallation room within one hour.
Air circulation
5 ... 10
