GoSmart H5023 Manual

Code keypad
Hide thumbs

Advertisement

Quick Links

Download this manual
H5023
GoSmart code keypad

Table of Contents

Safety instructions and warnings ........................................................................................... 2
Contents of the package ........................................................................................................ 3
Technical Specifications .......................................................................................................... 3
Description of the device ....................................................................................................... 4
Installation and assembly ....................................................................................................... 5
Pairing with an app ................................................................................................................ 9
Controls and functions ......................................................................................................... 14
Troubleshooting FAQ ........................................................................................................... 18
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the H5023 and is the answer not in the manual?

Questions and answers

Summary of Contents for GoSmart H5023

  • Page 1: Table Of Contents

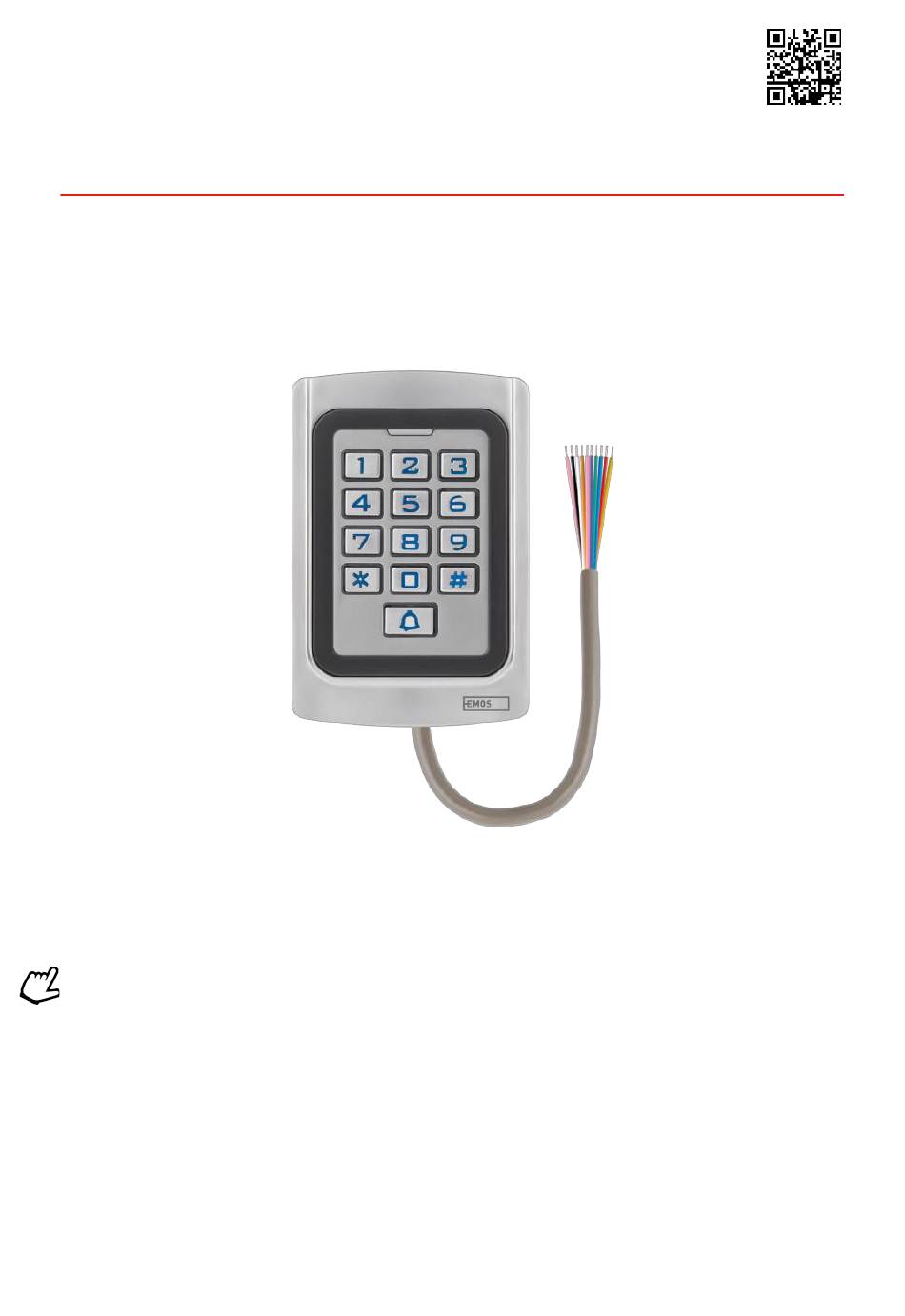

    H5023 GoSmart code keypad Table of Contents Safety instructions and warnings ................... 2 Contents of the package ......................3 Technical Specifications ......................3 Description of the device ....................... 4 Installation and assembly ....................... 5 Pairing with an app ........................ 9 Controls and functions ......................

  • Page 2: Safety Instructions And Warnings

    Before using the device, read the instructions for use. Observe the safety instructions in this manual. EMOS spol. s r.o. declares that the product H5023 complies with the essential requirements and other relevant provisions of the directives. The equipment can be operated freely in the EU.

  • Page 3: Contents Of The Package

    Communication protocol: 2.4 GHz WI-FI (IEEE802.11b/g/n) Operating temperature: -45 °C to 60 °C Operating humidity: ≤ 90% RH Maximum number of users: 2000 IP protection: IP68 APP: EMOS GoSmart for Android and iOS Notice The keyboard only supports 2.4GHz Wi-Fi (does not support 5GHz).

  • Page 4: Description Of The Device

    Description of the device 1 - RFID chip honouring area 2 - Bell button 3 - Keyboard 4 - Cabling Description of cabling Colour Functions Description Pink BELL_A One end of the contact to the gong (bell) Pink BELL_B The other end of the contact to the gong (bell) Green Wiegand output D0 (for external readers) White...

  • Page 5: Installation And Assembly

    Installation and assembly 1. Screw the back cover on using the screws provided. The cabling must be ready before installing the keyboard. 2. Connect the cables according to your needs. 3. Place the keyboard on the back cover and screw it in place using the bottom bracket.
  • Page 6 Connecting the cabling Basic wiring diagram The most basic keyboard wiring with lock, exit button and possibly external gong (pink cables). However, this wiring is only possible when using a lock with low power consumption (< 0.5 A). From the EMOS range, the C0030 lock can be used.
  • Page 8 External reader connection - Wiegand (Green) (Yellow) Black) Access controller (Purple)

  • Page 9: Pairing With An App

    QR code. Steps in the EMOS GoSmart mobile app Open the EMOS GoSmart app and confirm the privacy policy and click I agree. Select the registration option. Enter the name of a valid email address and choose a password.
  • Page 10 Turn on the keypad and reset it by entering the code: * -> Master code (default: 999999 ) -> 73 -> #. The LED should flash green. The device will be automatically searched. After pairing, the keyboard can be renamed.
  • Page 11 Icons and indicator lights Remote keypad unlock and lock button Keyboard naming and the ability to rename the keyboard Current lock status (Locked/unlocked) Additional settings Record of events User management Setting a one-time code (a universal permanent code can also be set) Attendance setup and tracking (Feature is currently under development, instructions will be added later)
  • Page 12 User management Users can be added using the "+" icon. If the user has created an account in the EMOS GoSmart application, then in the "User Account" field, just enter the mail to which this account was created and you can easily link the lock control with its application (Each administrator must have his own account).
  • Page 13 Managing temporary PINs If you need to create a universal code (e.g. for a visitor) to open the lock, you can use the temporary code setting. First, you need to choose whether the code is permanent or one-time. For a permanent code, you can specify the length of validity of the code and you will be able to open it until it expires.

  • Page 14: Controls And Functions

    After entering the code, To start the LED will flash green pairing and the device will be with found using GoSmart Applications applicatio You must be in programming mode before entering any of the following codes! Changing the The main code must...
  • Page 15 Quickly add more members To delete an individual member's PIN code Change PIN code (outside programming mode) Action Code Description By not entering the member ID in this method, Adding an RFID the keyboard assigns chips chip - method to members automatically from 1 to 2000 Adding an RFID 1 member ID = 1 RFID chip...
  • Page 16 Adding an RFID chip - method Adding an RFID chip - method Other options Creating a Anyone with a public universal code will be able to (public) PIN unlock To delete a universal (public) PIN Action Code Description Mode setting: When opened, the lock relay time will lock after a set time.
  • Page 17 The first step is to enter the following code on keypad B: And then on the A key this code: Both keypads will flash green during the data transfer and remain red when the transfer is complete.
  • Page 18 Programming MASTER and DELETE chips If you need to program a large number of chips at once or add or remove chips periodically, you can create 2 master chips, which simplifies the process greatly so you don't have to enter programming mode each time you program.

  • Page 19: Troubleshooting Faq

    Troubleshooting FAQ I can't get the devices to pair. What can I do? • Make sure you are using a 2.4GHz Wi-Fi network and have a strong enough signal • Allow the app all permissions in the settings • Make sure you are using the latest version of the mobile operating system and the latest version of the app Who all can use the equipment? •...
