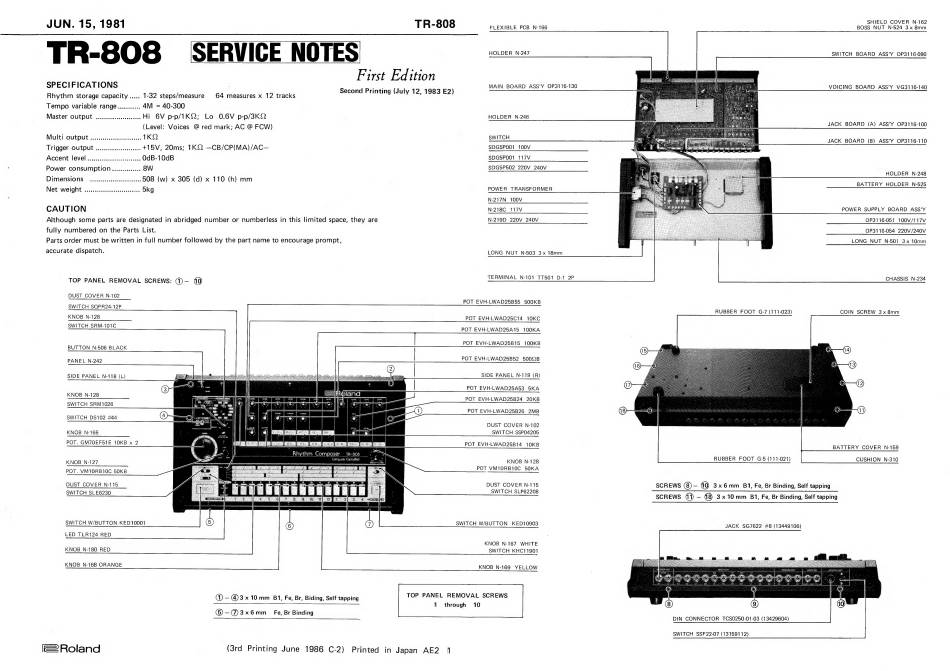

Rolan TR-808 Manual

JUN. 15, 1981
SPECIFICATIONS
Rhythm storage capacity ..... 1-32 steps/measure 64 measures x 12 tracks
Tempo variable range ........... 4M - 40-300
Master output ...................... Hi 6V p-p/1KQ; Lo 0.6У p-p/3KQ
(Level: Voices @ red mark; AC @ FCW)
Multi output ......................... 1KQ
Trigger output ...................... *15V, 20ms; 1КО —CB/CP(MA)/AC—
Accent !еме!.......................... OdB-10dB
Power consumption .............. SW
Dimensions .................... 508 (w) x 305 (d) x 110 (h) mm
Net weight ........................ 5kg
CAUTION
TR-808
First Edition
Although some parts are designated in abridged number or numberless in this limited space, they are
fully numbered on the Parts List.
Parts order must be written in full number followed by the part name to encourage prompt,
accurate dispatch.
TOP PANEL REMOVAL SCREWS: D- 49
DUST COVER N-102
SWITCH 5ОРН24-12Р
KNOB N-128
SWITCH SRM-101C
BUTTON N-506 BLACK
PANEL N-242
SIDE PANEL N-118 (L)
KNOB N-128
SWITCH SRM1026
SWITCH DS102 #44
KNOB N-165
POT. GM7OEF51E 10KB x 2
KNOB N-127
[on
POT. VM10RB10C 50KB
DUST COVER N-115
SWITCH SLE6230
SWITCH W/BUTTON KED10001
LED TLR124 RED
KNOB N-180 RED
KNOB N-168 ORANGE
CD — (23 x 10 mm B1, Fe, Br, Вата, Self tapping
(5) —(2)3x6mm Ғе, Br Binding
2 Roland (3rd Printing June 1986 C-2)
Printed
TOP PANEL REMOVAL SCREWS
through 10
1
in Japan AE2
Second Printing (July 12, 1983 E2)
1
SWITCH W/BUTTON KED10903
FLEXIBLE PCB N-166
HOLDER N-247
MAIN BOARD ASS'Y ОРЗ116-130
HOLDER N-246
SWITCH
SDG5P001 100V
SDG5P001 117V
SDG5P502 220V 240V
POWER TRANSFORMER
N-217N 100V
N-218C 117V
N-219D 220V 240V
LONG NUT N-503 3 x 18mm
TERMINAL N-101 TT501 D-1 2P
POT EVH-LWAD25B55 500KB
RUBBER FOOT 6-7 (111-023)
POT EVH-LWAD25C14 10KC
POT EVH-LWAD25A15 100KA
POT EVH-LWAD25B15 100KB
POT EVH-LWAD25B52 5000В
SIDE PANEL N-119 (R)
РОТ EVH-LWAD25A53 5КА
POT EVH-LWAD25B24 20KB
POT EVH-LWAD25B26 2MB
DUST COVER N-102
SWITCH SSP04205
POT EVH-LWAD25B14 10KB
RUBBER FOOT G-5 (111-021)
KNOB N-128
POT VM10RB10C БОКА
SHIELD COVER N-162
BOSS NUT N-524 3x 8mm
SWITCH BOARD ASS'Y OP3116-090
VOICING BOARD ASS'Y VG3116-140
JACK BOARD (A) ASS'Y OP3116-100
JACK BOARD (B) ASS'Y OP3116-110
HOLDER N-248
BATTERY HOLDER N-525
POWER SUPPLY BOARD ASS'Y
OP3116-051 100V/117V
OP3116-054 220V/240V
LONG NUT N-501 3x 10mm
CHASSIS N-234
COIN SCREW 3x 8mm
BATTERY COVER N-159
CUSHION N-310
DUST COVER N-115 SCREWS (8) – 10 3x6 mm ВТ, Ғе, Br Binding, Self tapping
SWITCH SLP62208
KNOB N-167 WHITE
SWITCH KHC11901
KNOB N-169 YELLOW
SWITCH SSF22-07 (13159112)
JACK $67622 #8 (13449106)
DIN CONNECTOR ТС50250-01-03 (13429604)
SCREWS 0) — 48 Зх 10 mm B1, Fe, Br Binding, Self tapping
