Kübler IO-Link IN68 Operation Manual

Inclinometers
Hide thumbs Also See for IO-Link IN68:
Table of Contents

Advertisement

Quick Links

Download this manual

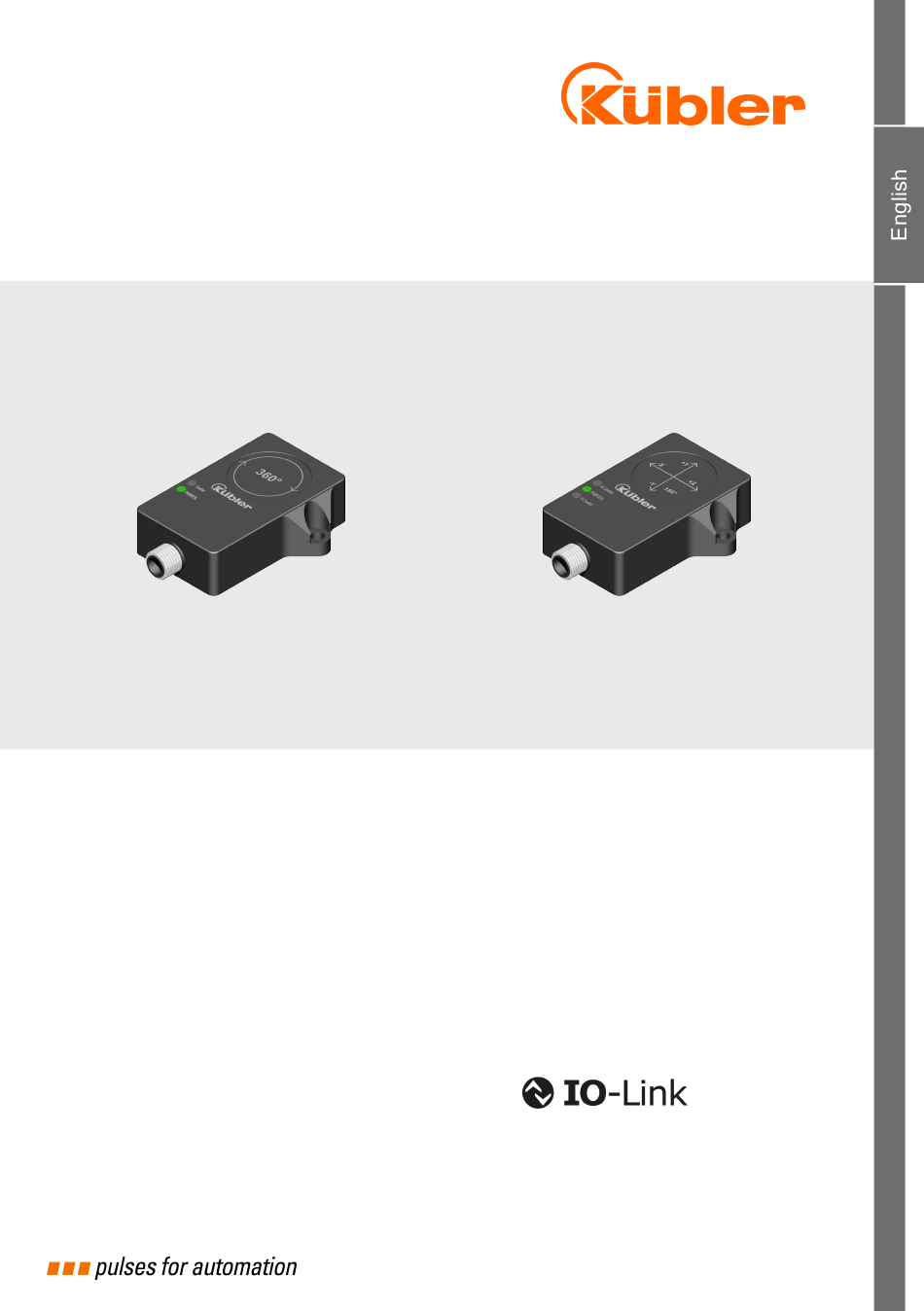

R60114.0002 - 01
Operation Manual
Inclinometers
IN68 / IN78

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IO-Link IN68 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kübler IO-Link IN68

Summary of Contents for Kübler IO-Link IN68

  • Page 1 R60114.0002 - 01 Operation Manual Inclinometers IN68 / IN78...

  • Page 2: Table Of Contents

    Table of Contents Kübler Group Table of Contents Document......................... General Information ......................Target Group......................Symbols used / Classification of the Warnings and Safety instructions ....Preliminary Remark ....................Feedback ........................ Transport / Storage ....................Use According to the Intended Purpose ..............Foreseeable Misuse....................
  • Page 3 Kübler Group Table of Contents Maintenance ........................Eliminating disturbances ..................Disassembly......................Reassembly ......................Disposal ........................... Annex ..........................Decimal / Hexadecimal conversion table ..............Conversion table Data types................... Contact..........................Glossary........................... Operation Manual R60114.0002 - 01 EN | 3...

  • Page 4: Document

    1 Document Kübler Group 1 Document This is the English translation of the original operation manual in German language. Publisher Kübler Group, Fritz Kübler GmbH Schubertstraße 47 78054 Villingen-Schwenningen Germany www.kuebler.com Issue date 03/2024 ©  Copyright 2024, Kübler Group, Fritz Kübler GmbH Legal Notices All of the contents of this document are protected by the rights of use and copyrights of Fritz Kübler GmbH.

  • Page 5: General Information

    Kübler Group 2 General Information 2 General Information Please read this document carefully before working with the product, mounting it or starting it up. These operating instructions guide the technical personnel of the machine and plant manufacturer or operator for safe assembly, installation, commissioning and operation of the product.

  • Page 6: Preliminary Remark

    2 General Information Kübler Group NOTICE Classification: Additional information relating to the operation of the product, and hints and recommendations for efficient and trouble-free operation. 2.3 Preliminary Remark The following basic safety instructions are intended to avoid personal injuries and damage to property;...

  • Page 7: Other Applicable Documents

    Kübler Group 2 General Information 2.8 Other Applicable Documents NOTICE Technical Data All technical data, as well as the mechanical and electrical characteristics, are specified in the data sheets of the corresponding device variant, for special versions in the.corresponding quotation / customer drawing of the product.

  • Page 8: Product Description

    3 Product Description Kübler Group 3 Product Description 3.1 Function of an Inclinometer An inclinometer is a measuring device intended for the acquisition of the inclination angle. The sensor establishes an exact reference to the vertical direction. The gravity of earth is used as the reference.

  • Page 9: Devices Overview

    Kübler Group 3 Product Description IMG-ID: 340645771 These devices output the angles according to the measuring axis or to the measuring axes. A fusion algorithm uses the acceleration values and the rotary rates to calculate the inclination angle. The filters minimize the influence of vibrations and other interferences, the fusion algorithm optimizes the speed and the accuracy of the output signal.

  • Page 10: Led Display Elements

    3 Product Description Kübler Group IMG-ID: 334234123 3.2.1 LED Display Elements The 1-axis devices have a green and a yellow LED. • The green LED indicates the operating voltage and the device status. • The yellow LED lights up when the spirit level function is enabled. The 2-axes devices have a green and two yellow LEDs.

  • Page 11: Product Conformity

    Kübler Group 3 Product Description UL - Underwriters Laboratories UL approval File no. E539414 Relevant standards UL 61010-1 Indoor use, outdoor use possible, not designed for direct UV radiation. Maximum air humidity 93 %, 40°C [104°F] Environment Dry / Wet 3.3.2 Product conformity The product meets the following criteria: •...

  • Page 12: Installation

    4 Installation Kübler Group 4 Installation 4.1 Mechanical Installation ATTENTION Damage to the device due to transport or storage Device failure, malfunction, device lifetime reduction. • Check the packaging and the device for possible damages. • In the event of visible damages, do not use the device and do not put it into operation.

  • Page 13: Cable Routing

    Kübler Group 4 Installation 4.1.3 Cable routing NOTICE Cable routing Route all lines free of any tension, so that no additional force is applied on the inclinometer . Consider the minimum bending radii of the connection line. Comply with the instructions in chapter Information for EMC- Compliant Installation [} 14].

  • Page 14: Electrical Installation

    4 Installation Kübler Group c) Fasten the device with two screws. d) After the overhead installation of 2-axes sensors: teach the center point. When replacing an IS40 inclinometer, Kübler offers an adapter plate with suitable drilling pattern to allow using the existing fastening holes (order code: 8.0010.4066.0000). 4.2 Electrical Installation 4.2.1 General Information for the Connection ATTENTION...

  • Page 15: Connecting The Connecting Wires

    Kübler Group 4 Installation Shielding and Equipotential Bonding a) Apply the cable shield on a large contact area - ideally 360°. Use e. g. a shield terminal to this purpose. b) Pay attention to proper cable shield fastening. c) Preferably connect the shield on both sides with low impedance to the protective earth (PE), e.g.on the device and/or on the evaluation unit.

  • Page 16: Sensor Terminal Assignment

    4 Installation Kübler Group 4.2.4 Sensor Terminal Assignment Device IN68 / IN78 Signal: n.c. Pin: +V : Supply voltage +V DC 0 V : Ground GND (0 V) IOL : IO-Link interface 16 | EN Operation Manual R60114.0002 - 01...

  • Page 17: Commissioning And Operation

    Kübler Group 5 Commissioning and Operation 5 Commissioning and Operation 5.1 Functions and Operating Modes 5.1.1 Measuring axes The measuring axis of the 1-axis inclinometers covers the angular range of 0…360°. IMG-ID: 45035996611661579 The 2-axes inclinometers cover the angular range of ±85° on two axes in all directions. This results in a non-measurable angle of 10°...

  • Page 18: Commissioning

    5 Commissioning and Operation Kübler Group Display Meaning LED off No voltage LED green Device ready for operation LED green IO-Link communication active. flashing Center LED (X and Y Center LED only for 2-axes device) Display Meaning LED yellow Spirit level function – Center point position reached (±0.5°) LED yellow Spirit level function –...

  • Page 19: Software-Aided Parameterizing

    Kübler Group 5 Commissioning and Operation Parameter Meaning Spirit level The spirit level function can be disabled or enabled. Restore the This function restores the delivery condition in the device. The device delivery condition is re-started after restoring the delivery condition. The communication is interrupted.

  • Page 20: Parameterizing Via A Pc

    5 Commissioning and Operation Kübler Group 5.4.2 Parameterizing via a PC The devices can be set using a PC with an FDT framework/IODD. IMG-ID: 9007199588979467 Example with IO-Link Master USB The inclinometer (1) must be disconnected from the application (3) for setting. The IO-Link Master USB (2) is connected to the inclinometer by means of the adapter cable (4) and to the PC by means of the USB interface (5).
  • Page 21 Kübler Group 5 Commissioning and Operation Device parameters (On-request Data Objects) The device parameters are exchanged acyclically and on request of the IO-Link Master. The IO- Link Master always sends first a request to the device, then the device responds. This applies both to the writing of data in the device and to the reading of data from the device.
  • Page 22 5 Commissioning and Operation Kübler Group 5.4.3.3 Process Output Data Name Byte Bit length Subindex Data Type Value Description access Process False UINT 0…3 Trigger center data point teach output 22 | EN Operation Manual R60114.0002 - 01...
  • Page 23 Kübler Group 5 Commissioning and Operation 5.4.3.4 Standard Parameters Name Index Subin Subindex Access Byte Data Value Description access length Type supported Minimum cycle time True read UINT IO-Link version ID True read UINT Default: 17 Manufacturer ID 1 True read UINT Manufacturer ID 2...
  • Page 24 5 Commissioning and Operation Kübler Group Name Index Subin Subindex Access Byte Data Value Description access length Type supported Application-specific 0x18 True read/ STRING To be written by the user as marking write required Process data input 0x28 True read Process- Data InUnion...
  • Page 25 Kübler Group 5 Commissioning and Operation Name Index Subin Subindex Access Byte Data Value Description access length Type supported 4 = very fast Center point 0x102 0x0 True write BOOL Sets the current device position as the center point True = set center point Direction of rotation 0x103 0x0 True...
  • Page 26 5 Commissioning and Operation Kübler Group Name Index Subin Subindex Access Byte Data Value Description access length Type supported 1 = Signed 26 | EN Operation Manual R60114.0002 - 01...

  • Page 27: Filters

    Kübler Group 5 Commissioning and Operation 5.4.4 Filters The inclinometers use an acceleration measuring cell (MEMS) to determine the angle and output this angle according to the measuring axis or axes. Due to inertia of the measuring cell in the event of fast or quickly changing rotations and of vibrations, inaccuracies may occur in the acquired measured data with respect to the actual movement.
  • Page 28 5 Commissioning and Operation Kübler Group Acceleration measuring cell (static) Sensor fusion (dynamic) actual movement data acquired by the acceleration measurement filtered measurement result of the acceleration measurement Result sensor fusion from the acceleration and rotary rate measurement Restrictions Due to the Filters and the Sensor Fusion Filtering always leads to a time lag Δt for the output of the measurement result.

  • Page 29: Maintenance

    Kübler Group 6 Maintenance 6 Maintenance In harsh environments, we recommend regular inspections for firm seating and possible damages at the device. Repair or maintenance work requiring opening the device may only be performed by the manufacturer. In the event of questions or spare parts orders, please provide us the data printed on the type plate of the device.

  • Page 30: Disposal

    7 Disposal Kübler Group 7 Disposal Always dispose of unusable or irreparable devices in an environmentally sound manner, according to the country-specific provisions and in compliance with the waste disposal regulations in force. We will be glad to help you dispose of the devices. See chapter Contact [} 33].

  • Page 31: Annex

    Kübler Group 8 Annex 8 Annex 8.1 Decimal / Hexadecimal conversion table 0x33 0x66 0x99 0xCC 0x34 0x67 0x9A 0xCD 0x35 0x68 0x9B 0xCE 0x36 0x69 0x9C 0xCF 0x37 0x6A 0x9D 0xD0 0x38 0x6B 0x9E 0xD1 0x39 0x6C 0x9F 0xD2 0x3A 0x6D 0xA0...

  • Page 32: Conversion Table Data Types

    8 Annex Kübler Group 0x1F 0x52 0x85 0xB8 0xEB 0x20 0x53 0x86 0xB9 0xEC 0x21 0x54 0x87 0xBA 0xED 0x22 0x55 0x88 0xBB 0xEE 0x23 0x56 0x89 0xBC 0xEF 0x24 0x57 0x8A 0xBD 0xF0 0x25 0x58 0x8B 0xBE 0xF1 0x26 0x59 0x8C 0xBF...

  • Page 33: Contact

    Kübler Group 9 Contact 9 Contact You want to get in touch with us: Technical advice For technical advice, analysis or support during installation, Kübler is directly on site with its globally active application team. Support International (English-speaking) +49 7720 3903 849 support@kuebler.com Kübler Germany +49 7720 3903 849 Kübler Australia...

  • Page 34: Glossary

    Glossary Kübler Group Glossary BOOL GSDML Data type. A BOOL (or Boolean) Generic Station Description Markup represents a truth value that may be Language either true or false. DINT Data type. Integer. An integer is Data type. An operand of the data type generally made of 16 bits.
  • Page 35 Kübler Group Glossary PACTware UINT Data type. An operand of the data type UINT (Unsigned INT) has a length of 16 bits and contains numerical values without sign. UL 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 1: General requirements PACTware is a manufacturer and field bus-independent software for simple...
  • Page 36 Kübler Group Fritz Kübler GmbH Schubertstr. 47 D-78054 Villingen-Schwenningen Germany Phone +49 7720 3903-0 Fax +49 7720 21564 info@kuebler.com www.kuebler.com...
