Summary of Contents for IQ IQPodium PD150

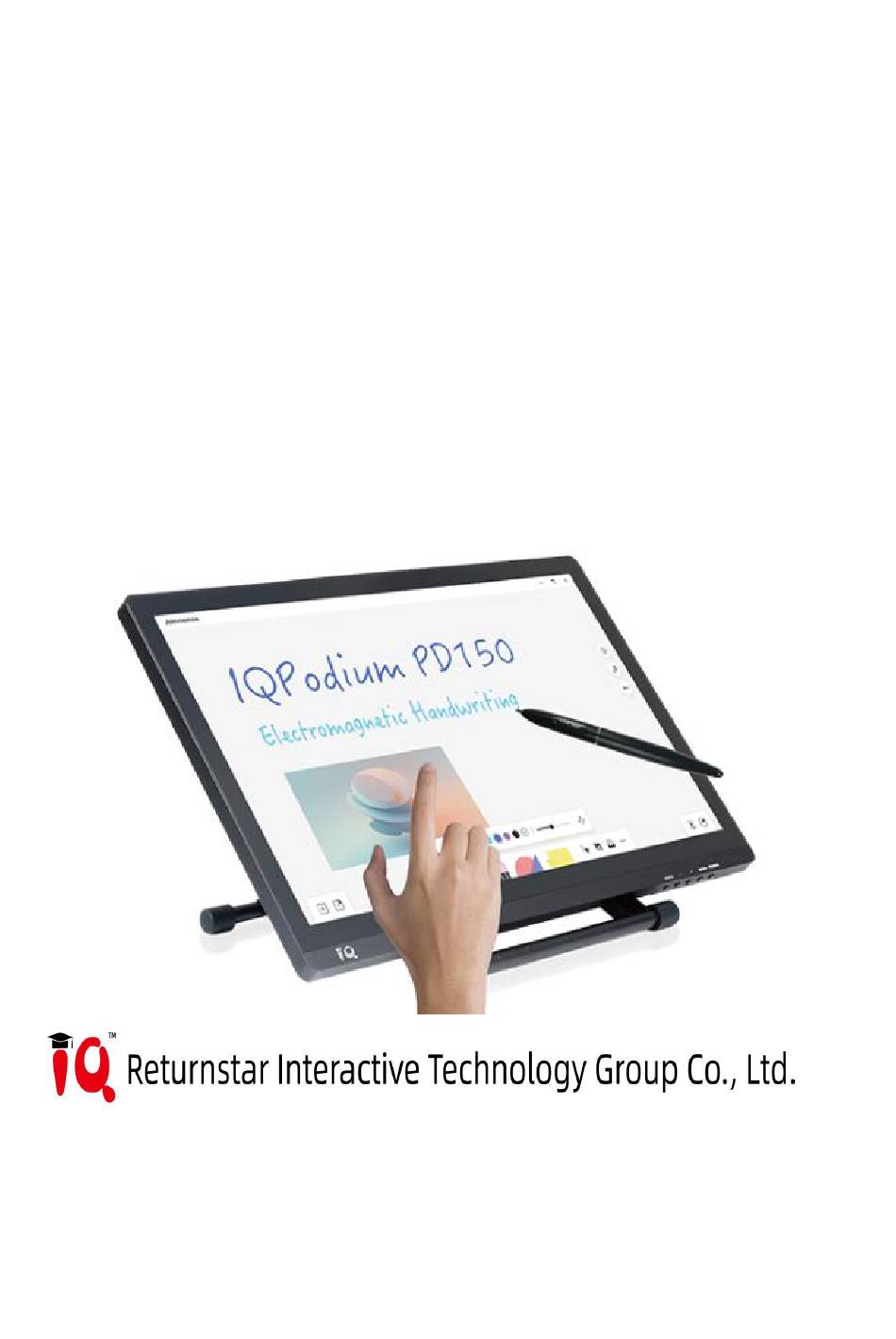

- Page 1 Interactive Pen Display IQPodium PD150 ——User Manual——...
-
Page 2: Table Of Contents
Contents 1. Introduction .............................3 2. Part Name and Function Introduction .................... 4 3. Installation ............................6 4. Start/Shutdown ..........................7 5. Setting ............................. 8 5.1. Screen setting ........................8 5.2. Sound setting ........................9 5.3. Time setting ..........................9 5.4. System setting ........................10 6. Passive Handwriting Pen ......................11 6.1. -
Page 3: Introduction
1. Introduction The digital podium combines the technical advantages of the LCD screen and the electromagnetic handwriting input, to write on the screen in a free and simple way and thus improve working efficiency. The products are widely used in medical treatment, business meetings, multimedia teaching and other related fields. -
Page 4: Part Name And Function Introduction
2. Part Name and Function Introduction... - Page 5 Part name Part No. Function description Display screen Screen display area / electromagnetic handwriting area ① Green: Working mode Red: Standby mode Indicator light ② Power: press the button to turn on the power Function ③ buttons Menu: press the button to go to menu. +: press the button to switch to different setting - : press the button to go in to the setting Auto: press the button to navigate the specific setting up and down.
-
Page 6: Installation
3. Installation When wire up the podium, do the following: Connect the computer to the HDMI IN port on the podium using an HDMI cable. Next enable touch control by connecting the computer to the touch port using a USB A-B cable. -
Page 7: Start/Shutdown
4. Start/Shutdown To start or shut down the podium, do the following: Press and hold the “Auto” button for 1 second to start the podium, the LED light will be green Press and hold the “Power” button for 1 second to shut off the podium, the LED indicator will be also turned off. -
Page 8: Setting
5. Setting Podium setting includes settings for screen, sound, time, system language and so on. 5.1. Screen setting Scree setting include picture mode, color temperature, scale, noise reduction and so on. press “+” button to switch to picture setting, and press “ Auto” to navigate all screen setting up and down, then press “-”... -
Page 9: Sound Setting
5.2. Sound setting Adjust sound mode, balance, automatic volume, and surround sound settings. press “+” button to switch to sound setting, and press “ Auto” to navigate all screen setting up and down, then press “-” to enter the setting. After that press “+” and “-” to set up the setting. Sound mode：select sound mode: Moving, Music, Sports, User, Standard ... -
Page 10: System Setting
Clock：set the podium’s clock by date, month, year, hour, minute. Press the “-” and “+” for the adjustment and “Auto” to navigate among clock settings. Off Time：set the device automatic off time. On Time：set the device automatic off time. ... -
Page 11: Passive Handwriting Pen
6. Passive Handwriting Pen You can input information to the computer through the passive handwriting pen, to realize the writing function and operate the computer. 6.1. Passive Pen Operating System Requirements: The computer's operating system for connecting to a digital screen needs to be one of the following: Windows XP, Windows Vista, Windows 7, 8, 10, 11, MAC 10.2.8 and higher versions. -
Page 12: Troubleshooting
7. Troubleshooting Problems Troubleshooting Measures 1）check if power is on No power indicator light 2）Whether the power cord is connected, check the power outlet No image on the screen 1） Check if the signal cable between the podium and the computer is properly connected, and ensure the cable and connectors are in good condition.
