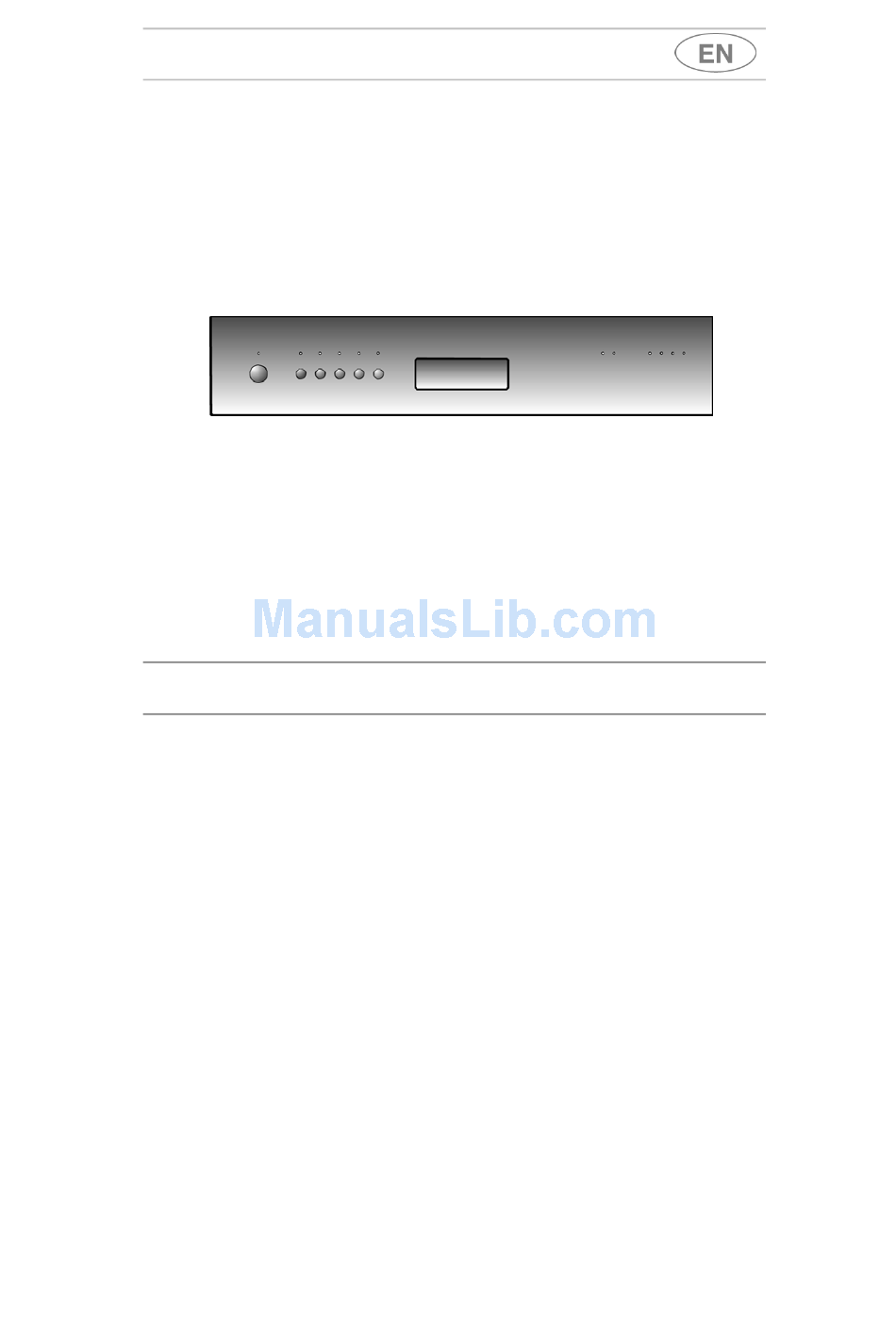

  • Page 1 INSTRUCTION MANUAL...
  • Page 2 Contents Description of the controls________________________________14 Troubleshooting _______________________________________21 Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher. The individual sections are laid out to provide you with a step-by-step guide to all your appliance's functions;...
  • Page 3 User instructions 1. Description of the controls 1.1 Front panel All the dishwasher control are grouped on the front panel. ON/OFF BUTTON SELECTION PROGRAMS BUTTONS (P1...P5) POWER ON LIGHT PROGRAMS LIGHTS NO SALT LIGHT (depending on the models) NO RINSE AID LIGHT (depending on the models) PHASES/PROGRAM LIGHTS RECESSED DOOR HANDLE...
  • Page 4 User instructions PROGRAM SELECTION TYPE AND GRADE DIRT PANS AND DISHES IN WAITING OF SOAK COMPLETING THE LOAD DISHES LIGHT NOT VERY DIRTY PANS AND DISHES NOT VERY DIRTY BUT WITH DRY RESIDUALS PANS AND DISHES NORMAL DIRTY AND WITH DRY RESIDUALS PANS AND DISHES VERY DIRTY AND...
  • Page 5 User instructions 1.2 Washing programs The dishwasher is equipped with a control panel, described in chapter "1. Description of the controls", from which it is possible to carry out all the power switch-on, switch-off and programming operations. Before starting a washing program make sure that: •...
  • Page 6 User instructions START PROGRAM To start the dishwasher, press the button of the PROGRAM (2) required for a few seconds, until the light of the first phase of the selected program starts to flash (confirmation beep). As the program runs, the PHASES/PROGRAM lights (7) will indicate the current cycle status.
  • Page 7 User instructions INTERRUPTION OF A PROGRAM In order to interrupt a running program it is necessary: • press one of the SELECTION PROGRAMS buttons (2), the light of the current phase will go out; • keep the button pressed until the PHASES/PROGRAM lights (7) come on (confirmation buzzer);...
  • Page 8 User instructions TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT • Always try to run the dishwasher fully loaded. • Do not wash the dishes in running water. • Use the washing program that is most appropriate for each type of load.
  • Page 9 User instructions ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an device for the user to adjust the water softening system according to the hardness of the water supply. According to the machine model, the selector which acts on the adjustment may be located: •...
  • Page 10 User instructions 2. Troubleshooting In case of a malfunction, the dishwasher will identify the program by switching on a combination of lights. When an alrm is present, all the PROGRAM lights (4) come on, while the PHASES/PROGRAM lights (7) identify the error code: CODE PHASES LIGHTS...
  • Page 11 INSTRUCTION MANUAL...
  • Page 12 Contents Safety and operating instructions __________________________28 Installation and hook-up _________________________________31 Operating instructions ___________________________________33 Cleaning and maintenance _______________________________46 Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher.

  • Page 13: Safety And Operating Instructions

    Safety instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE.
  • Page 14 Safety instructions IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT OPENINGS UNDERSIDE OBSTRUCTED. ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY. OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR CHILDREN (LOCKS, DOORS, ETC.).
  • Page 15 Safety instructions DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT IMMEDIATELY AFTER THE END OF A WASHING PROGRAM. OVER TIME, THE DISHWASHER HEATING ELEMENTS MAY CHANGE COLOUR, IN PART OR OVERALL. THIS IS PERFECTLY NORMAL AND DOES NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.

  • Page 16: Installation And Hook-Up

    Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.
  • Page 17 Installation instructions CONNECTING TO THE WATER SUPPLY Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter A supplied with the dishwasher. Take care to screw the hose firmly into place with your hands and then complete by tightening about ¼...

  • Page 18: Operating Instructions

    User instructions 3. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: • Adjust the water softening system; • Add the regenerating salt; • Add the rinse aid and detergent. 3.1 Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which...
  • Page 19 User instructions • Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system. • When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
  • Page 20 User instructions ADDING THE RINSE AID The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door. •...
  • Page 21 User instructions ADDING THE DETERGENT To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically. • When a INTENSIVE program is selected, in addition to the normal dose of detergent, it is necessary to add an additional amount inside compartment G or H.
  • Page 22 User instructions • The market offers liquid and powder detergents with differing chemical compositions, which may contain phosphates, or be phosphate-free but contain natural enzymes. - Detergents containing phosphates are more effective against grease and starch at temperatures above 60°C. - Enzyme detergents, on the other hand, are also effective at lower temperatures (from 40 to 55°C) and are more easily biodegradable.
  • Page 23 User instructions 3.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.
  • Page 24 User instructions Items which are not dishwasher-safe: • Wooden dishes, pots or pans: these may be damaged by the high washing temperatures. • Handcrafted items: these are rarely suitable for washing in a dishwasher. The relatively high water temperatures and the detergents used may damage them.
  • Page 25 User instructions 3.4 Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. EN 50242 STANDARD LOADS FOR CERTIFICATION BODIES LOWER BASKET UPPER BASKET UPPER BASKET for AAA models only (see energy label) The upper basket must be set in the low position.
  • Page 26 User instructions LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.
  • Page 27 User instructions CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
  • Page 28 User instructions UPPER BASKET It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.
  • Page 29 User instructions LOADING THE UPPER BASKET Load plates facing forward; cups, bowls etc. must always be facing downwards. The left-hand side of the basket can be loaded with two layers of cups and glasses. The centre can be filled with plates and side- plates, fitted upright into the supports provided.
  • Page 30 User instructions ADJUSTING THE UPPER BASKET The upper basket can be adjusted in two positions, according to the user’s needs and according to the height of the dishes in the lower basket. Proceed as follows. Pull-out version: • pull out the right-hand basket guide •...

  • Page 31: Cleaning And Maintenance

    User instructions 4. Cleaning and maintenance Before carrying out any work, always disconnect the appliance from the electrical power supply. 4.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces.
  • Page 32 User instructions CLEANING THE FILTER UNIT • It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; • push the centre filter D from the underside to remove it from the micro-filter: •...
  • Page 33 User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE: • Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. •...
  • Page 34 User instructions If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).
  • Page 35 User instructions TECHNICAL DATA Width 597 ÷ 599 mm Free standing: 600 mm Depth measured flush with the outer edge of the control panel Semi-integrated: 590 mm - Fully integrated: 570 mm Height (depending on models) Free standing: from 850 mm to 870 mm Semi-integrated and fully integrated: from 820 mm to 870 mm Capacity 12 Standard place settings...
  • Page 36 Misurarel’altezzadelpannellocomandi;farecoinciderel’indicerelativo a talevaloreconilprofilosuperiored ellaporta inlegno;tracciare ilposizionamentodegliagganciporta. Measurethe height ofthecontrolpanel;bringthemarkrelatingtothisvalueintolinewiththetopedgeofthewoodendoor;markthepositionsofthedoorconnections. Measurerlahauteurdupanneaudecommandes;fairecoïnciderl’index relatifàcettevaleuravecleprofilsupérieur delaporteenbois;tracerlepositionnementdescrochetsdelaporte. DieHöhedesBedienfeldsmessen;DiediesemWertentsprechendeMarkierungmitdemoberenProfilderHolztürzurDeckungbringen;DiePositionderTüraufhängungenanzeichen. Meetdehoogtevanhetbedieningspaneel;laatdemarkeringdiebijdiewaardehoortovereenstemmenmethetbovensteprofielvandehoutendeur;tekendepositievandedeurhengselsaf. Medir laalturadelpaneldemandos;hacercoincidirelíndicecorrespondienteadichovalorconelperfilsuperiorde lapuertademadera;trazarelposicionamientodelasbisagrasdelapuerta. Meçaaalturadopaineldecomandos;façacomqueoindicadorrelativoaestevalorcoincida comoperfilsuperiordaportademadeira;marqueaposiçãodosganchosparaporta. ATTENZIONE: Montare la porta e regolarelatensione delle mollelaterali primadell’installazione. IMPORTANT: Doortemplate, donotdestroy. Fit door and adjust hinge tension before installation. ATTENTION: Apres montàgedelaporte,reglerlatension des ressortslateraux avant l’installation.
