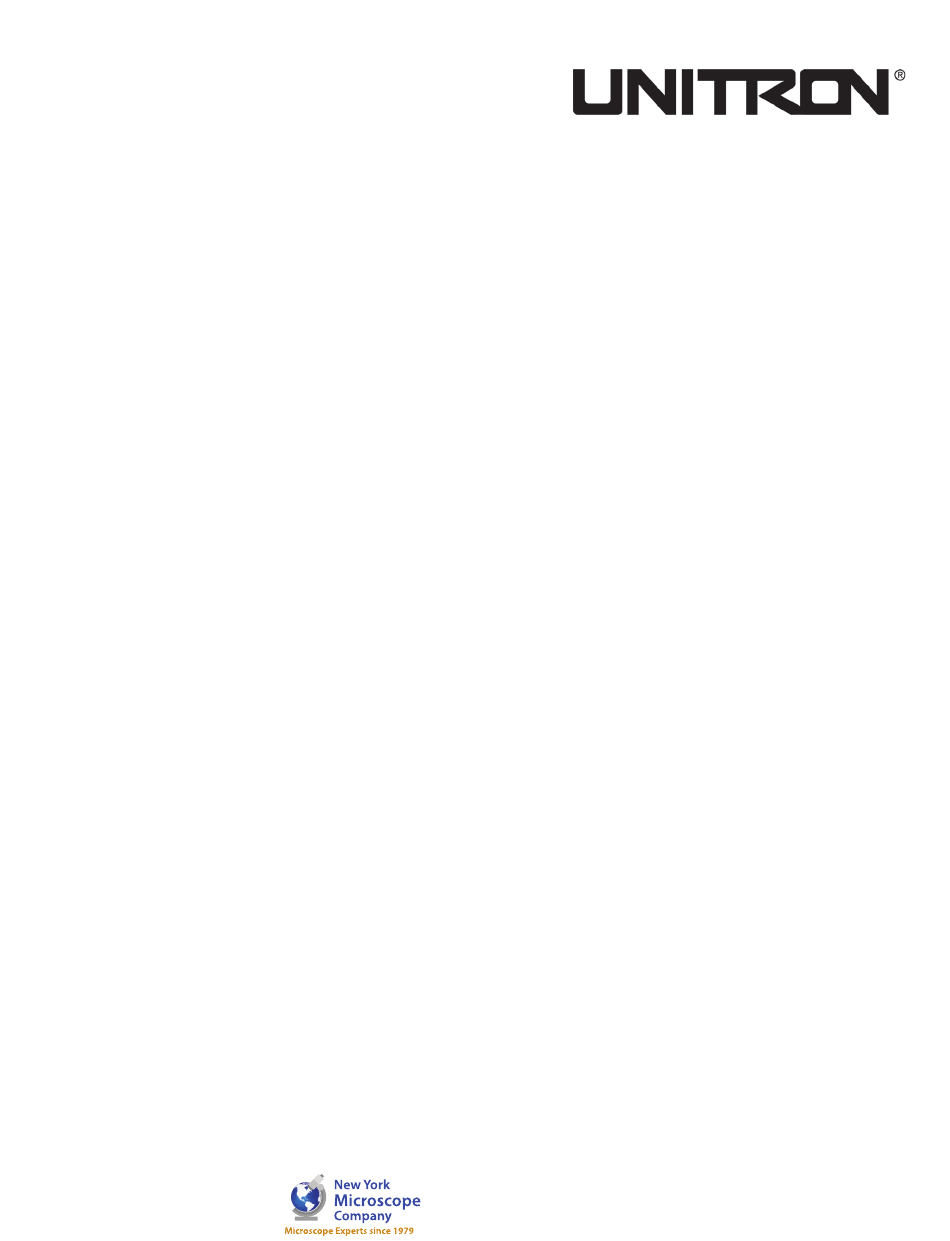

- Page 1 Operation Manual LED Ring Illuminators Models LED140 LED150 LED240 LED580 100 Lauman Lane, Suite A, Hicksville, NY 11801 Tel: (877) 877-7274 | Fax: (516) 801-2046 Email: Info@nyscopes.com www.microscopeinternational.com...
- Page 2 User Manual for LED Ring Lights: Models 140, 240, 580 & 150 Contents Symbols Warnings Description Basic Setup and Operation Service Procedures ESD Procedures Installing a Polarizer Analyzer Kit (SlimLine Series) Safety Procedures Troubleshooting Specifications Parts List Warranty UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
- Page 3 This symbol is intended to alert the user to the presence of important operating and servicing (maintenance) instructions. This symbol is intended to alert the user to the presence of hot surfaces that could result in burns to the user. This symbol is intended to alert the user to the presence of Ultraviolet Light which can be very harmful to the user. (See Safety Warning) UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
- Page 4 Do not look directly into the LED Ring when unit is powered. The high intensity focused beam of light may cause eye damage. Do not operate the UV version LED without proper glasses. UV rays are harmful. Use caution. Use only approved power supply (24V 0.75A) as failure to do so could result in damage to the LED’s. Do not make any technical modifications to the unit. Do not remove safety labels. Do not operate if liquid spills on unit and immediately remove power to the unit if fluid is spilled on unit. Do not attempt servicing the unit beyond the procedures described in this manual. UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
- Page 5 LEDs. The controller enclosure is made of flame retardant ABS plastic. The 140 Led Ring is made from a blend of Polycarbonate and ABS that provides a low cost safety protection for the user and the LEDs. The 140 does not require a controller. Input power to the unit is provided by a 24V 0.75A wall wart power supply. UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
- Page 6 Attach to Power The power supply is plugged into the wall socket and connected to the ring (140) or the controller (240 and 580). Basic Operation Turn the unit on by sliding the ON/OFF switch to the ON position. Adjust intensity by rotating the intensity control knob clockwise – note that there are two dimming knobs for the 580 controller – one for the inner ring of leds and one for the outer ring of leds. For the ProLine series select the quadrants you want to be active by pushing down on the representative quadrant control buttons. UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
- Page 7 User Manual for LED Ring Lights: Models 140, 240, 580 & 150 Service Procedures Do not attempt to repair the LED ring. UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
-
Page 8: Esd Protection Procedure
DO NO USE THE THIRD WIRE GROUND IN AN ELECTRICAL OUTLET TO PROVIDE ESD PROTECTION. EARTH GROUND IS PROVIDED USING A BRASS STUD WITH A ONE HUNDRED MEG OHM RESISTOR IN LINE. UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com... - Page 9 User Manual for LED Ring Lights: Models 140, 240, 580 & 150 Installing a Polarizer Analyzer Kit (SlimLine Series) UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
- Page 10 User Manual for LED Ring Lights: Models 140, 240, 580 & 150 UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
- Page 11 UV‐LED means any UV‐LED dice or packaged UV‐LEDs which emit ultra‐violet light whose peak wavelength is shorter than 400nm. UV light can cause skin damage, up to and including, skin cancer. 1 Do not look directly into the ultra‐violet LED (hereinafter referred to as “UV‐LED”) during operation of the device. 2 Always wear UV protective eyewear when handling the UV‐LEDs. 3 Always wear protective clothing to prevent UV‐LED exposure to skin. 4 Always instruct and warn all intended users of proper handling of the UV‐LEDs and all potential hazards. Always provide proper instructions, labels and warnings with your product in accordance, at 5 minimum, with the standards set forth by the International Electric Committee (IED). All UV light should be used in your product in such a way as to ensure that no direct exposure to 6 the UV light on the human body, particularly the eyes, is experienced. Always keep this product out of the reach of children and other untrained persons. 7 Always adhere to safety instructions and warnings, including any and all instructions set forth in 8 the Product Specifications. UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
-
Page 12: Troubleshooting
User Manual for LED Ring Lights: Models 140, 240, 580 & 150 Troubleshooting Problem Possible Cause Diagnosis Method Possible Solution No Light Bad Cable No visual or electrical test Replace Cable available – to confirm you may try switching a cable from an operating ring No Light Bad Conroller Switch controller with a known Replace controller operating controller No Light Bad Power Supply Switch power supply with Replace power supply known operating power supply UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com... - Page 13 240 ProLine 24VDC 0.75A 580 ProLine 24VDC 0.75A 580 ProLine 24VDC 0.75A 140 SlimLine 24VDC 0.75A Environmental Operating Temperature Non‐Operating Temperature Humidity Range Range Range 32 – 104 F (0 – 40 C) 0 – 120 F 0‐80% Non Condensing UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
- Page 14 ProLine Series LED Ring 1 1 Controller None 1 Power Supply 1 1 HDMI Cable None Certain ProLine 8xx models only ESD Cable If ESD Version Only If ESD Version Only UV Safety Glasses Not Applicable UV Models Only Polarizer / Analyzer Kit If Ordered If Ordered Mounting Adapter If Ordered If Ordered UNITRON 73 Mall Drive, Commack, NY 11725 ● 631-543-2000 (P) ● 631-589-6975 (F) ● www.unitronusa.com...
-
Page 15: Warranty
User Manual for LED Ring Lights: Models 140, 240, 580 & 150 Warranty UNITRON warrants this product to be free from defect in material and workmanship for a period of 12 months following original purchase. This warranty excludes any product which may have been misused, neglected, damaged, or altered –...
