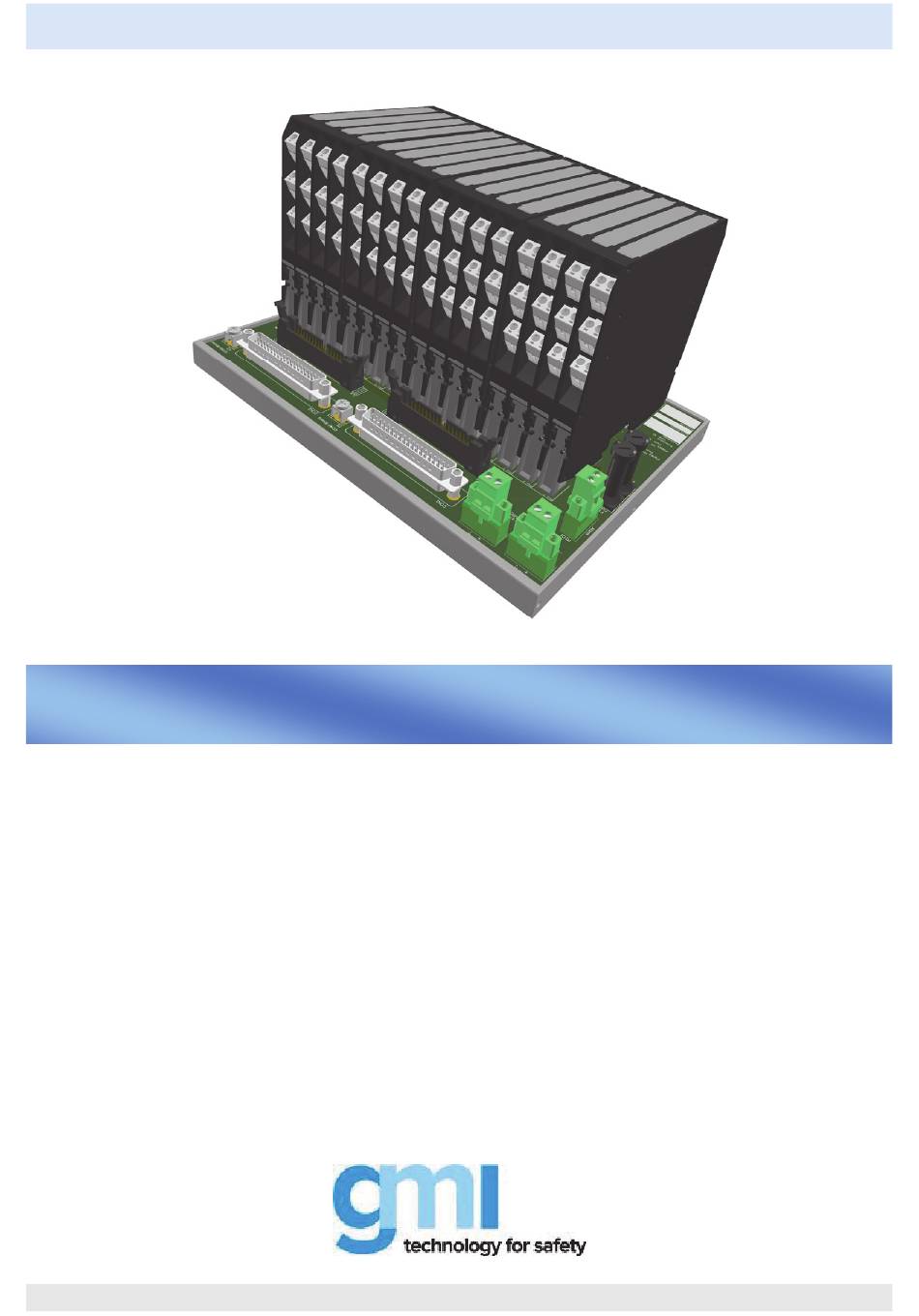

- Page 1 Termination Boards GMI type INSTRUCTION MANUAL Termination Boards GMI type Termination Boards GMI type G.M. International ISM0572-1...
- Page 2 This instruction manual refers to the following termination boards GMI type: MODEL PAGE TBE-D5016-GMI-001 TBE-D5008-GMI-001 Power supplies and faults For the following termination boards: TBE-D5016-GMI-001; TBE-D5008-GMI-001. Redundant power supply connections and LED indications are shown here below. 24 Vdc PWR 1...
- Page 3 Changing lever position Specific position for TBE-D50xx-GMI-xxx For the termination boards TBE-D5016-GMI-001, place the enclosure as shown in the following figures and fix each Plastic or Metal DIN-Rail clip to enclosure by 2 x M3 (10 mm) screws included on TBE-FIX set:...
- Page 4 DIN-Rail clip installation on termination board enclosure For the termination board TBE-D5008-GMI-001, place the enclosure as shown in the following figures and fix Plastic or Metal DIN-Rail clip to enclosure by 2 x M3 (10 mm) screws included on TBE-FIX set:...
- Page 5 Termination Board down firmly until fixed (see Fig.3). mounting foot and lever (see Fig. 4). Fig. 3 Fig. 4 Pull the termination board upwards and remove from DIN-Rail Push to engage G.M. International ISM0572-1 Termination Boards GMI type...
-
Page 6: Overall Dimensions
With 1 x Plastic DIN-Rail clip TBE-FIX-PL-001: With 1 x Metal DIN-Rail clip TBE-FIX-MT-001: 12 [0.5”] 12 [0.5”] 89 [3.5”] 51 [2.0”] 55 [2.2”] 85 [3.3”] 140 [5.5”] 140 [5.5”] All dimensions are expressed in millimeters [inches] Termination Boards GMI type G.M. International ISM0572-1... -
Page 7: Installation
Connection: 2 x 34-poles receptacle connector (require female mating connector). Installation: Cable: flat cable CABF032. Compatibility: TBE-D5016-GMI-001 is a Termination Board supported by an aluminum shell suitable for CE mark compliant, conforms to Directive: installation on EN/IEC60715 TH 35 DIN-Rail. 2014/30/EU EMC, 2014/35/EU LVD, 2011/65/EU RoHS. - Page 8 Termination Board Description Note : Do not mix D5000 Intrinsically Safe barriers with D6000 isolators on same termination board. Termination Boards GMI type G.M. International ISM0572-1...
- Page 9 28 (J18) 23 (CON1) 5 (CON1) 29 (J17) 30 (J17) 23 (CON2) 5 (CON2) 29 (J18) 30 (J18) 22 (CON1) 4 (CON1) 31 (J17) 32 (J17) 22 (CON2) 4 (CON2) 31 (J18) 32 (J18) G.M. International ISM0572-1 Termination Boards GMI type...
- Page 10 Connection: 1 x 34-poles receptacle connector (require female mating connector). Installation: Cable: flat cable CABF032. Compatibility: TBE-D5008-GMI-001 is a Termination Board supported by an aluminum shell suitable for CE mark compliant, conforms to Directive: installation on EN/IEC60715 TH 35 DIN-Rail. 2014/30/EU EMC, 2014/35/EU LVD, 2011/65/EU RoHS.
- Page 11 Termination Board Description Note : Do not mix D5000 Intrinsically Safe barriers with D6000 isolators on same termination board. G.M. International ISM0572-1 Termination Boards GMI type...
- Page 12 NEGATIVE (-) POSITIVE (+) NEGATIVE (-) NUMBER PIN NUMBER PIN NUMBER PIN NUMBER PIN NUMBER CON1 CON1 CON1: Shield terminal block pole: 24V pole: Ground pole: Unconnected poles: 2, 3. Unconnected poles: 33, 34. Termination Boards GMI type G.M. International ISM0572-1...
