SMART-HOUSE BTM-T10-230 User Manual

MAN BTM-T10-230:BTM-T10-230 MAN 20/05/11 15.26 Pagina 1
SPECIFIC TIONS
10.4" resistive 4 wires
Display type
230 nit (cd/m2)
Brightness
800 x 600
Resolution
Onboard VIA Eden V4
CPU
1G, optional Eden ULV 1.6G (8W)
Award, 512KB Flash BIOS
BIOS
VIA CX700M
System Chipset
VIA VT1211
I/O Chipset
One 200-pin DDR2 SODIMM
System Memory
socket, supports up to 1GB
DDR2 400/533 SDRAM
One CF socket by IDE
SSD
secondary slave channel
supports Type I / II Compact
Flash Card.
Reset: 1 min.~255 min. and
Watchdog Timer
1 min./step
VIA CX700M
Display
LCD Resolution up to 2048 x
LCD Panel
1536 @ 32 bpp (85Hz)
VIA VT1708A supports 2CH
udio
Audio
Dual RTL8100C Gigabit
Ethernet
LAN/10/100/1000 Base-Tx
Fast Ethernet compatible
Wireless Network 10 Base-T
Fast Ethernet Compatible
1 x RS-232, 2 x SATA, 1 Mini
IO
PCI, 2 x USB 2.0
1 x RS-232
COM Port
Dual RTL8110SC Giga LAN
Ethernet Port
(LPC-1201-E10/ LPC-1001-
E10)
One RTL8100C LAN (LPC-
1201-E05/ LPC-1201-E05)
1 x DB-15, 1 x DVI (optional)
VG / LCD Port
Line-out (Optional 2W AMP)
udio Port
2 x USB 2.0, optional 3 x
USB Port
USB 2.0
1 x PS/2 mini DIN (optional)
Mouse & KB
12V
Power Input
5A (60W)
Power Output
-10 to +40°C (14~104°F)
Operating Temperature
-20 to +75°C (-4~167°F)
Storage Temperature
5 to 90% @ 40°C (104°F),
Relative Humidity
relative humidity, noncondensing
259 x 188 x 38 mm
Dimension (W x D x H)
1.4 Kg
Weight
Desktop (VESA Compliance)
Mounting
SUPPLY SPECIFIC TIONS
Supplied by 12 VDC
Power supply
5 A / 60 W
Consumption

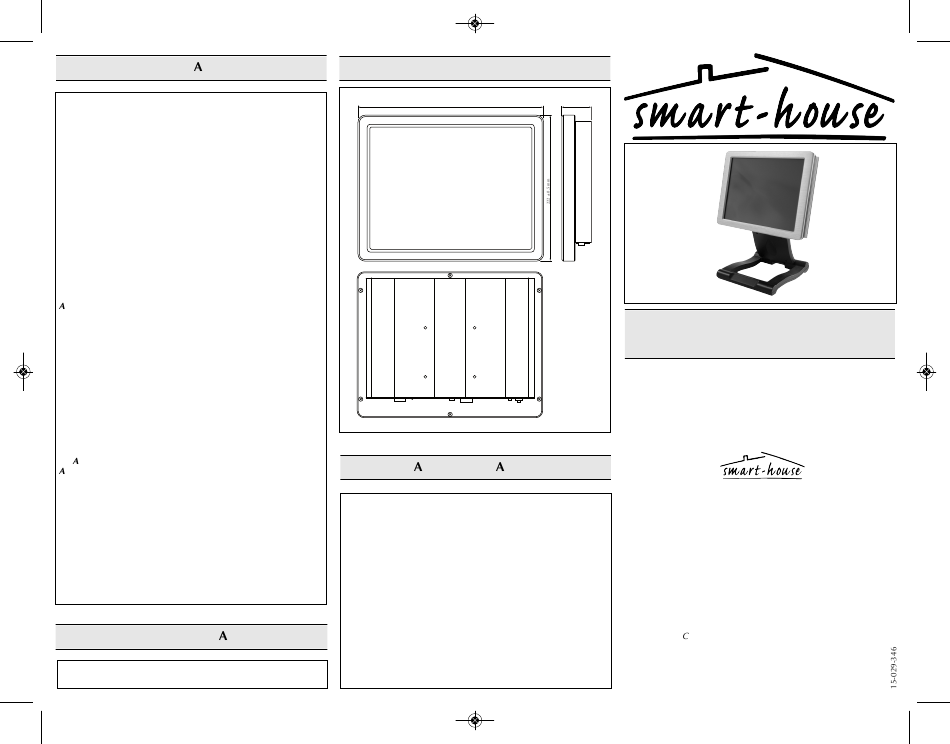

DIMENSIONS
283 ± 0.5 mm
S FETY PRECU TIONS
Warning!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronics
personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before touch-
ing the CPU card. Modern electronic devices are very sensitive to
static electric charges. As a safety precaution, use a grounding
wrist strap at all times. Place all electronic components in a stat-
ic-dissipative surface or static-shielded bag when they are not in
the chassis.
45 ± 0.5 mm
User Manual
Touchscreen
Type BTM-T10-230
Over Hadstenvej 40, DK-8370 Hadsten
Phone +45 89606100, Fax +45 86982522
ertified in accordance with ISO 9001
MAN BTM-T10-230 rev 10 08.09
