Summary of Contents for Pergamon CP-MGMS-S200

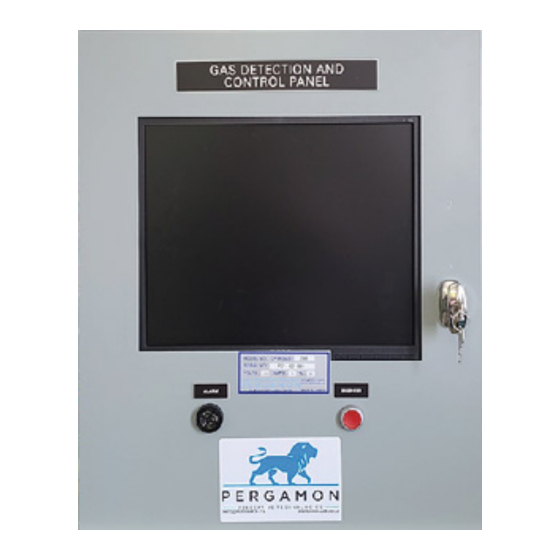

- Page 1 CP-MGMS-S200 OPERATION AND MAINTENANCE MANUAL Multi GAS MONITORING SYSTEM’S CONTROL PANEL IMPORTANT: keep these user instructions for reference .
- Page 2 No part of the hardware, software or documentation may be reproduced, transmitted, tran- scribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, without prior written permission of ©Pergamon Perceptive Tech- nologies.
-
Page 3: Table Of Contents
4.1.1.2.b Sensor Settings ....................28 4.1.1.2.C Sensor Menu .....................29 4.1.1.2: Sensor pinging.......................31 4.1.1.3. Relay output......................32 4.1.1.3.a Relay Timer .......................33 4.1.1.3.b Relay Sequencer....................34 4.1.1.4. Analog output .....................35 4.1.1.4.a Analog Menu .....................35 PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... - Page 4 5.2 Relay Bank state ....................47 5.3. Analog Bank state......................48 5.4. input management....................49 5.4 Maintenance mode....................50 5.4.1. setting a new configuration system..............51 5.4.2. Manage Device Address..................52 5.4.3. Add device.......................53 5.4.4. Replace Device......................54 PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 5: Safety Regulations
1.Safety regulations: 1.1. Liability informations: PERGAMON accepts no liability in cases where the product has been used inappropriately or not as intended. The selection and use of the product are the exclusive responsibility of the individual operator. Product liability claims, warranties as well as guarantees made by PERGAMON concerning this product are voided, if it is not used, serviced or maintained in accordance with the instructions in this manual. - Page 6 14- MGMS input and output modules have no user serviceable parts.In case of a failure, the item must be replaced using only manufacturer supplied parts. 15- The guarantee provided by Pergamon may be impaired or lost if the equipment is installed or used in an incorrect, unspecified or unauthorized way.
-
Page 7: Use Instructions And Limitations
/or analog modules . The CP-MGMS-S200 controller can monitor up to 256 sensors, including assorted sensor technologies such as electrochemical, infrared, pellistor and PID, or any combination thereof. The system contains three main mod- ules: the “CM-100”... -
Page 8: Modules
Outputs Voltage: 0–2 V, 0–5 V, 0–10 V Current: 0–20 mA, 4–20 mA Communication Shielded RS485 or LoRa wireless power and status LEDs and 8 Analog LEDs Indication PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 9: Installation Instructions
3.Installation Instructions 3.1 Location & Mounting The CP-MGMS-S200 should be installed with a 5 to 6 ft off the floor altitude in a centralized location that is accessible and protected from environmental elements . A Mechanical room, Alarm Control Room, or other similar areas are recommended. - Page 10 6: Connect the wires according to the technical drawing provided with the panel . Connect the wires according to the technical drawing provided with the panel . PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
- Page 11 Check the screen and make sure every thing is connected and working properly , you should be able to see something similar to the picture below: see something similar to the picture below: PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 12: Cabling & Wiring
DO NOT SUPPLY POWER TO CP-MGMS-S200 PANEL DURING INSTALLATION VERIFICATION ! 1. 1. Verify that the CP-MGMS-S200 controller is mounted at eye level and has adequate unobstructed clearance around the unit (at least 5 to 6 ft from the ground). - Page 13 Important: All transmitter terminal blocks, with communication and power, must be unplugged from the printed circuit boards during this procedure. At the CP-MGMS-S200 Controller measure the resis- tance (ohms) between the trunk cable RS-485 communication wires A and B for each trunk in the system.
- Page 14 ILLUSTRATION 1 communication wires and all terminal blocks must be disconnected from the printed circuit boards prior to measuring resistance. the measured result should be 120 ohms. ILLUSTRATION 2 PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 15: Snode Installation & Wiring
SENSOR BASE DOOR JUNCTION BOX PCB PROTECTION COVER SENSOR CARTRIDGES PAN HEAD SCREW #4-24 PAN HEAD SCREW #4-24 PAN HEAD SCREW # 8-32 NYLON SELF-RETAINING WASHER JUNCTION BOX SCREWS PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 16: Wall Mount
Using a screwdriver or an electric drill Unscrew the two 8-32 screws (9) until they detach from the screw- driver (or the electric drill) head. You will then be able to open the Door (2) of the SNODE box. HOLE 4 PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... - Page 17 TERMINAL 2 (BLACK) TERMINAL 3 (ORANGE) COMMUNICATION TERMINAL 4 (YELLOW) RS-485 STEP 4 : STEP 4 : Close and secure the door using the two #8-32 screws (item 9). PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 18: Junction Box Mount
(or the electric drill) head. You will then be able to open the Door (2) of the SNODE box. STEP 2: STEP 2: Remove the sensor cartridges from their base by squeezing the tabs on each side and gen- tly lifting them out. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... - Page 19 Unscrew #4-24 screws (7) then remove the PCB PROTECTION COVER (3) STEP 4 : STEP 4 : Unscrew the #4-24 screws (8) then remove the PRINTED CIRCUIT BOARD (PCB) PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
- Page 20 Pull the wires from the junction box through HOLE 3 and place them into their designated termi- nals . TERMINAL 1 (RED) 24 DC POWER TERMINAL 2 (BLACK) TERMINAL 3 (ORANGE) COMMUNICATION TERMINAL 4 (YELLOW) PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
- Page 21 Place back the PCB and secure it Using screws #4-24 (item 8) . STEP 8 : STEP 8 : Place the PCB protection cover and secure it using screws #4-24 (item7) PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
- Page 22 2- NO2 sensor on the right side. place each cartridge and push it in until you hear it “click”. Step 10 : Step 10 : Close and secure the DOOR . PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 23: Operations
4.1.1.1 Gas monitor menu: This Tab gives access to the System configuration and Network configuration , it also allows the User to verify the mapping, logs ,system and network configuration. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 24: 1.A. Mapping
8 Relay outputs. each Relay is if there are no sensors mapped to a configurable according to the alarm level : relay it shows “ not assigned” Low , High or Alert. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 25: 1.B. Logs
4.1.1.1.d. System Configuration: Allows access to the “General Settings” window showing the client informations , Snode and sensor numbers and the number of Relay and analog banks. (see picture below): PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 26: 1.E. Network Configuration
Choices between the possible modes (configurations) for the BACnet are given here “ UDP / IP” or “MS /TP” , the user will enter the appropriate information depending on the chosen mode ( see picture below): PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 27: Sensor
Located in the middle, the dynamic gauge will communicate the value of the sensor. Sensor Settings Sensor connection mode wireless & battery Sensor Connection mode wired Ping PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 28: 2.B Sensor Settings
The configure button will trigger a pop-up window which contains all the information concerning the sensor. The editable fields for each alarm level are the zone, level, delay and hysteresis. see picture be- low: PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 29: 2.C Sensor Menu
Upon right clicking the sensor box , a menu with three options appears. The user can either choose to configure the relay mapping, configure the sensors, or configure the analog mapping. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... - Page 30 When choosing the desired menu option, there are two scenarios: • If sensors are not selected before the right click, the user will be redirected to the sensor filter window . PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 31: 2: Sensor Pinging
• When the sensor is pinging , the Status Led on the Snode will show a flashing red light ( See picture below) , the light will keep flashing until another sensor is pinged or the ping icon is clicked again to stop the pinging. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 32: Relay Output
Relay forced ON: the Relay is activated . Relay Forced OFF: the relay is off. Relay Mode Auto: the relay is on or off depending on the condition fixed and the state of the sensor. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 33: 3.A Relay Timer
Shows the current state of the Relay 4.1.1.3.a Relay Timer : A choice of setting the timer will be given. Once the user wants to force the state of the relay. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 34: 3.B Relay Sequencer
To verify that the system is functioning properly , check the Status led on the Snode, the Controller , Relay and Analog cards , you should see them all flashing Amber. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 35: Analog Output
• Configure Analog: After clicking on configure analogs, the user will be invited to select the output nature for the selected analog devices. Then the type of Analog output can be set, once finished, click on ‘Apply’. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... - Page 36 To verify that the system is functioning properly , check the Status led on the Snode, the Controller , Relay and Analog cards , you should see them all flashing Amber. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 37: Mapping
( CO , NO2 , COM ..etc) Id Range: choose the desired sensor number to map. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... - Page 38 Relay bank window step5: click “Apply” and a confirmation message will appear on the screen . PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 39: Method 2
Left click in multiple sensor boxes to select multiple sensors , then right click and choose “ Relays mapping”, the Relay boards window will appear directly. step3: fill in the informations , then click “ Apply”. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 40: Method1
Just like Sensor to Relay mapping , there are two methods to this process : Method1: Selecting the sensor before choosing the “ Analog mapping” : Method2: choosing “Analog mapping” then choosing the sensors to map using the “ Filter Sensors” window.: PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... - Page 41 (see picture below), choose the desired output for each analog , then click “apply”. • a confirmation message will appear on the screen: PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 42: Mapping Relays To Sensors
Data as desired then click “Apply” • Mapped Relays list . • Alarm levels to assign to relays. • Sensor filter PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 43: Mapping Analogs To Sensors
Step3: Fill in the data as desired , keep in mind that all analog outputs selected must use the same option (“average” , “peak” or “minimum”) , then click “Next”. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... - Page 44 “ apply filter” , or click “ select one by one” and manually select sensors (see pic- tures below : Manually select sensors and click “ apply” PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
-
Page 45: Maintenance And Troublishooting
5. if the status led on the snode is flashing Amber , this indicates that the connection is established and the system is working properly. Reset button PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 46: Sensor Failed
4. if the power and status Leds on the Snode are off , this indicates an issue with the Snode and it should be replaced . 5. if the problem persists , contact Pergamon technical support at: +1 (833) 888-1560. - Page 47 • if the problem persists this means that snode is not communicating with the controller , this usually indicates a problem with the control- ler card. and it should be replaced. • if the problem persists , contact Pergamon technical support at: +1 (833) 888-1560. • Status LED indications: Solid Red: Error .
-
Page 48: Relay Bank State
2. check that the system’s configuration con- tains all the existing Relay cards. 3. if the problem persists, contact pergamon’s technical support at : +1 (833) 888-1560. 5.2.b Connection lost: • This means that there is no connection between the controller card ( CM-100) and the Relay card (RM-8) . - Page 49 . after the connection is suc- cessfully established , the Relay Bank should be in its working state. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4...
- Page 50 Relay card. 2. check that the system’s configuration con- tains all the exhisting Analog cards. 3. if the problem persists, contact pergamon’s technical support at: +1 (833) 888-1560. 5.3.c Connection lost : • This means that there is no connection between the controller card and the Analog card 1.
-
Page 51: Input Management
5.4. input management : The interface can manage many inputs (correct and incorrect) and will warn if a field caused an issue. For example: PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 52: Maintenance Mode
5.5 Maintenance mode : To log in to maintenance mode: from the gas monitor menu , choose maintenance mode. An admin password will be required PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 53: Setting A New Configuration System
The new configuration will be set once the current configuration has been erased. • for the new system configuration , the client informations and the system composition , will be required: PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 54: Manage Device Address
ID of each Sensor , Relay or Analog can be modified in this window. Upon clicking “Apply” , the ID will be applied to the system and its configuration will be saved as the latest ID configuration. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 55: Add Device
To add a device, enter the MAC address and the associated node ID, then click “Apply” . • There must not be two devices having the same node ID or Mac at the same time. PAGE 1560 Rue Chabanel O, www.pergamon.ca +1(833)888-1560 info@pergamon.ca Montréal, QC H4N 1H4... -
Page 56: Replace Device
To replace a device, select a node ID from the”Node ID” drop list and insert the new MAC address in the “New address MAC” field, then click “Apply”. For more information and/or Technical support , call Pergamon perceptive technologies at +1(833) 888-1560.
