Ace Energy ACE-BC004 User Manual

·
When the battery is fully charged (14.4V +/- 0.25V), LED 10
maintenance charging.
Mode 3: 6V Motorcycle mode (7.2 V +/- 0.25 V)
·
This mode is intended especially for 6V batteries with a capacity below 24Ah, e.g. for 6V motorcycle batteries.
·
To select this mode, press the MODE button (12)
(1A+/-10%), LED 3 is lit.
·
When the battery is fully charged (7.2V +/- 0.25 V), LED 10
maintenance charging.
Mode 4: 12V Motorcycle mode (14.4 V +/- 0.25 V)
·
This mode is intended especially for 12V batteries with a capacity below 24Ah, e.g. for 12V motorcycle batteries.
·
To select this mode, press the MODE button (12)
(1A+/-10%), LED 4 is lit.
·
When the battery is fully charged (14.4V +/- 0.25 V), LED 10
maintenance charging.
Mode 5: Lithium mode (14.4 V +/- 0.25 V)
·
This mode is intended especially for 12V Lithium batteries (LiFePO4).
·
To select this mode, press the MODE button (12)
(4.5A+/-10%), LED 1 & 2 is lit.
·
When the battery is fully charged (14.4V +/- 0.25 V), LED 10
maintenance charging.
Regeneration function:
This function is designed to regenerate deep-discharged batteries. It cannot be directly selected.
If a deep discharged rechargeable battery is connected to the charger, the regeneration mode is the first mode to start. Low
charging current are used to try and bring the deep discharged rechargeable battery to a normal battery voltage again. When the
battery reaches a normal voltage, the charger will continue charging using the regular process.
Defective rechargeable batteries
The charger recognises defective rechargeable batteries automatically. In this case the selected charging programme will not be
started. LED 7 is lit.
MODE SELECT
Press the MODE button (12) to activate or deactivate the selected mode.
CLEANING
Disconnect the battery charger from the battery and the mains voltage before cleaning it.
Clean the outside of the product with a clean, dry, and soft cloth.
Do not use aggressive cleaning agents to avoid discolouration.
SPECIFICATIONS
Operating voltage: 100-240V~ 50/60 Hz
Charge end voltage: 7.2V or 14.4 V or 14.7 (+/- 0.25V)
Charging current: 4.5A +/- 10% (AGM, Flooded & Lithium mode)
1A +/- 10% (6V & 12V motorcycle mode)
Rechargeable battery type: Any 6V or 12V lead-acid batteries (SLA batteries, AGM, gel)
12V Lithium batteries (LiFePO4)
Battery charge capacity: 1.2 - 120Ah
1.2 – 150Ah
Battery maintenance capacity:
Protection type: IP65 (casing)
lights up. The device automatically switches to
until LED 3 lights up. The charging process starts automatically
lights up. The device automatically switches to
until LED 4 lights up. The charging process starts automatically
lights up. The device automatically switches to
until LED 1 & 2 lights up. The charging process starts automatically
lights up. The device automatically switches to
4
USER MANUAL
ACE-BC004
6V / 12V 4.5A
AUTOMATIC CHARGER
--------------------------------------------------------------------------------------------------------------------------
OPERATING INSTRUCTIONS

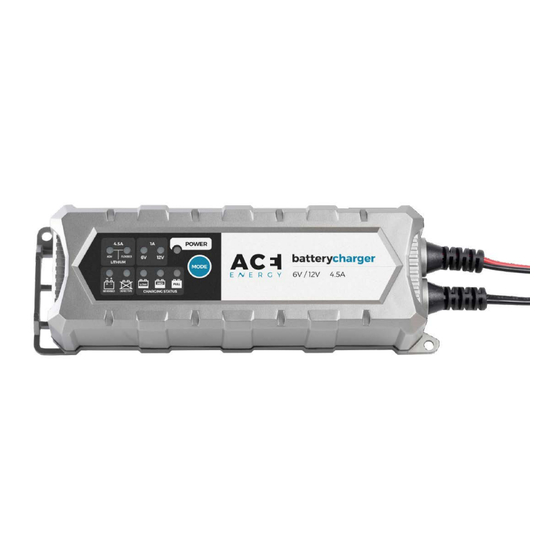

Intelligent Battery Charger
INTENDED USE
The product is designed to charge and maintain 6 or 12-V lead-acid and Lithium batteries with a capacity of 1.2Ah - 120 Ah. The
charger has been optimised to maintain the battery of your motorcycle or car when it is not being used over longer periods of
time, for example over the winter. The charger is designed to charge Lithium, Gel, AGM, and standard lead-acid batteries.
Any use other than that described above will damage this product and involves the risk of short circuits, fire, electric shock, etc.
PACKAGE CONTENTS
· Battery charger
· Operating instructions
· Cable with battery clamps
· Cable with o-ring connectors
· Cable with cigarette lighter plug
SAFETY INSTRUCTIONS
Please read through the operating instructions completely before operating the device. They contain important
information for correct operation. The warranty/guarantee will be void if damage is incurred resulting from
non-compliance with these operating instructions! We assume no liability for any consequential damage! We do not
assume any liability for damage to property or personal injury caused by improper use or the failure to observe the
safety instructions!
General
·
The unauthorized conversion and/or modification of the product is inadmissible for safety and approval reasons (CE).
·
The battery charger may only be operated with a supply voltage of 100-240 V~/50/60 Hz.
·
The product is not a toy. It is not suitable for children. Pay particular attention when children are present!
·
The product may only be set up, used or stored in places that are not accessible to children. Danger to life!
·
This product is only suitable for charging 6 and 12V lead-acid batteries or 12V Lithium. Never use it to charge different
rechargeable batteries (e.g. NiCd, NiMH) or even normal batteries! There is a risk of fire and explosion!
·
Maintenance, adjustments and repair work may only be carried out by a specialist/specialised workshop. Only use original
spare parts to repair the device. Using other spare parts can lead to significant material damage or personal injury!
·
Do not leave packaging material lying around carelessly. It might become a dangerous toy for children!
·
If you notice any damage, do not use the battery charger anymore.
Operation
·
Operation under adverse ambient conditions must be avoided under all circumstances. Adverse ambient conditions
include: ambient temperatures above 40 °C, flammable gases, solvents, vapours, dust, and relative humidity above 80 %.
·
Do not use the battery charger inside a vehicle. The battery charger must not be used in the vicinity of flammable
substances or gases.
www.ace-electronique.com
1
EN
