Juice Box (PDU) Features:
•
650w Combined Output – JB650W
800w Combined Output – JB800W
•
Fused DC outputs for fault protection
ensuring the surges will not damage
PDU circuitry.
•
Fuse LED indicators that inform the
user if a fuse has been blown for quick
troubleshooting.
•
Circuit breaker protection for NEMA
outlets and main PDU power.
•
Selectable ATX option to allow for
power management with ATX enabled
indicator LED.
•
3 USB ports (2x Class A & 1x Class C)
to drive low power peripherals.
•
Independent 24Vdc (6.5 A) output to
support high wattage peripherals (only
supported on the JB800W) with LED
indicator.
•
Limited 2-year warranty (parts and
Labor)
•
Engineered, assembled, and supported
in the USA.

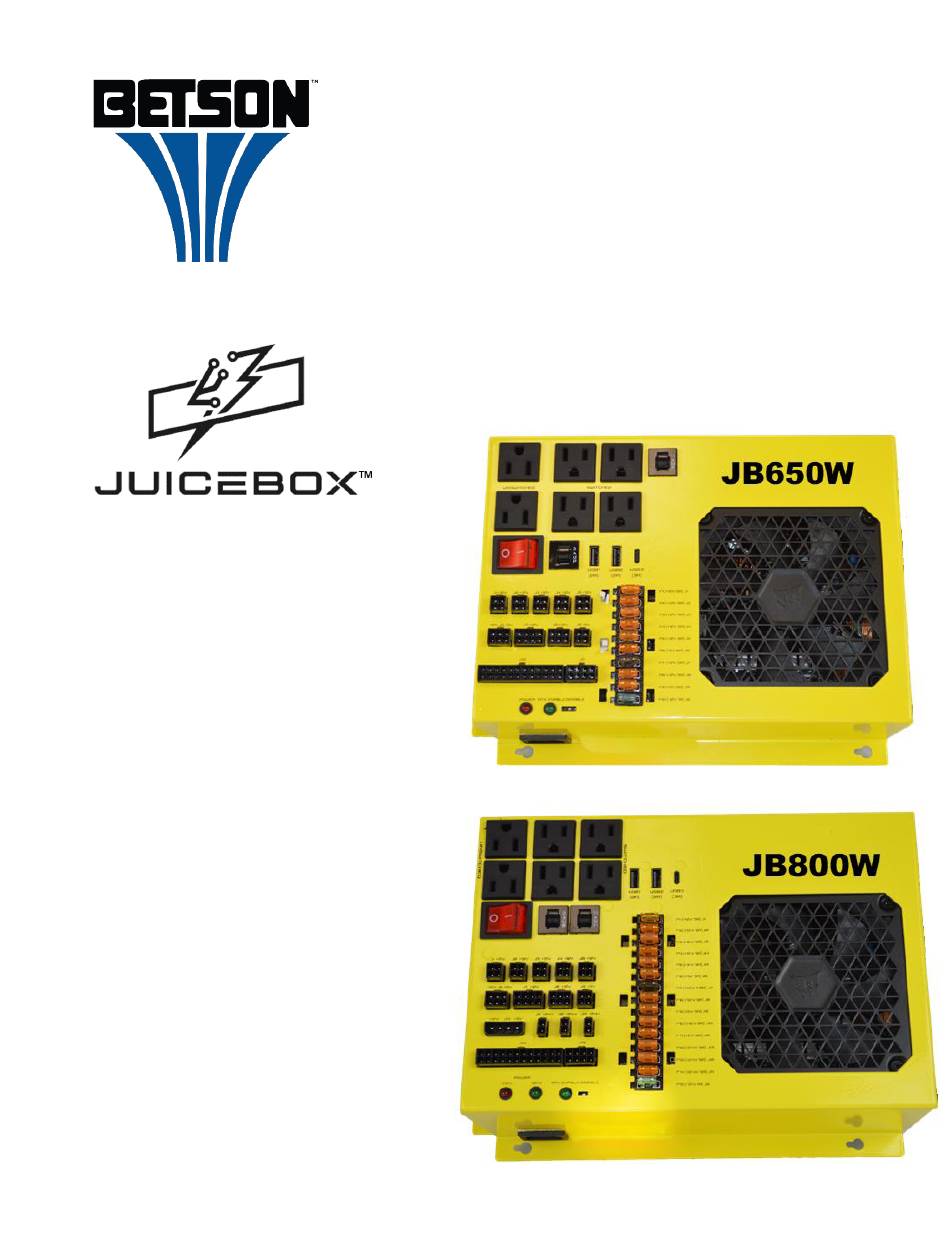

Rev A DOC11BETJB800W
Power Distribution Unit
JB650W / JB800W
Juice Box
User Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Juice Box JB650W and is the answer not in the manual?

Questions and answers

Summary of Contents for Betson Juice Box JB650W

  • Page 1 Juice Box Power Distribution Unit JB650W / JB800W User Guide Juice Box (PDU) Features: • 650w Combined Output – JB650W 800w Combined Output – JB800W • Fused DC outputs for fault protection ensuring the surges will not damage PDU circuitry. •...

  • Page 2: Safety Warnings

    Once you use this product, it is deemed that you understand, approve, and accept all terms and content in this document. Betson Enterprises is not liable for any loss caused by the user’s failure to use the product in compliance with this manual.

  • Page 3: General Description

    General Description Rev A DOC11BETJB800W...
  • Page 4 Technical Specifications Basic Information JB650W Net Weight 3.40 kg (7.5 lbs.) Dimensions (L x W x H) 279.4 mm x 203.2 mm x 88.9mm (11” x 8” x 3.5”) JB800W Unit Net Weight 4.08 kg (9.0 lbs.) Dimensions (L x W x H) 330.2 mm x 203.2 mm x 114.3mm (13” x 8” x 4.5”) Output Specifications •...
  • Page 5 DC Output Connectors Pin-Out with Fuse Key The DC output connectors pin-out, for each model, allows for ease of troubleshooting to diagnose power related problems. Each output has a supporting fuse to protect against amperage draw that exceeds the power supplies specification for that DC output, as identified by the Fuse Key (chart).

  • Page 6: Serial Number Identification

    Serial Number Identification Installations Prechecks Power Power Cable A main power cable is not included with the product based on the wide range of different connection requirements for every OEM. The connection to the Juice Box PDU uses a standard IEC60320–C13 connector with recommedned cable guage of AWG 16 or greater.

  • Page 7: Installation Instructions

    Installation Instructions Warning – Ensure power to the cabinet is removed (unplug machine from wall outlet) prior to installation or removal of the PDU. Power Ensure the main PDU power switch is “OFF” prior to connecting any power output harnessing to the PDU.
  • Page 8 This warranty period begins from the date of the original customer invoice. Betson Enterprises, Inc. does not warranty damage due to abuse, custom modifications, removal of parts, mishandling, or water/liquid ingress.

This manual is also suitable for:

Juice box jb800w
