Summary of Contents for Etic Telecom XELAN-110

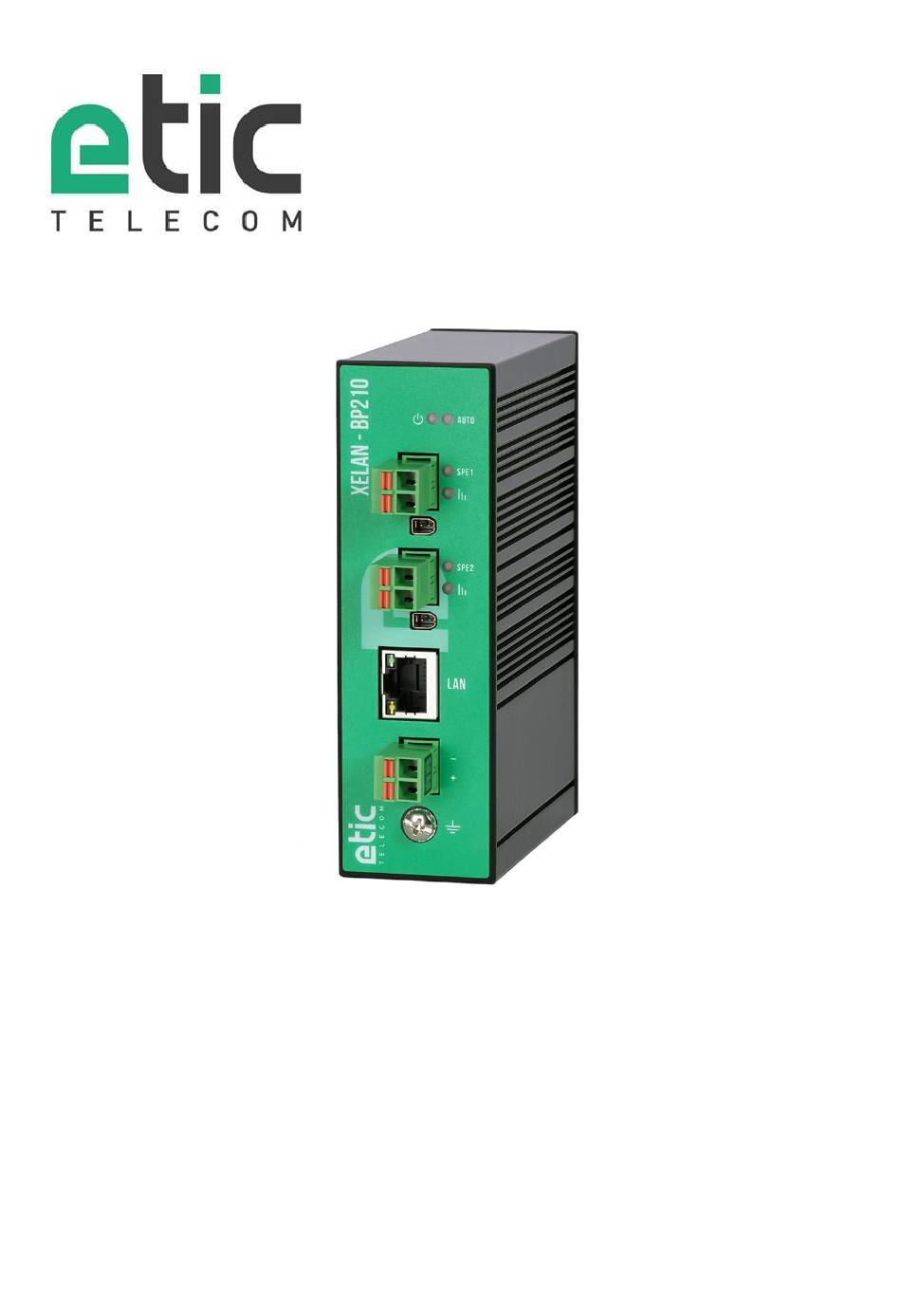

- Page 1 XELAN SPE Ethernet extendeur _________________ USER GUIDE _________________ DOC_DEV_XELAN_User guide_A...
- Page 2 The XELAN products family is designed and manufactured by ETIC TELECOM 405 rue Lavoisier 38330 MONTBONNOT SAINT MARTIN FRANCE TEL : + (33) (0)4-76-04-20-05 E-mail : hotline@etictelecom.com web : www.etictelecom.com Page 2 DOC_DEV_XELAN_User guide_A...
- Page 3 DECLARATION OF CONFORMITY The manufacturer, ETIC Telecom – 405 rue Lavoisier – 38330 Montbonnot Saint Martin – France, Hereby declares under sole responsibility that the listed products conform to the Electromagnetic Compatibility (EMC) Directive 2014/30/UE , the Low Voltage Directive (LVD) 2014/35/UE , the Restriction of the use of certain Hazardous Substances (RoHS) Directive 2011/65/UE.
-
Page 4: Table Of Contents
TABLE OF CONTENTS PRESENTATION ..........................5 Purpose of this manual ............................ 5 Products Identification ............................. 5 Specifications ..............................6 EMC & Environment compliances ........................7 Product overview .............................. 9 INSTALLATION ........................... 11 Description ..............................11 Dimensions ............................11 Sides ..............................12 Micro-switches ............................ -
Page 5: Presentation
2 km. The XELAN family consists of the models XELAN-110, XELAN-210 and XELAN-BP210. The XELAN-110 has 1 SPE port while the XELAN-210 and XELAN-BP210 have 2 SPE ports. The XELAN-BP210 also has the By-pass function. -
Page 6: Specifications
5 to 95 % relative (non-condensing) Protected against reverse polarity Power supply Nominal : 12-24 VDC (min 10 VDC - max 30 VDC) 2 points Phoenix type connector XELAN-110 : 0.5 W Consumption XELAN-210 : 0.75 W XELAN-BP210 : 1.2 W MTBF >500 000 h at 25 °C - MIL-HDBK-217F-N2 GB... -
Page 7: Emc & Environment Compliances
OVERVIEW EMC & Environment compliances EMC Immunity, EN61000-6-2 Standard Criteria Port Level pass EN61000-4-2 +/-4kv contact Enclosure +/-8kv air discharge EN61000-4-3 Enclosure 10V/M AM @ 1khz 80Mhz to 3Ghz Radiated EN61000-4-4 SHDSL +/- 2kv Burst Power supply +/- 2kv Ethernet +/- 2kv EN61000-4-5 +/- 5kv common mode (Normal and Telecom... - Page 8 OVERVIEW Climatic Standard Test Level -40 °C - 16 hours – Non-operating EN 60068-2-1 Cold -40 °C - 16 hours – Operating +85 °C - 16 hours – Non-operating EN 60068-2-2 Dry heat +70 °C - 16 hours – Operating -25 °C à...
-
Page 9: Product Overview
OVERVIEW Product overview The XELAN is a « Plug & Play » product. It does not require any configuration. Just make the different connections. The link is established almost instantly. Equipment located on either side of the line can communicate with each other as if they were connected locally. The XELAN is designed to operate in harsh environments, climatic and electromagnetic. - Page 10 OVERVIEW Daisy chain link with by-pass When the network is a daisy chain, the XELAN-BP offers a very useful function called the “By-pass function”. The XELAN-BP210 includes an electro-mechanical relay between both lines; that relay is automatically closed to connect the two lines when the XELAN-BP210 is switched off. For instance, if the XELAN #2 cabinet is switched off for maintenance, the by-pass relay inside the XELAN #2 will automatically connect the line coming from the XELAN #1 to the line going to the XELAN #3.
-
Page 11: Installation
INSTALLATION INSTALLATION Description Dimensions All dimensions in millimeters. Page 11 DOC_DEV_XELAN_User guide_A... -
Page 12: Sides
INSTALLATION Sides Front side Rear side LED indicators Micro-switches SPE terminal blocks * CEI 63171-2 SPE Connectors * DIN rail mounting CEI 63171-2 Ethernet connector Power supply terminal block Ground terminal *1 or 2 depending on model Micro-switches Micro-switches N° Function Position Position... -
Page 13: Connectors
INSTALLATION Connectors Ground terminal Description Symbol M4 screw terminal 2 positions screw terminal: Supply voltage Protected against reverse polarity Position Signal Function 12 – 24 VDC 2 positions terminal block : SPE1 & SPE2 Position Signal Function Line SPE line Line SPE line IEC 63171-2 connector : SPE1 &... -
Page 14: Led Indicators
INSTALLATION LED indicators LED indicators Depending on models Function Description Power off Operation Steady green Ready Startup – Otherwise hardware failure Steady red SPE auto-négotiation disabled Mode AUTO Vert fixe SPE auto-négotiation enabled Not connected SPE1 Steady green Connection established SPE connection Flashing Traffic on the link... -
Page 15: Safety Instructions
INSTALLATION Safety instructions The product shall be installed in a fire electrical resistant cabinet by a qualified operator. The product must be connected only to equipment that complies with the IEC60950-1 or IEC62368-1 standards and that meets the following classifications: IEC60950-1 : Limited power circuits and SELV type –... -
Page 16: Earthing
INSTALLATION Earthing The enclosure of the XELAN is metallic ; For safety and EMC reasons, the ground terminal must be connected to the protective earth of the installation. Preparing and checking the line Type of cable It is best to use a cable made of a single twisted pair. The range of the connection depends on the quality of the cable. -
Page 17: Connecting The Xelan To The Line
INSTALLATION Connecting the XELAN to the line The SPE signal is not polarized; the two wires of the twisted pair can be interchanged. Either the 2-point connector supplied as standard or an IEC 63171-2 connector supplied as an option will be used. -
Page 18: Commissioning
COMMISSIONING COMMISSIONING The commissioning procedure below describes the "Plug & play" mode, without the need to configure the micro-switches of the XELAN which corresponds to the most common cases. • Make sure that all micro-switches are on the OFF position. •... - Page 19 405 rue Lavoisier 38330 Montbonnot Saint Martin France Tel : +33 (0)4 76 04 20 00 contact@etictelecom.com www.etictelecom.com...
