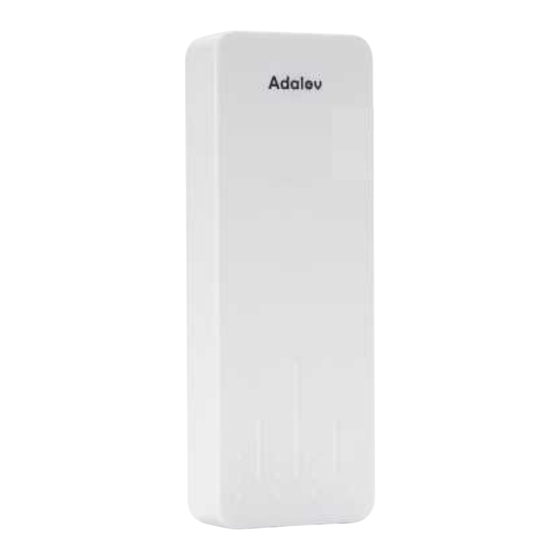

WIRELESS BRIDGE
USER MANUAL
Model: CPE662
Tips:
Thank you for ordering and using AdaLov CPE662 Wireless Bridges kit,
please read the manual carefully before use.If there are any problems
during the use, please contact us in time.
Customer Service Email: cs@adalovus.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPE662 and is the answer not in the manual?

Questions and answers

Summary of Contents for Adalov CPE662

  • Page 1 WIRELESS BRIDGE USER MANUAL Model: CPE662 Tips: Thank you for ordering and using AdaLov CPE662 Wireless Bridges kit, please read the manual carefully before use.If there are any problems during the use, please contact us in time. Customer Service Email: cs@adalovus.com...

  • Page 2: Table Of Contents

    Contents Chapter 1 - Get to Know About Your Wireless Bridge 1.1 Product Overview 1.2 Appearance 1.2.1 Port and Button Description 1.2.2 LED Explanation 1.3 Specifications Chapter 2 - Highlights Chapter 3 - Package Chapter 4 - Wireless Bridge Pairing & Installation 4.1 POE Power Supply 4.2 Master Bridge &...

  • Page 3: Chapter 1 - Get To Know About Your Wireless Bridge

    Chapter 1 Get to Know About Your Wireless Bridge 1.1 Product Overview WLAN Indicator SIG1-SIG4---Signal Light 1000Mbps LAN2 Port 100Mbps LAN1 Port PWR-- Power Indicator Power Indicator Digical Tube 1000Mbps LAN Port DC Jack Reset Button Slave Bridge Indicator A-B Button 100Mbps LAN Port cs@adalovus.com...

  • Page 4: Appearance

    1.2 Appearance 1.2.1 Port and Button Description Port or Buttons Description Pushing the button to “A” indicates that the bridge acts as the master bridge(transmitter),and pushing A-B Button the button to “B” indicates that the bridge acts as the slave bridge (receiver) Short press once to toggle a different character to Reset Button pairing;...

  • Page 5: Specifications

    1.3 Specifications Model CPE662 7620A+7612E+IP1001 8MByte Flash DDR2 64MByte DRAM Interface 10/100/1000Mbps LAN x 1 & 10/100Mbps LAN x 1 11a:54M,48M,36M,24M,18M,12M,9M,6Mbps 11n:7.2M,14.4M, 21.7M, 28.9M, 43.3M, 57.8M, 65M, Data rate 72.2M,14.4M, 28.9M, 43.3M, 57.8M, 86.7M, 115.6M, 130M, 144.4Mbps, 433Mbps Direct Sequence Spread Spectrum(DSSS)

  • Page 6: Chapter 2 - Highlights

    11. Support 24V POE power supply,easy to install and deploy; 12. Support WEB GUI access. Chapter 3 - Package Package Included: 3 x CPE662 Wireless Bridges, 3 x POE Adapters, 3 x Metal Cable Ties, 3 x Network Cables, 1 x User Manual.

  • Page 7: Chapter 4 - Wireless Bridge Pairing & Installation

    Chapter 4 - Wireless Bridge Pairing & Installation 4.1 POE Power Supply The CPE662 wireless bridge adopts a POE power supply, which is easy to Install and manage while saving costs. (1) According to the requirements, prepare along enough network cable (Recommended within 20 meters, must Cat 5e network cable to connect the wireless bridge and the POE power supply.
  • Page 8 2. Short press the reset button to change the channel from 0-9, A-F, the LED indicator will display the numeric to show what channel it is, please keep the master and slaves bridges in the same channel. master bridge Slave Bridge 1 slave bridge 2 3.

  • Page 9: Master Bridge & Slave Bridge Installation

    4.3 Master Bridge & Slave Bridge Installation 4.3.1 Install Wireless Bridge Diagram PoE Adapter Camera 4.3.2 Installation Steps: 1. Put the bridges front side face to face in the same direction, then use the ties to fix the CPE. (Note: the bracket is not included in the package). 2.
  • Page 10 4. Slave Bridge (or slaves bridges) Connection: PoE-Charger Router CPE-B Step 1: The POE port of the POE adapter connect to the POE/LAN port of slave bridge through an Ethernet cable. Step 2: The LAN port of the POE adapter connect to the LAN port of the computer or router by another Ethernet cable.
  • Page 11 (1) Point-to-Point Diagram (2) Point to Multi-point Diagram(Up to 8 slave bridges) Note: There is only one Master bridge,and others all Slave bridges. Slave Birdge Computer IP Camera Master Bridge 60° IP Camera Note: (1). The slave bridges must in the front of the master bridge; (2).

  • Page 12: Chapter 5 - Application

    Chapter 5 - Application 5.1 For Network Extend Diagram: Internet Slave Bridge Computer Master Bridge 60° Computer Router 5.2 For Video Transmission Diagram: 60° Master Bridge IP Camera Slave Bridge cs@adalovus.com...

  • Page 13: Chapter 6 - Computer Access

    Chapter 6 - Computer Access 6.1 Modify Computer’s IP POE Charger 1. Refer to the figure left to connect the CPE to the computer through a POE adapter and an Ethernet cable. 2. Modify your computer's IP address, make your computer's IP a bridge's IP address be on the same network segment(LAN), so that you can access them.
  • Page 14 Select Ethernet and click “Change Adapter Options” Find the network connection you are using, right click it and select “Properties” cs@adalovus.com...
  • Page 15 Double-click the “Internet Protocol version 4(TCP/IPv4)” go to IP configure interface cs@adalovus.com...

  • Page 16: Login Via Browser

    Configure your computer IP address as 192.168.255.x (x is a figure 0-200). Note: The Pc’s IP can not be the same as the bridge. 6.2 Login via browser Open the browser and enter the IP address of the wireless bridge to access, for example, enter “192.168.255.101“ on the browser address column, you can access your bridge control panel.
  • Page 17 A login screen will appear, by default, the Username and Password of the wireless bridge all are "admin". Note: “admin” is not the password of the WiFi SSID, it is just the password for WEB access. cs@adalovus.com...
  • Page 18 Digital & IP Chart Digital & A - IP B - IP 5.8G ID WiFi SSID Password IP Chart 192.168.255.100 192.168.255.200 CPE5G_5G0 zllinkcpe1234560 192.168.255.101 192.168.255.201 CPE5G_5G36 zllinkcpe12345636 192.168.255.102 192.168.255.202 CPE5G_5G40 zllinkcpe12345640 192.168.255.103 192.168.255.203 CPE5G_5G44 zllinkcpe12345644 192.168.255.104 192.168.255.204 CPE5G_5G48 zllinkcpe12345648 192.168.255.105 192.168.255.205 CPE5G_5G120 zllinkcpe123456120...

  • Page 19: Chapter 7- Advanced Settings

    Chapter 7 - Advanced settings Can turn on/off "Hide SSID", modify the SSID name and WiFi password , click "Apply" to complete the setting. cs@adalovus.com...
  • Page 20 Can modify the two bridge’s IP , click"Apply" to complete the setting. Can modify the bridge’s Administrator Login name and Password, click "Apply" to complete the setting. cs@adalovus.com...
  • Page 21 Reset the bridge. cs@adalovus.com...

  • Page 22: Chapter 8 - After-Sales Service

    Chapter 8 - After-Sales Service 1. The installation of this device requires network knowledge, if you can not install it, please contact us or ask a professional for help, if the product you receive is damaged or miss any accessories, please contact us for exchange or resend. 2.
