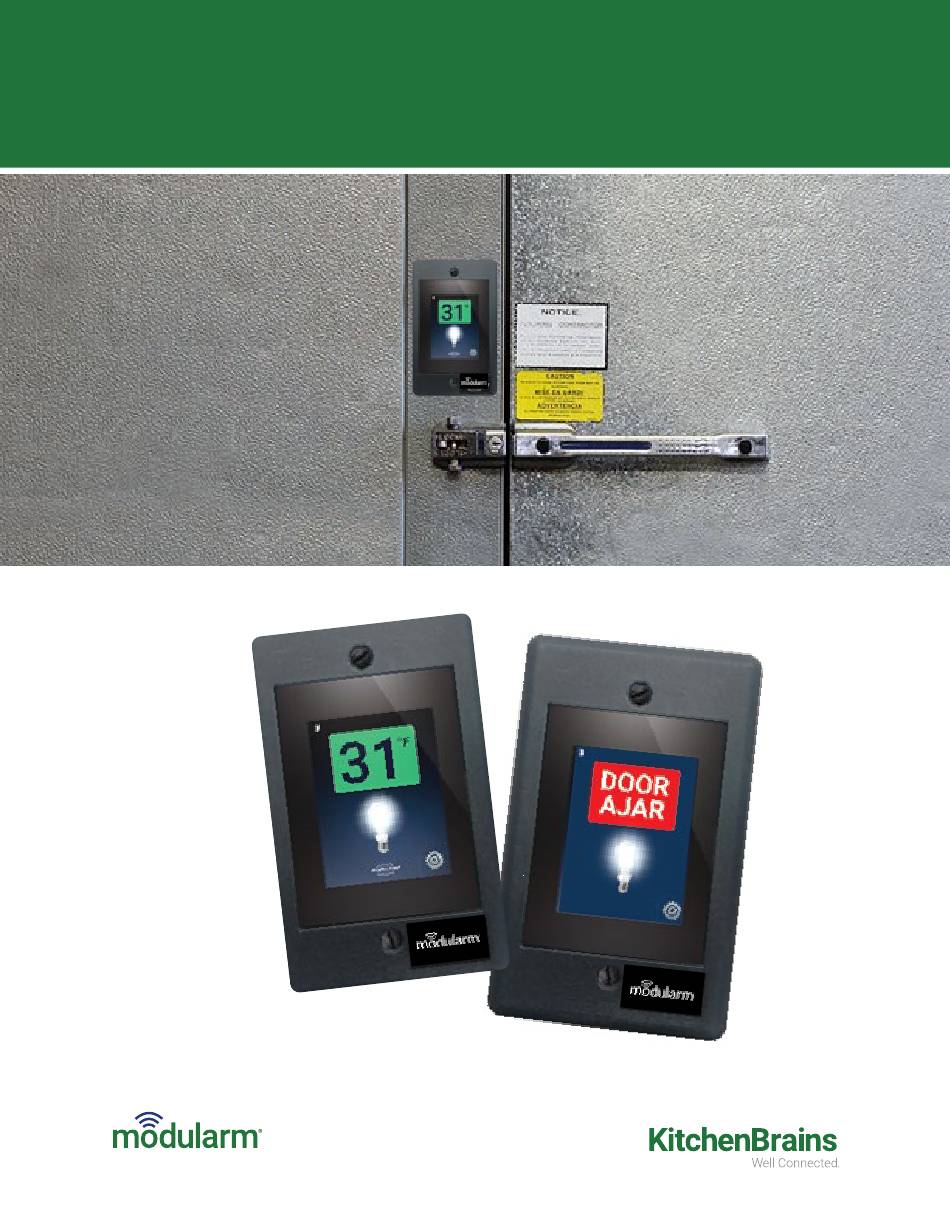

- Page 1 A N D 7 5 L C T L E A D L A G ( LL) I N S TA L L AT I O N A N D OP ER AT IN G M ANUAL A KITCHEN BRAINS BRAND...
-
Page 2: Table Of Contents
17-19 75LCT-LL LEAD LAG MODULE ONLY LEAD-LAG MODULE STANDARD ACCESSORIES AND BUILDING CONNECTION SCHEMATIC 75LCT TOUCH SCREEN Modularm 75LCT Standard accessories and building connection Schematic 75LCT APP 21-22 SPECIFICATIONS This document contains confidential information. Dissemination, publication, copying, or duplication of this document or software described herein without prior written authorization is strictly prohibited. -
Page 3: Product Overview

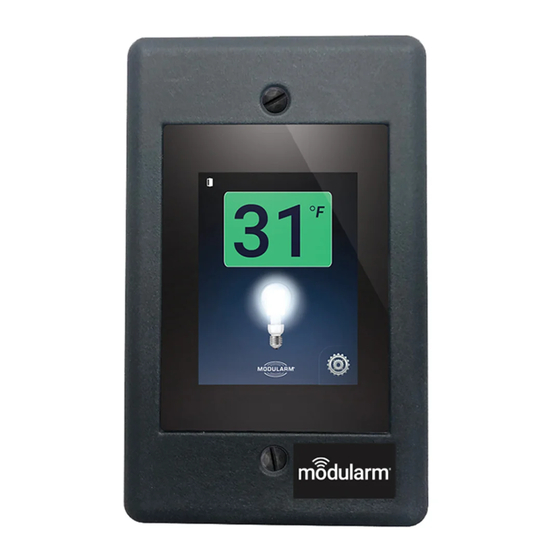

MODULARM MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® ® PRODUCT OVERVIEW 75LCT The 75LCT can provide temperature, door ajar, AC failure and panic alarms with touch screen convenience. The system saves energy, improves efficiency, reduces coil icing, lowers maintenance costs and helps to maintain product integrity. -
Page 4: 75Lct-Ll Lead Lag
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OVERVIEW 75LCT-LL LEAD LAG The 75LCT-LL Lead Lag unit is used when two refrigeration systems are installed in applications that require a backup refrigeration system in the event of a system failure. The 75LCT will alert the operator and switch to the fallback system to avoid spoilage or an elevated temperature condition. -
Page 5: Product Accessories
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® PRODUCT ACCESSORIES The accessories listed below connect directly to, and are powered by, the 75LCT. These accessories may be used individually, or in combination, to meet the unique requirements of each installation. AUTODETECT TECHNOLOGY is standard on the 75LCT and automatically senses and integrates connected Modularm accessories into device operation without requiring any programming. -
Page 6: Product Features
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® PRODUCT FEATURES AC POWER FAILURE ALARM • 75LCT “chirps” every 30-seconds • “Power Failure” displays on screen • For power failures less than one-minute: - Normal operation restores automatically - Incident is ignored •... -
Page 7: Product Operation
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OPERATION Follow the Operating Instructions that relate to the Accessories included in your 75LCT System. LIGHTING CONTROL OPERATION WITHOUT ACCESSORIES There are two options for controlling lights: REGULAR TIMED LIGHTING (default) •... -
Page 8: Lighting Control And Panic Operation With Ip-1 Installed
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OPERATION LIGHTING CONTROL AND PANIC OPERATION WITH IP-1 INSTALLED There are two options for controlling lights: PATENTED TIMED LIGHTING (with AUTOPANIC enabled) • To turn lights on and activate the lights-off timer and AutoPanic alarm, press the “Light” button on the 75LCT - IP-1 beeps and blinks for 40 seconds (when set to Timed Control) - Press the IP-1 within 40 seconds to:... -
Page 9: Lighting Control And Panic Operation With Ip-1 And Mc-1 Installed
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OPERATION LIGHTING CONTROL AND PANIC OPERATION WITH IP-1 AND MC-1 INSTALLED There are two options for controlling lights: PATENTED TIMED LIGHTING (with AUTOPANIC enabled) • Open door to turn lights on •... -
Page 10: Lighting Control And Panic Operation With Ip-1, Mc-1 And Md-1 Or Md-1+2 Installed
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OPERATION LIGHTING CONTROL AND PANIC OPERATION WITH IP-1, MC-1 AND MD-1 OR MD-1+2 INSTALLED There are two options for controlling lights: PATENTED TIMED LIGHTING (with AUTOPANIC enabled) • Open door to turn lights on •... -
Page 11: Configuration Mode
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® CONFIGURATION MODE VIEW SETTINGS: Displays the settings for the following parameters currently programmed in the 75LCT for a quick glance. Each parameter will have its own setup screen, as well as input limits (as defined in Table 2). Date –... -
Page 12: Sleep Mode
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® CONFIGURATION MODE SLEEP MODE: To restore Sleep Mode if the 75LCT has been powered up: RUN MODE + MENU - SLEEP DOOR CLOSED View Settings Program Powering Off Sleep LIGHT OFF Connect 1. -
Page 13: 75Lct Returns To Run Mode After 10 Seconds Of Inactivity
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® CONFIGURATION MODE 75LCT RETURNS TO RUN MODE AFTER 10 SECONDS OF INACTIVITY RUN MODE + PREVENTATIVE MAINTENANCE INSPECT COIL FEATURE Sleep Clean Condenser Clean Condenser Connect Inspect Coil Inspect Coil Prev. Maint. Test ®... -
Page 14: The Two Relay Modes Are
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® THE TWO RELAY MODES ARE: Unlatched - Default Setting. Relay activates when alarm occurs and deactivates when Silence is pressed. Typical Application: Controlling a remote buzzer or light 1. Press Gear Button to access menu 2. -
Page 15: Idle Mode Operation
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® 75LCT-LL LEAD LAG IDLE MODE OPERATION: • Ability to switch and latch on the alternate system in the event of a SYSTEM failure and the 75LCT operation sees an elevated temperature condition •... -
Page 16: Programming
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® 75LCT-LL LEAD LAG PROGRAMMING: DISABLED View Settings Program Sleep LEAD LAG ENABLED Connect ® 1. Press Gear Button on screen 2. Scroll down to Lead Lag option in menu programming 3. The “Lead Lag” parameter can be enabled/disabled here - If disabled, the logic will continually latch SYSTEM A output - If enabled, the time intervals shown below will be available to switch the relay operation 4. -
Page 17: Installation, General Safety Measures And Product Limitations
• All personnel operating, maintaining, repairing or interfacing with the Product must be instructed in the use of the Product and provided with the Instructions, which are accessible on the Kitchen Brains website at www.kitchenbrains.com. • WARNING: Hazard of electric shock! Power sources must be turned off or otherwise disconnected prior to installation or servicing of the Product. - Page 18 MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® INSTALLATION,GENERAL SAFETY MEASURES AND PRODUCT LIMITATIONS Mounting the Any enclosure used for 75LCT mounting must provide multiple wire access hubs for running line voltage Enclosure For wiring and low voltage wiring in separate conduits. Determine the wire access hubs to be utilized for the the 75LCT installation and plug and seal any remaining unused openings with hardware and/or sealant.
-
Page 19: 75Lct-Ll Lead Lag Module Only
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® INSTALLATION GENERAL SAFETY MEASURES AND PRODUCT LIMITATIONS Mounting method will vary depending on the type of contacts utilized. Make sure that the operating gap Magnetic Contacts Mounting between the magnet part and the switch part of the contacts accurately detects a door open or a door closed condition. -
Page 20: 75Lct Touch Screen
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® 75LCT TOUCH SCREEN MODULARM 75LCT STANDARD ACCESSORIES AND BUILDING CONNECTION SCHEMATIC LINE VOLTAGE CONNECTIONS POWER SUPPLY LIGHTS 120VAC/240VAC 600W MAX SLOW BLOW FUSE 1A350VAC NEUTRAL/PHASE 2 (WHITE) LINEL/PHASE 1 (BLACK) LIGHT SOURCE (RED) -
Page 21: 75Lct App
75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® 75LCT TOUCH SCREEN MULTI-MONITOR APP Use this app to update the Kitchen Brains Modularm 75LCT Multi-Monitor to the latest firmware version via ® Bluetooth connection. 1. LOCATE THE APP • In the Apple App Store or Google Play on your mobile device, insert “Modularm”... - Page 22 MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® 75LCT TOUCH SCREEN MULTI-MONITOR APP 8. ENABLE BLUETOOTH AND PAIR DEVICE Unknow MAC address : FE1444A3-B065-Fo3-... • You will need to verify that your Bluetooth is enabled Unknow MAC address : FE1444A3-B065-C5C33-... Connecting To Device on the 75LCT, then press the Bluetooth icon (Step 7: Unknow...
-
Page 23: Specifications
MODULARM 75LCT TOUCH SCREEN MULTI-MONITOR | OPERATING MANUAL ® SPECIFICATIONS 75LCT-LL Lead Lag 231-40032 OVERALL DIMENSIONS DIMENSIONS LEAD LAG RELAY (LL Installs Only) SCALE:1/4 9-2-21 120/240VAC @ 6 AMP; 28VDC @ 6 AMP 10.72” L x 4.77” W x 2.05” D POWER SUPPLY 1.98 2.05... - Page 24 In the U.S., Canada and the Caribbean 1-800-327-8766) 1-800-FASTRON ( Elsewhere 1-203-377-4414 saashelpdesk@kitchenbrains.com 905 Honeyspot Road, Stratford, CT 06615 kitchenbrains.com 203-377-4414 800-327-8766 CONNECTICUT | FLORIDA | LONDON | SHANGHAI | SINGAPORE © 2021 Kitchen Brains Confidential Proprietary Information Duplication Prohibited 229-40031B...
