ALLION AL4830-GAUGE User Manual

USER MANUAL
AL4830-GAUGE
ALLiON BATTERY MONITOR
Included in the package:
1 x Battery Monitor
1 x CAN Communication & Power Cable (3m)
1 x CAN Termination Connector
Introduction

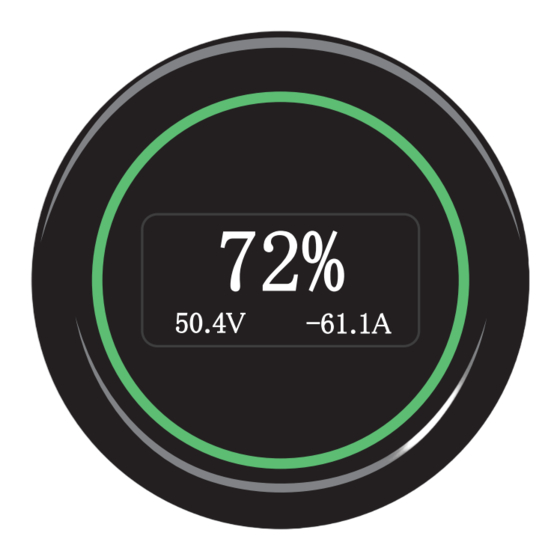

The ALLiON AL4830-GAUGE Battery Monitor
communicates directly with the Battery Management
System via the CAN (Controller Area Network) to display
battery status information for the ALLiON AL4830BT.
The information displayed is as follows:
• State of Charge (%)
• Battery Voltage (V)
• Current Flow (A)
Warnings & Safety
•
•
•
•
•
•
•
AL4830-GAUGE Specifications
Voltage Range
Power Consumption
Baudrate
Display Size
Display Resolution
Operating Temperature
IP Rating
CAN Communication & Power Cable
For any product questions, please contact
your nearest R&J Batteries branch.
Read this manual carefully before installing or using
the product.
Keep the manual in a safe place so it can be referred to
as required.
Any damage or injury as a result of misuse is the
responsibility of the user.
The information in this manual is subject to change
without notice.
Do not use input voltages which are outside of the
specified range.
The device should be installed by a professional
technician.
Do not disassemble the battery monitor.
// rjbatt.com.au
// rjbatt.co.nz
9-72V DC
0.3W
125Kbits/s
1.3 inch OEL display
128 x 64
-40ºC to 85ºC
IP65
