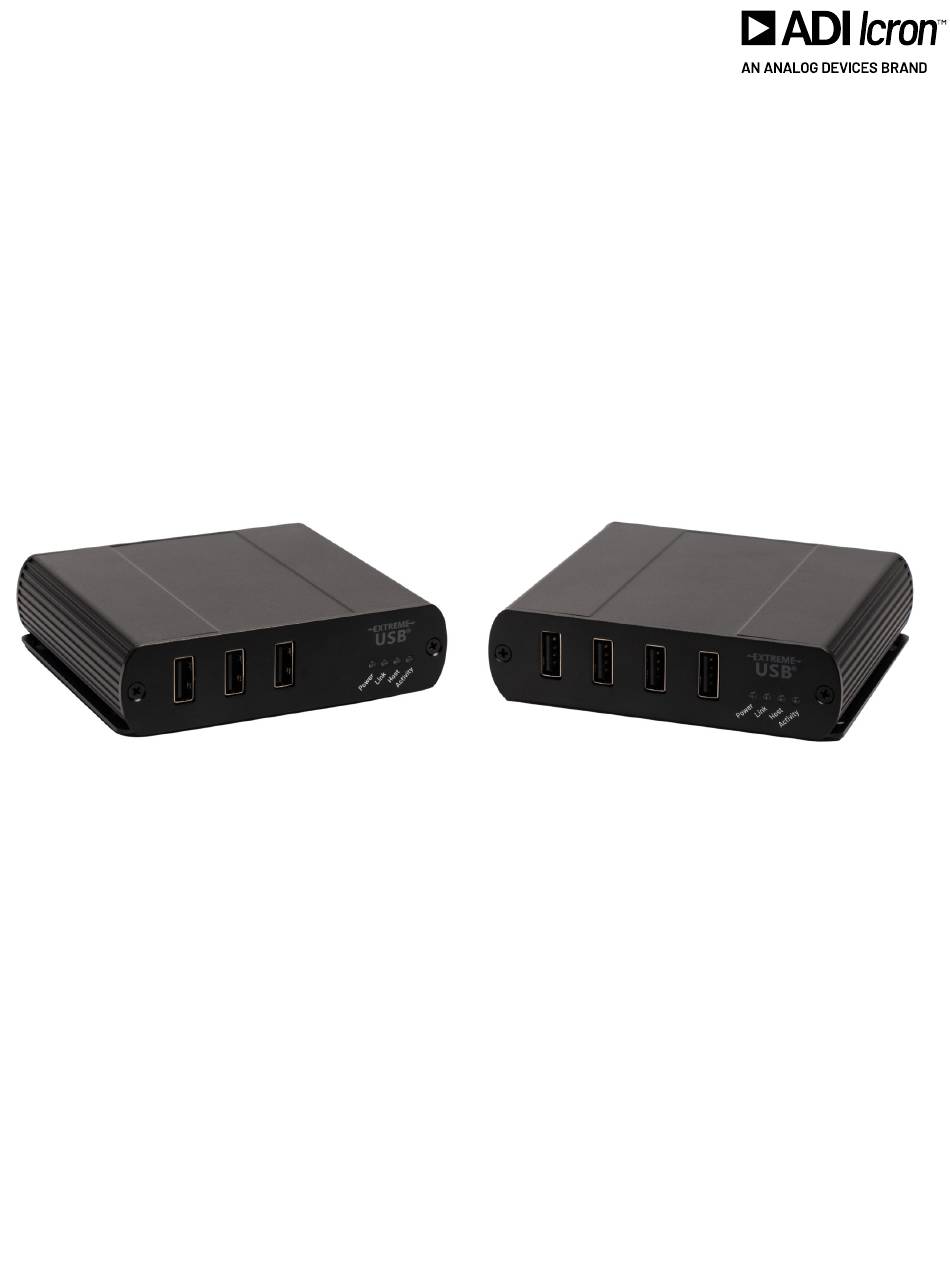

- Page 1 User Guide USB 2.0 RG2304SP 4-Port USB 2.0 Simultaneous Users Interaction Extender System with Power over Ethernet Local Extender Remote Extender...
- Page 2 CE Statement We, Icron, an Analog Devices brand, declare under our sole responsibility that the USB 2.0 RG2304SP, to which this declaration relates, is in conformity with European Standards EN 55032, EN 55035, EN 61000, EN 62368-1 and RoHS Directive 2011/65/EU + 2015/863/EU.
-
Page 3: Table Of Contents
Contents 4 Introduction Product Contents 4 Features 4 5 The Local Extender Unit 7 The Remote Extender Unit 9 Installation Guide Installing the RG2304SP System on a Local Area Network 9 Requirements 9 Preparing Your Network 9 Preparing Your Site 10 Installing the Local Extender Unit 10 Installing the Remote Extender Unit 11 Installing the RG2304SP System as Direct Connect 11... -
Page 4: Introduction
Introduction This guide provides product information for the USB 2.0 RG2304SP, installation instructions, and troubleshooting guidelines. The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements and some understanding of USB devices. NOTE: Notes provide additional useful information. -
Page 5: The Local Extender Unit
The Local Extender Unit The Local Extender unit connects to the computer using a standard USB 2.0 cable. Power for this unit is provided by the host computer. Front Faceplate Back Faceplate Config Mode Link 24V 1A ITEM TYPE DESCRIPTION USB Device Accepts USB device(s) using Type A connectors. - Page 6 The Local Extender Unit Continued ITEM TYPE DESCRIPTION Indicates data transmission is occurring between the Local and Remote Extender Activity LED units. (Amber) LED BLINKS intermittently with or without a USB device connected. LED is OFF when the Local and Remote Extender units are in suspended mode. Used to connect the Local Extender to the host computer.
-
Page 7: The Remote Extender Unit
The Remote Extender Unit The Remote Extender unit provides USB Type A ports for standard USB devices. The Remote Extender unit allows you to connect up to four USB devices directly. Additional devices may be connected by attaching up to four USB hubs to the Remote Extender unit. - Page 8 The Remote Extender Unit Continued ITEM TYPE DESCRIPTION Host LED Indicates that the RG2304SP system is properly enumerated on the host computer. (Green) LED BLINKS when the RG2304SP is in a suspended state. Indicates data transmission is occurring between the Local and Remote Extender Activity LED units.
-
Page 9: Installation Guide
Installation Guide Installing the RG2304SP System on a Local Area Network Requirements To complete the installation, you will also require the following items that are not included with this system: USB compatible computer (host computer) with a USB compliant operating system USB compatible device(s) Two CAT 5e/6/7 patch cables Preconfigured IEEE 802.3at PoE+ capable 1000Mbps Local Area Network*... -
Page 10: Preparing Your Site
CAUTION: Some networks may be configured to block devices with unfamiliar MAC addresses. If this is the case, you will need to provide your network administrator the MAC addresses of the Local and Remote Extender units. These can be found on the label on the bottom of each unit. CAUTION: Some networks may be configured to block devices that consume a consistently high level of bandwidth. -
Page 11: Installing The Remote Extender Unit
Installing the Remote Extender Unit 1. Connect a CAT 5e/6/7 patch cable (not provided) into the IEEE 802.3at PoE+ capable 1000Mbps Local Area Network port near the host computer. 2. Connect the patch cable into the Link port of the Remote Extender unit. 3. -
Page 12: Preparing Your Site
Preparing Your Site Before installing the RG2304SP, you will need to prepare your site: 1. Place the computer where desired and set it up. 2. Ensure to locate the USB device(s) within 100m cable-length of the computer. If not, adjust the location of the devices and/or computer accordingly. -
Page 13: Checking The Installation
Checking the Installation 1. On the Local Extender and Remote Extender units, check that the Power, Activity, Link and Host LEDs are ON. » The power LED will illuminate BLUE if sufficient power is available to the Local and Remote Extender. »... -
Page 14: Pairing The Local Extender And Remote Extender Units
Compatibility The USB 2.0 RG2304SP complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, there is no guarantee that all USB devices or hosts will be compatible with the RG2304SP, as there are a... -
Page 15: Usb Extender Mounting Options
USB Extender Mounting Options The bottom of the RG2304SP enclosures features four convenient pre-drilled holes for optional direct surface mounting and four mounting slots for easy cable-ties. Based on your requirements, choose from three available mounting options: 1. USB Extender Mounting Kit (Purchased separately) Order Part #10-00536 USB Mounting Kit - Black 2. -
Page 16: Option 2: Usb Extender Direct Surface Mounting
Option 2: USB Extender Direct Surface Mounting (Using your own hardware) The bottom of the RG2304SP enclosures features four pre-drilled holes for optional surface mounting. Distance between the enclosure mounting holes: 42.0mm x 87.53mm mounting hole 1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or using a printout of the stencil below. -
Page 17: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problems after following these instructions, please contact Technical Support by visiting icron.com/support to creating an online Support Ticket for further assistance. - Page 18 PROBLEM CAUSE SOLUTION Link LEDs are » There is no connection between the 1. Ensure both the Local and Remote Extender are BLINKING. connected together directly or are connected to active Local and Remote Extender. network switches. » Units may not be paired to each other.
-
Page 19: Specifications
Specifications RANGE Direct Connect Up to 100m (330 ft) over solid core CAT 6a/7 Cable Network Connect Up to 100m (330 ft) between switches over solid core CAT 5e/6/7 USB DEVICE SUPPORT Network and Direct Connect Up to 480Mbps** Traffic Types All USB 2.0 Traffic Types Device Types All USB 2.0 Device Types... -
Page 20: Warranty Information
Warranty Information Limited Hardware Warranty Icron warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship for a period of two years from the date of purchase. Icron’ s hardware warranty extends to Licensee, its customers and end users. -
Page 21: Contacting Technical Support
Remote Extender units. You may use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination as the USB 2.0 RG2304SP requires all four pairs of the cable. RJ45 connectors are sometimes also referred to as 8P8C connectors. Note that any given cable must be terminated using the same T568 scheme on both... - Page 22 RJ45 Pin Positioning Table 1 - T568A Wiring Table 2 - T568B Wiring PAIR WIRE CABLE COLOR PAIR WIRE CABLE COLOR WHITE/GREEN WHITE/ORANGE GREEN ORANGE WHITE/ORANGE WHITE/GREEN BLUE BLUE WHITE/BLUE WHITE/BLUE ORANGE GREEN WHITE/BROWN WHITE/BROWN BROWN BROWN Pair 2 Pair 2 Pair 3 Pair 3 Pair 1...
