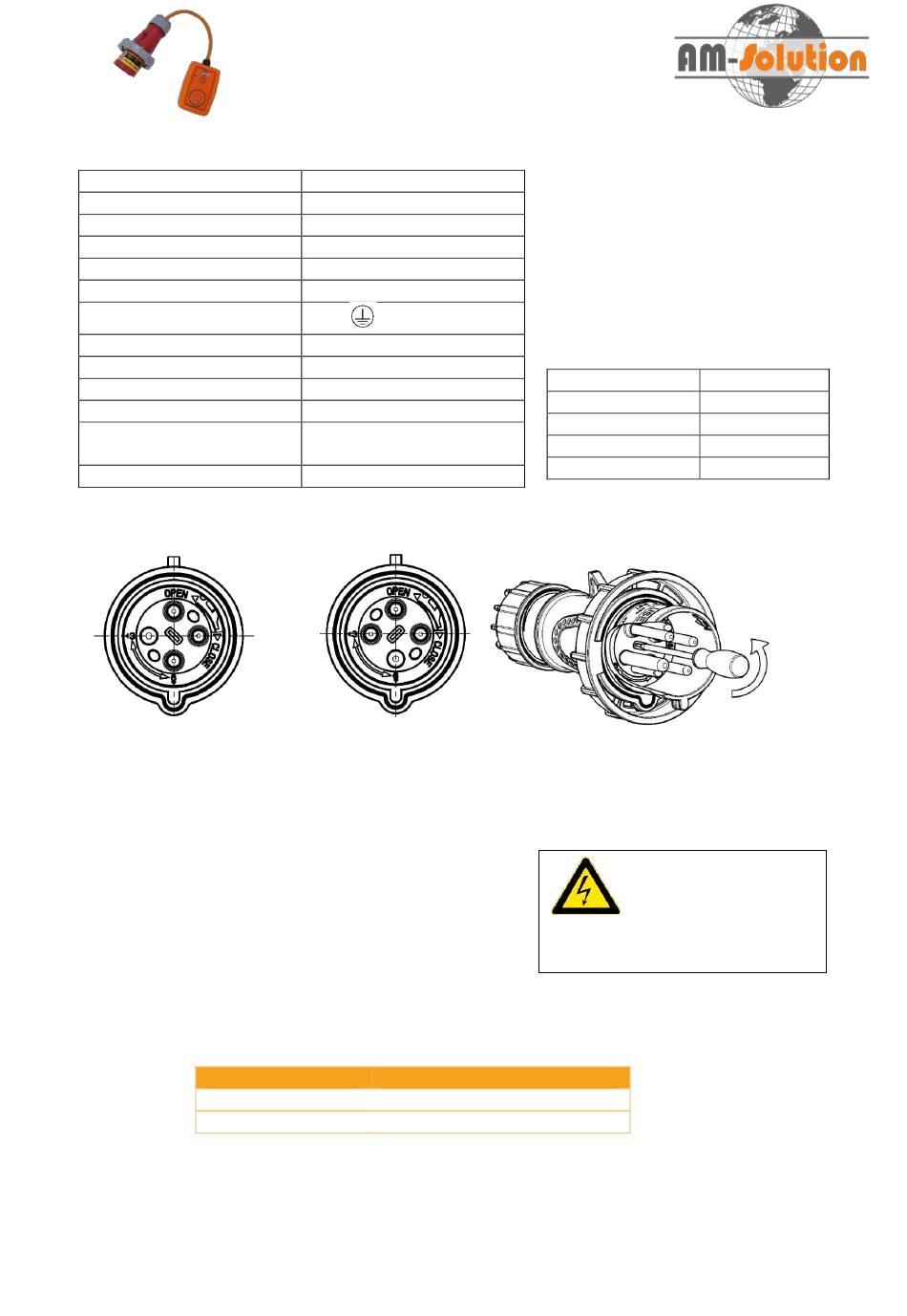

AM-Solution AMS4000-100 Quick Reference Manual

Technical data
Voltage supply
Over-voltage category
Plug
Power input consumption
Dimensions (LxWxH):
Weight:
No. of poles
Earth contact position
Protection degree
Housing material
Contacts
Feature
Approvals
Earth pin in 3H
position
Operating instructions
Operating the socket tester
•
Insert the CEE plug into the wall socket.
•
Press the power button.
•
The device will measure/detect the phases of the
wall socket and show on the LED indicators the state of the phases.
o When all phases are present the device signals the phase order by rotating the LED's
in the direction of the phases.
Phase order
L1/R – L2/S – L3/T
L1/R – L3/T – L2/S
•
The device will switch off automatically when no phases are detected during 1 minute.
Page 1
AMS4000-100
Reefer socket tester
Quick reference guide
AC 440V, 50/60Hz
CAT II
CEE – 32A
< 20mA per phase
135x93x51 mm
435g
3P +
3H/6H
IP65
Flame retardant PA6
Nickel plated brass
Able to switch from 3H to
6H by using a screwdriver
CE/ROSH/REACH
Earth pin in 6H
position
LED pattern
Clockwise
Counter clockwise
CHARGER AND
BATTERY
Type LP-E10
Capacity 2200 mAh
Nominal voltage 7.4V
Charger output 8.4V/500mA
Charger input 5V/1A
Push & Rotate
When the CEE plug is
inserted, high voltages are present
inside the device.
RST Quick reference guide
Version: 16-1-2024
