mAT-S1500
Digital SWR/Wattmeter
Operations Manual
Introduction
The mAT-S1500 is designed as an accurate instrument for monitoring
station performance. It uses two RF specific measurement chips,
which can accurately measure the power and SWR of the RF system,
but cannot display information such as spectrum and impedance.

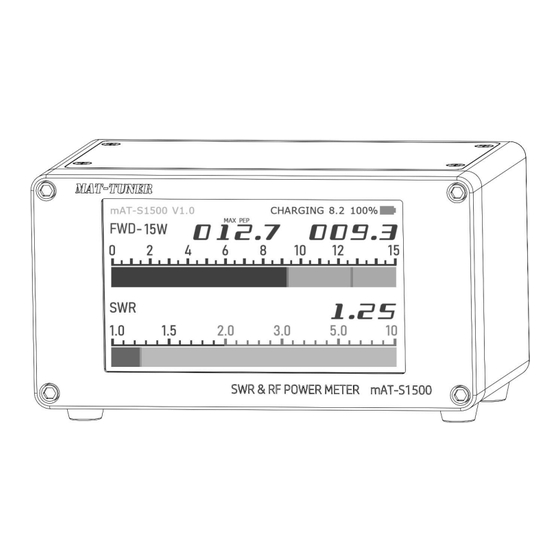

The mAT-S1500 features a 4.3" diagonal TFT color display screen
that displays the current RF power and SWR using bar and digital
displays.
This mAT-S1500 is equipped with two high capacity 18650 lithium
batteries, which can operate without the need for additional power
supply.
By using the TYPE-C charging socket, users can easily use their
phone charger to charge it. The charger is not an accessory to this
1
Advertisement
Summary of Contents for Mat-Tuner mAT-S1500

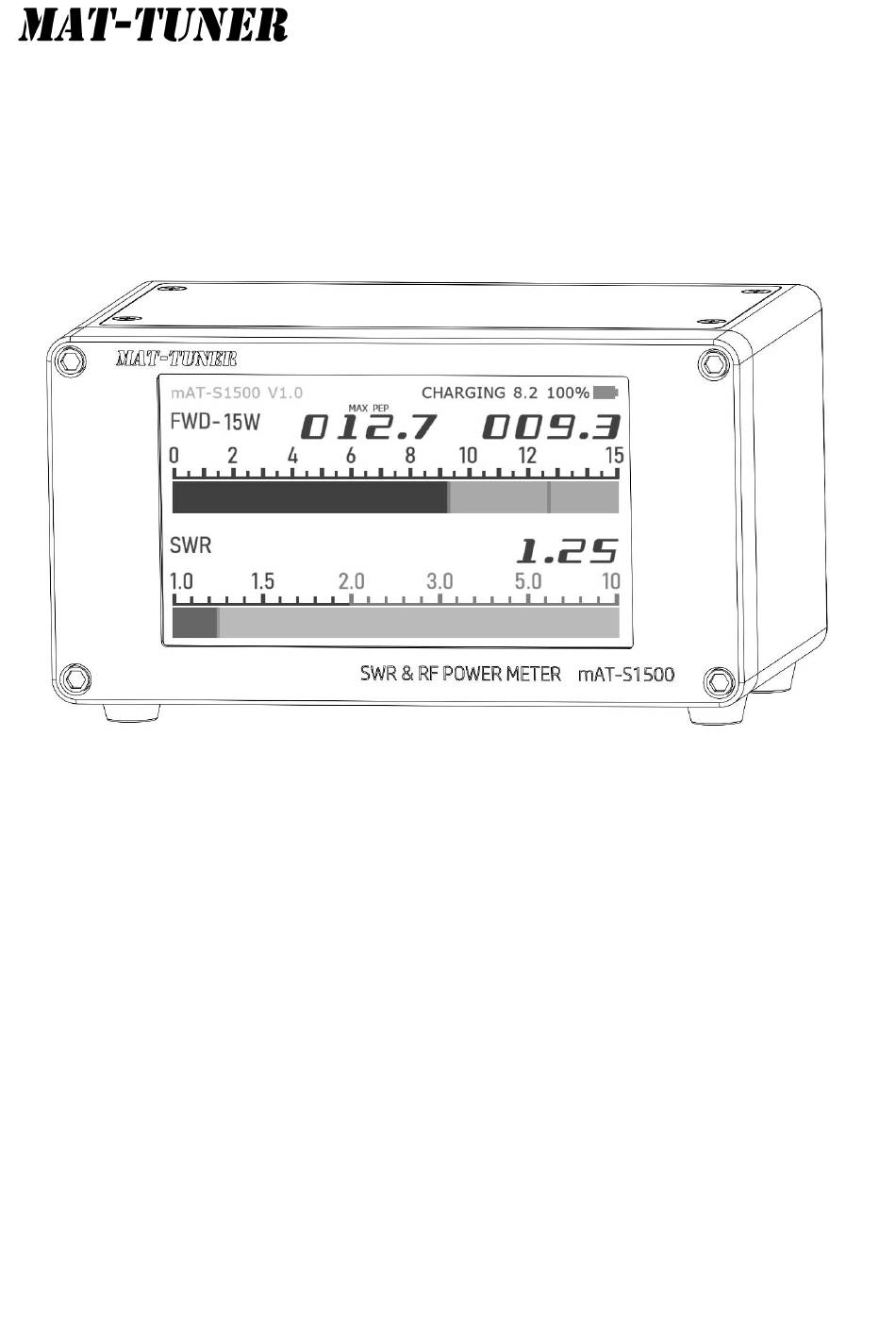

- Page 1 Digital SWR/Wattmeter Operations Manual Introduction The mAT-S1500 is designed as an accurate instrument for monitoring station performance. It uses two RF specific measurement chips, which can accurately measure the power and SWR of the RF system, but cannot display information such as spectrum and impedance.
-
Page 2: Specifications
The mAT-S1500 is an automated instrument that is very easy to use. It only has one power switch and can automatically set the range based on the input RF signal. It can also automatically set the color of the screen background based on the brightness of the ambient light, helping users to better see the display. -
Page 3: Front Panel
After the battery is fully charged, this indicator light goes out. On the left side of this indicator light is an ambient light sensor. The mAT-S1500 will automatically set the color of the screen background based on the light perceived by this sensor, making the display screen easier to read. - Page 4 5 seconds. The mAT-S1500 does not come with a charger. Users can use the TYPE-C charger of most mobile phones to charge it. The charging voltage range is 4.5-5.5V, exceeding the range will damage this meter.
- Page 5 Range: FWD has three ranges, 15W, 150W, and 1500W. When the mAT-S1500 starts, the range is automatically set to 15W and an appropriate range is automatically set based on the input RF signal. The range will only be automatically set from small to large. If the user needs to return to a smaller range, simply turn off the power and restart.
