ESD204 4-Channel Low-Capacitance Surge and ESD Protection Diode
1 Features
IEC 61000-4-2 Level 4 ESD Protection
1
– ±30-kV Contact Discharge
– ±30-kV Air Gap Discharge
IEC 61000-4-4 EFT Protection
– 80 A (5/50 ns)
IEC 61000-4-5 Surge Protection
– 5.5 A (8/20 μs)
– Low Surge Clamping Voltage
8.5 V at 5.5 A I
PP
IO Capacitance:
– 0.55 pF (Typical)
HDMI 2.0 Compliant
DC Breakdown Voltage: 5.5 V (Minimum)
Ultra Low Leakage Current: 10 nA (Maximum)
Supports High Speed Interfaces up to 6 Gbps
Industrial Temperature Range: –40°C to +125°C
Easy Flow-Through Routing Package
2 Applications
End Equipment
– IP Network Camera
– DVR and NVR
– Ethernet Switches and Routers
– Laptops and Desktops
– Set-Top Boxes
– TV and Monitors
– Mobile and Tablets
Interfaces
– HDMI 2.0
– HDMI 1.4
– USB 3.0
– Display Port 1.3
– PCI Express 3.0
– Ethernet 10/100/1000 Mbps
3 Description
The ESD204 is a bidirectional TVS ESD protection
diode array for HDMI and USB surge protection up to
5.5 A (8/20 μs). The ESD204 is rated to dissipate
ESD strikes at the maximum level specified in the
IEC 61000-4-2 international standard (Level 4).
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Order
Product
Technical
Folder
Now
Documents
Support &
Tools &
Community
Software
SLVSEE2A – FEBRUARY 2018 – REVISED APRIL 2018
The low clamping and high differential bandwidth
provided by ESD204 enables the device to cleanly
pass high speed signals while providing robust
protection to downstream devices. This device has a
low capacitance of 0.55-pF per channel making it
suitable for protecting high-speed interfaces up to 6
Gbps such as HDMI 2.0, HDMI 1.4, USB 3.0 and
Ethernet 1G. The low dynamic resistance and low
clamping voltage ensure system level protection
against transient events.
The ESD204 is offered in the industry standard
USON-10 (DQA) package. The package features
flow-through routing and 0.5-mm pin pitch easing
implementation and reducing design time.
Device Information
PART NUMBER
PACKAGE
ESD204
USON (10)
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

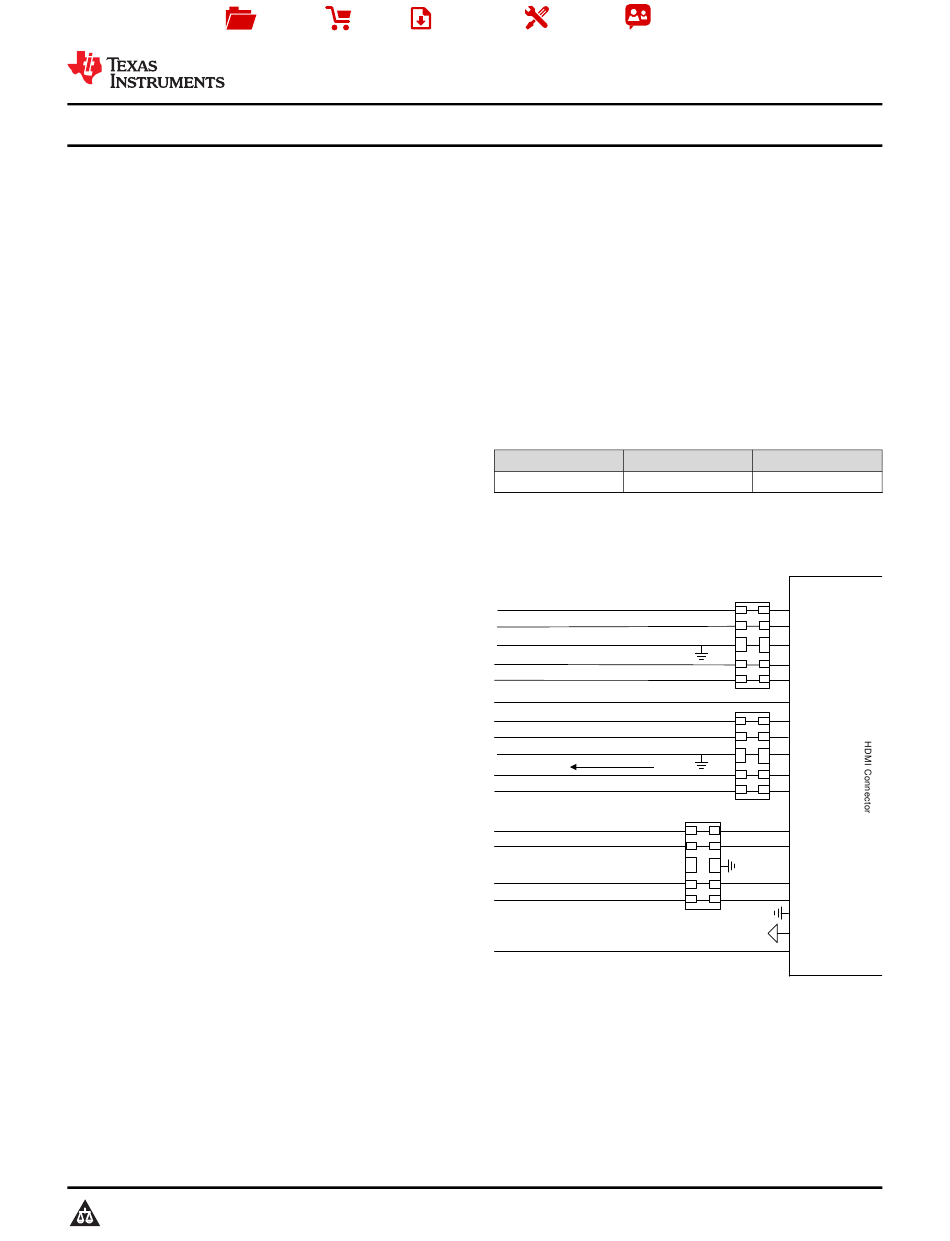

Typical Application Schematic
To System
TPD4E05U06
ESD204
(1)
BODY SIZE (NOM)
2.50 mm × 1.00 mm
TMDS D2+
TMDS D2±
ESD204
TMDS GND
TMDS D1+
TMDS D1±
TMDS D0+
TMDS D0±
ESD204
TMDS GND
TMDS CLK+
TMDS CLK±
CEC
UTILITY
DDC_CLK
DDC_DAT
GND
P 5V0
HOTPLUG
