Summary of Contents for Observator OIC-604

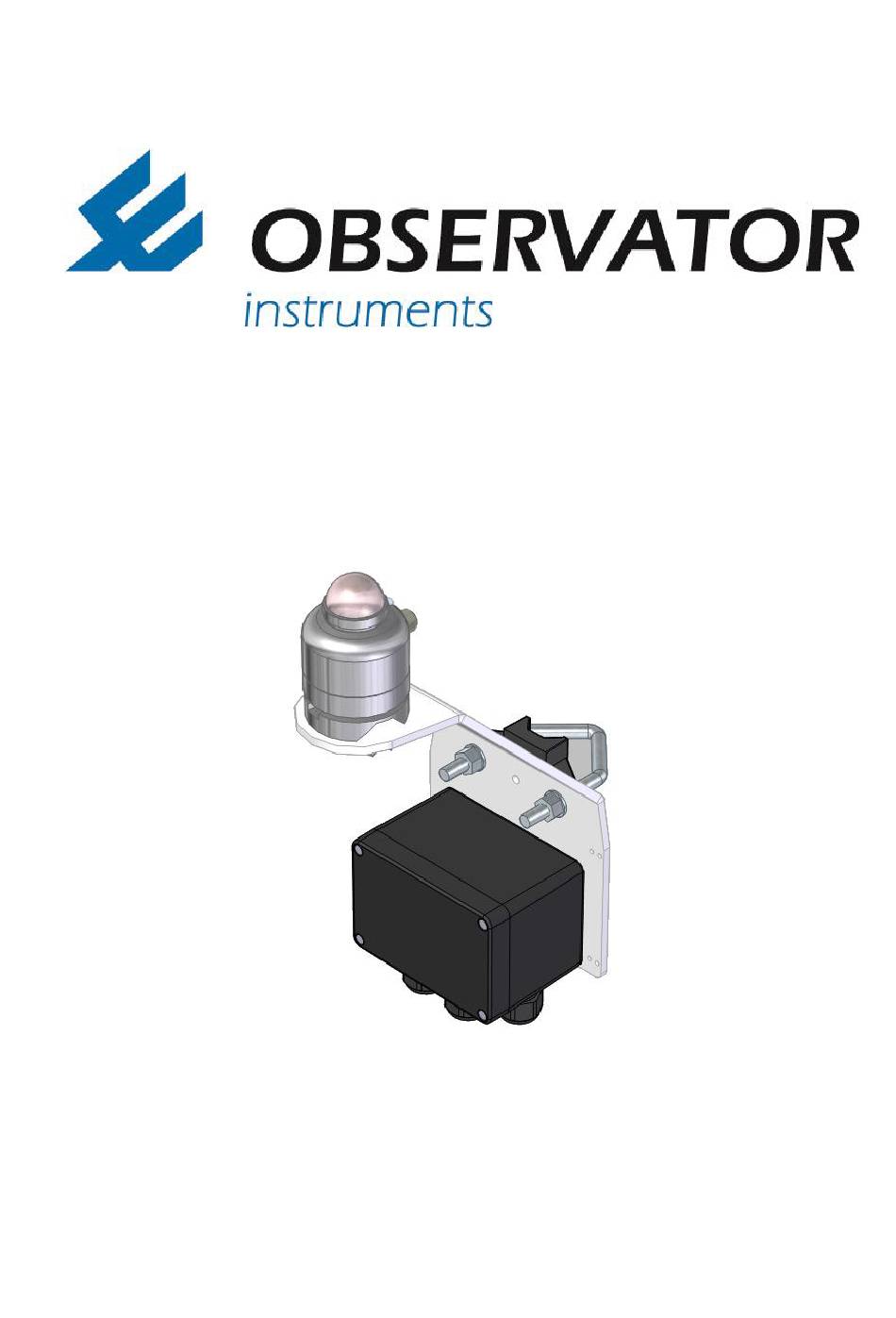

- Page 1 OIC-604 Meteolink Solar Radiation Sensor Manual Version 1.05 – April 2024 Author: Observator Instruments...
- Page 2 (February 2017) Preliminary edition 1.01 (March 2017) First release 1.02 (April 2017) First reviewed release 1.03 (April 2018) Updated model 1.04 (April 2018) Reviewed manual 1.05 (April 2024) Update EU declaration of Conformity OIC-604 Meteolink Solar Radiation Sensor Manual Page 2...
-
Page 3: Table Of Contents
Mechanical installation ........................ 8 Electrical installation ........................9 Commissioning ........................... 9 Basic Node connections ........................11 Sensor connections ..........................12 Device status LED’s ........................... 13 Dimensional drawings ......................... 14 EU declaration of conformity ....................... 15 OIC-604 Meteolink Solar Radiation Sensor Manual Page 3... - Page 4 Page intentionally left blank OIC-604 Meteolink Solar Radiation Sensor Manual Page 4...
-
Page 5: Introduction
Observator OIC-604 Pyranometer is an accurate and reliable instrument for solar radiation measurement including mounting bracket, basic node and inclinometer using the Hukseflux SR05 pyranometer. This manual is intended for the System integrator, Installer and Commissioner of the Observator OIC-604 Pyranometer. -
Page 6: Safety
2 Safety For correct functioning of the Observator OIC-604 it must be installed according installation instructions. We recommend you read the complete manual prior to installation. Any unused gland should be filled with the included plug when not in use. -
Page 7: Description
3.2 Data validation The OIC-604 will send actual Solar Radiation data at 1Hz whenever the sensor is level within 5 degrees. When the sensor tilt exceeds the 5 degrees, the last valid data will be transmitted for a maximum of 1 minute. -
Page 8: Installation
The OIC-604 will also work without the tilt sensor. In that case it will output the Solar Radiation unfiltered and no inclination sentence will be present. NMEA output (OIC-604 output) SR05 (solar Inclination radiation) $WIXDR,G,actual SR value,,SR*hh Sensor not connected / defect... -
Page 9: Electrical Installation
Do not use any force! Connect power (terminal 1&2) and NMEA out including shield (terminal 3,4 & 5) on the OIC-604 side (see connector and terminal layout in chapter 5). Connect the power and receiving NMEA side, do not connect shield on this side! Tighten the gland and check all unused glands are plugged. - Page 10 OIC-604 Meteolink Solar Radiation Sensor Manual Page 10...
-
Page 11: Basic Node Connections
10 SUPPLY 11 NMEA1_IN_A 26 GND (Sensor) 12 NMEA1_IN_B 27 SUPPLY 28 0-24mA_IN_1 13 GND (Supply) 14 SUPPLY 29 GND (Sensor) 15 NMEA2_IN_A 30 CMOS_SUPPLY (3.3V) 16 NMEA2_IN_B 31 CMOS_TX 32 CMOS_RX OIC-604 Meteolink Solar Radiation Sensor Manual Page 11... -
Page 12: Sensor Connections
6 Sensor connections OIC-604 Meteolink Solar Radiation Sensor Manual Page 12... -
Page 13: Device Status Led's
If you experience difficulties connecting with the device; Check if the LED’s are blinking, Check the wiring of the Tx/Rx or A/B wires; Check the data settings of your COM port. OIC-604 Meteolink Solar Radiation Sensor Manual Page 13... -
Page 14: Dimensional Drawings
7 Dimensional drawings OIC-604 Meteolink Solar Radiation Sensor Manual Page 14... -
Page 15: Eu Declaration Of Conformity
8 EU declaration of conformity OIC-604 Meteolink Solar Radiation Sensor Manual Page 15...
