Emos GoSmart P5630S Manual

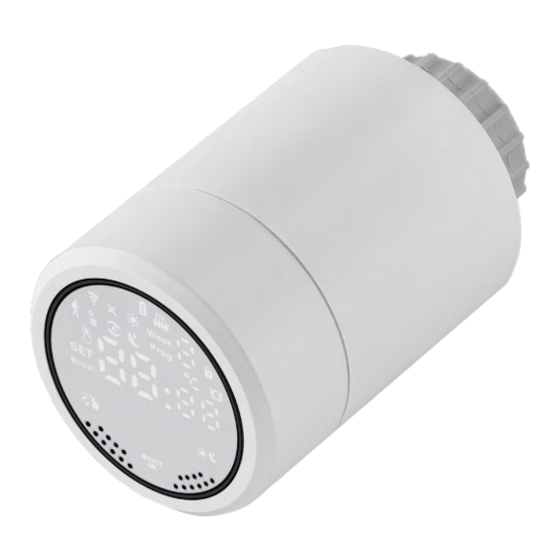

Thermostatic radiator valve
Hide thumbs Also See for GoSmart P5630S:

Advertisement

Quick Links

Download this manual
P5630S
GB | Thermostatic Radiator Valve
Contents
Specifications ....................................................................................................................2
Installation .........................................................................................................................3
Description of the Screen of the Thermostatic Head ........................................................5
Basic Settings ....................................................................................................................6
Upkeep and Maintenance ................................................................................................14
GB | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GoSmart P5630S and is the answer not in the manual?

Questions and answers

Related Manuals for Emos GoSmart P5630S

Summary of Contents for Emos GoSmart P5630S

  • Page 1: Table Of Contents

    P5630S GB | Thermostatic Radiator Valve Contents Specifications ........................2 Installation .........................3 Description of the Screen of the Thermostatic Head ............5 Basic Settings ........................6 Upkeep and Maintenance ....................14 GB | 1...

  • Page 2: Specifications

    Specifications 55 mm 94 mm Temperature control range: 5 °C – 35 °C, 0.5 °C resolution Range of displayed temperature: 1 °C – 70 °C, 0.5 °C resolution Power supply: 2× 1.5 V AA Maximum current draw: 90 mA Maximum valve lift: 4.5 mm Mounting dimensions of the head: M30 ×...

  • Page 3: Installation

    Installation 1. The head is designed for all types of commonly available radiator valves without the need to interrupt heat circulation. If the thermostatic head is not compatible, proceed in accordance with information provided in the Compatibility section. 2. Place batteries into the head before installing. Remove the old thermostatic head by loosening the nut on the radiator head.
  • Page 4 Inserting/Changing the Batteries 1. Grab a hold of the square section of the head located below the thread. Turn the square section clockwise. You should hear the head‘s lock release after turning. 2. Slide the inner core of the head from the housing. 3.

  • Page 5: Description Of The Screen Of The Thermostatic Head

    Description of the Screen of the Thermostatic Head 1 – Low battery indicator . Starts flashing once the batteries are nearly depleted. 2 – Indication of connection status to Zigbee gateway Indicator on – not connected. Indicator off – connected. 3 –...

  • Page 6: Basic Settings

    1. Mount the thermostatic head onto the radiator and insert the batteries. 2. Install the EMOS GoSmart app from Google Play/App Store onto your phone. 3. Connect the thermostatic head to your Zigbee gateway which is connected to the EMOS GoSmart app in line with the following instructions.
  • Page 7 • allows setting up to 6 time periods for both types of days The time periods are set on the „Weekly Programme Settings“ screen in EMOS GoSmart. For each time pe- riod, set the temperature that the thermostatic head should set from the time you specify in the time period settings.
  • Page 8 • You can activate/deactivate the child lock in the settings of the EMOS GoSmart app. • If the lock is active, the screen of the thermostatic head or the main page of the head in the EMOS GoS- mart app will show a lock icon.
  • Page 9 Controlling the Valve • Can only be adjusted on the screen of the thermostatic head itself. • These controls enable you to set how the valve of the thermostatic head is to be controlled. • Value = 0: control in accordance with the modes you have set; value = 1 automatic control based on current temperature.
  • Page 10 3. Setting Holiday Mode a. To set up Holiday Mode, hold the button for 5 seconds. This opens the thermostatic head‘s settings. b. Select the Holiday Mode settings option by repeatedly pressing the button. Holiday Mode settings are selected when the icon starts flashing.
  • Page 11 8. Automatic Screen Lock Function a. To set the Auto Lock function, hold the button for 5 seconds. This opens the thermostatic head‘s settings. b. To select the Auto Lock function, repeatedly press the button. The Auto Lock function is selected when the icon starts flashing.
  • Page 12 11. Setting the Interval Length of the Boost Function a. To set the interval length of the Boost function, hold the button for 5 seconds. This opens the thermostatic head‘s settings. b. To select the Boost function settings, repeatedly press the button.
  • Page 13 14. Reset the Thermostatic Head a. To Reset the Thermostatic Head, hold the button for 5 seconds. This opens the thermostatic head‘s settings. b. To select the Reset the Thermostatic Head settings option, repeatedly press the button. The Reset the Thermostatic Head option is selected when the icon starts flashing.

  • Page 14: Upkeep And Maintenance

    Hereby, EMOS spol. s r. o. declares that the radio equipment type P5630S is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.emos.eu/download.
