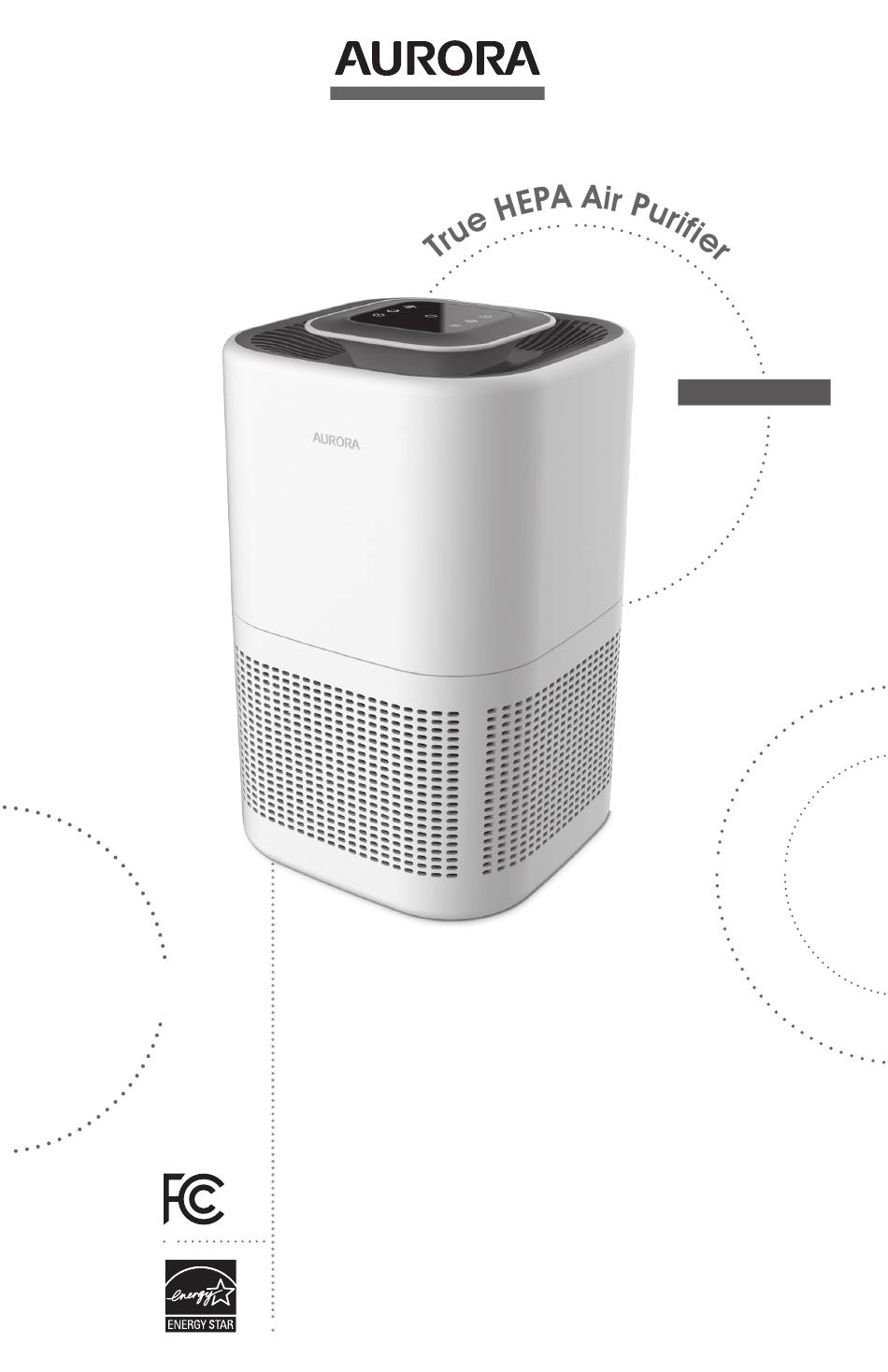

Model No.
AR100W
1-800-327-8508
USA Only
1-310-793-5650
International
Email: info@auroracorp.com
For more information, please visit us at:
www.auroracorp.com
To buy Aurora products, please visit us at:
www. AuroraDirectStore.com
Please read these operating instructions before using the unit and
keep for future reference.
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Aurora AR100W
- Page 1 AR100W 1-800-327-8508 USA Only 1-310-793-5650 International Email: info@auroracorp.com For more information, please visit us at: www.auroracorp.com To buy Aurora products, please visit us at: www. AuroraDirectStore.com Please read these operating instructions before using the unit and keep for future reference.
- Page 3 • Aurora Air Purifier • HEPA Carbon Filter (Inside the air purifier compartment) • Power Adapter (Inside the filter package) • Quick Start Guide • User Manual Air Purifier Operating Instructions • Warning • Installation • Operation • Care & Maintenance • Troubleshooting • Service Center • Limited Warranty...
- Page 4 WARNING : SAFETY INSTRUCTIONS, READ BEFORE USING! • This product is for indoor and household use only, not for commercial use. • This product is not intended for use by children. • Remove the plastic bag from the filter before use. Operating the air purifier without first removing the plastic bag from the filter may overheating the machine and cause a fire hazard. • A socket-outlet should be near the equipment and be easily accessible. • Never place the air purifier near water or any heat source. • Do not use the air purifier if the power cord is damaged in any way. • Do not attempt to service this product yourself as doing so may expose you to electricity and will void the manufacturer's warranty. • Always turn the air purifier off and unplug the power cord from the AC outlet when not in use, before cleaning, moving, or changing the filter. • RISK OF FIRE. Do not clean the unit with benzene, paint thinner, detergent, aerosol (spray) products, or any flammable petroleum-based cleaner. • Unit will not remove carbon monoxide emitted from heating appliances or other sources. • Keep away from products that generate oily residue, e.g., deep fryers. • Keep at least 5 ft/ 1.5m away from where oxygen is being administered. • Do not operate the unit when using indoor smoke-generating insecticides or spray insecticides on the unit. • Do not use the unit where it is humid or where the unit may get wet, e.g., bathroom. • Do not insert fingers or foreign objects into the air intake or outlet. • Do not use the unit near flammable gases. • Do not use near cigarettes, incense, or other spark-creating items. • Do not block the intake or outlet vents. • Do not use near hot objects, e.g., stove. • Do not use where the unit may come into contact with steam. • Do not operate without a filter. • Do not wash and reuse the True HEPA Filter. • Do not run the power cord under carpets or cover it with throw rugs. • WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. • WARNING: To reduce the risk of fire, electric shock, or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g., parts made at home using a 3D printer).
-
Page 5: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference in commercial and residential installa- tions. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow- ing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. ISED Compliance Statement This device contains license-exempt transmitter(s)/receiver(s) that comply with Innova- tion, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ENGLISH... -
Page 6: Product Specifications
PRODUCT SPECIFICATIONS: Model AR100W Input Voltage AC 100-240V 50/60Hz Output Voltage DC 24V Rated Power Smoke: 112 CFM CADR Dust: 129 CFM (Cleaning Air Delivery Rate) Pollen: 142 CFM Effective Range 220 ft² / 20.4 m² Noise level 24~50dB Standby Power <0.8W 9.6 L x 9.6 W x 15.4 H inches Dimensions 24.4 x 24.4 x 39 cm Net Weight 6.8 lb / 3.1 kg True HEPA Filter Replacement: AR10F For replacement filters please visit: www.auroradirectstore.com This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air... - Page 7 Aurora True HEPA Filter Features Three-Stage Purification System: • Stage 1: Pre-filter captures large particles such as dust, hair, lint, pet fur, and fibers. • Stage 2: H13 True HEPA Filter captures 99.97% of airborne particles as small as 0.3 microns. Filter allergens such as pollen, mites, pet dander, and small particles such as dust par- ticles, mold spores, and parts of smoke. • Stage 3: Activated Carbon Filter absorbs the cooking smell, smoke, odors, fumes, and filter compounds such as ammonia, formaldehyde, hydrogen sulfide, benzene, and a wide range of volatile organic compounds (VOCs). 1. Pre-filter 2. H13 True HEPA Filter 3. Activated Carbon Filter ENGLISH...
-
Page 8: Installation
INSTALLATION 1. Flip the air purifier upside down. Turn the bottom cover counterclockwise to open and remove the carbon filter from the purifier. (FIGURE 1~2) 2. Remove the power adaptor from the package and remove the plastic bag from the filter. (FIGURE 3) * 3. Place the filter back into the purifier and close the bottom cover. (FIGURE 4~5) 4. Connect the power adapter to the air purifier’s power port and plug in the power cord to any standard 120-volt AC wall outlet. (FIGURE 6) ** Caution: * Remove the plastic bag from the filter before use. Operating the air purifier without first removing the plastic bag from the filter may overheat the machine and cause a fire hazard. ** A socket outlet should be near the equipment and be easily accessible. Note: To maintain the best performance of your air purifier only use official Aurora filters. Figure 1 Figure 3 Figure 5 Power adapter Remove plastic Filter Figure 2 Figure 4 Figure 6 Handle Open power port cover Facing up Plug in power cord... -
Page 9: Operation
OPERATION 1. Control Panel 2. Air outlet 3. Housing 4. Power Port 5. Air Inlet 6. True HEPA Filter 7. Bottom Cover 8. Power Adapter Control Panel Power On/Off button: Tap the fan icon to turn on/off all features of the air purifier. Fan Speed Adjustment Button: Tap the fan icon to manually select fan speed. Fan Speed Indicator: Display current fan speed setting (Low), (Medium), (High) CONTINUED NEXT PAGE ENGLISH... -
Page 10: Care And Maintenance
• Do not wash and reuse the filter. Filter Replacement: Only use the Aurora Brand Ture HEPA replacement filters. The Filter Change Indicator will light up as a reminder to check or change the fil- ter. The replacement period may vary depending on the hours of use and air quality. - Page 11 CARE AND MAINTENANCE remove the old carbon filter from the purifier. (FIGURE 2) 3. Remove the plastic bag from the new filter. (FIGURE 3) 4. Place the new filter into the purifier and close the bottom cover. (FIGURE 4) 5. Re-connect the power adapter to the air purifier’s power port plug the power cord into any standard 120-volt AC wall outlet and turn on the unit. Tap the Filter Change Indicator and hold for 3 seconds to reset the status after the filter is replaced. (FIGURE 5) Caution: • Remove the plastic bag from the filter before use. Operating the air purifier without first removing the plastic bag from the filter may overheat the machine and cause a fire hazard. • Do not add essential oils to the air purifier or filter. The filter will be damaged by the oils. • Do not use oil diffusers near the air purifier. Figure 1 Figure 3 Figure 5 Remove plastic Filter Figure 2 Figure 4 Handle Facing up ENGLISH...
-
Page 12: Troubleshooting
TROUBLESHOOTING If there is a problem with your air purifier, check below for the symptoms and steps to re- solve. If you continue to have problems, contact customer support at our Service Center 1-800-327-8508. DO NOT ATTEMPT TO REPAIR OR MODIFY THE AIR PURIFIER. This will com- pletely void the product warranty. POSSIBILE SOLUTION PROBLEM 1) Make sure power cord is plugged into a functioning 120V No power to the air purifier. standard household power outlet. Or, try using a different The air purifier does not work working outlet. at all. 2) Check if the Power On icon is lit. 1) Ensure that nothing is blocking the air vents, including intake and exhaust. 2) Tap the fan icon to increase fan speed. Air purifier isn't producing enough airflow. 3) Make sure the plastic bag is removed from the filter. 4) Inspect the air purifier for dust and other particles. Replace the filter as needed. 1) Replace the filter as needed. 2) Inspect the air purifier for dust and other particles. 3) Make sure not to operate the unit when using indoor Air purifier seems to produce smoke-generating insecticides or spray insecticides on the... -
Page 13: Service Center
Should there be a defect or malfunction of this product, Aurora will repair or replace the product free of charge. Customer is responsible for all shipping charges to return the defective product to Aurora. A copy of the proof of purchase showing original purchase date is required. - Page 14 1-800-327-8508 USA Only • 1-310-793-5650 International • Email: info@auroracorp.com • For more information, please visit us at: www.auroracorp.com Meets California ozone emissions limit: CARB certified © 2023 Aurora Corp. of America 3500 Challenger Street, Torrance, CA 90503 USA 082523...
