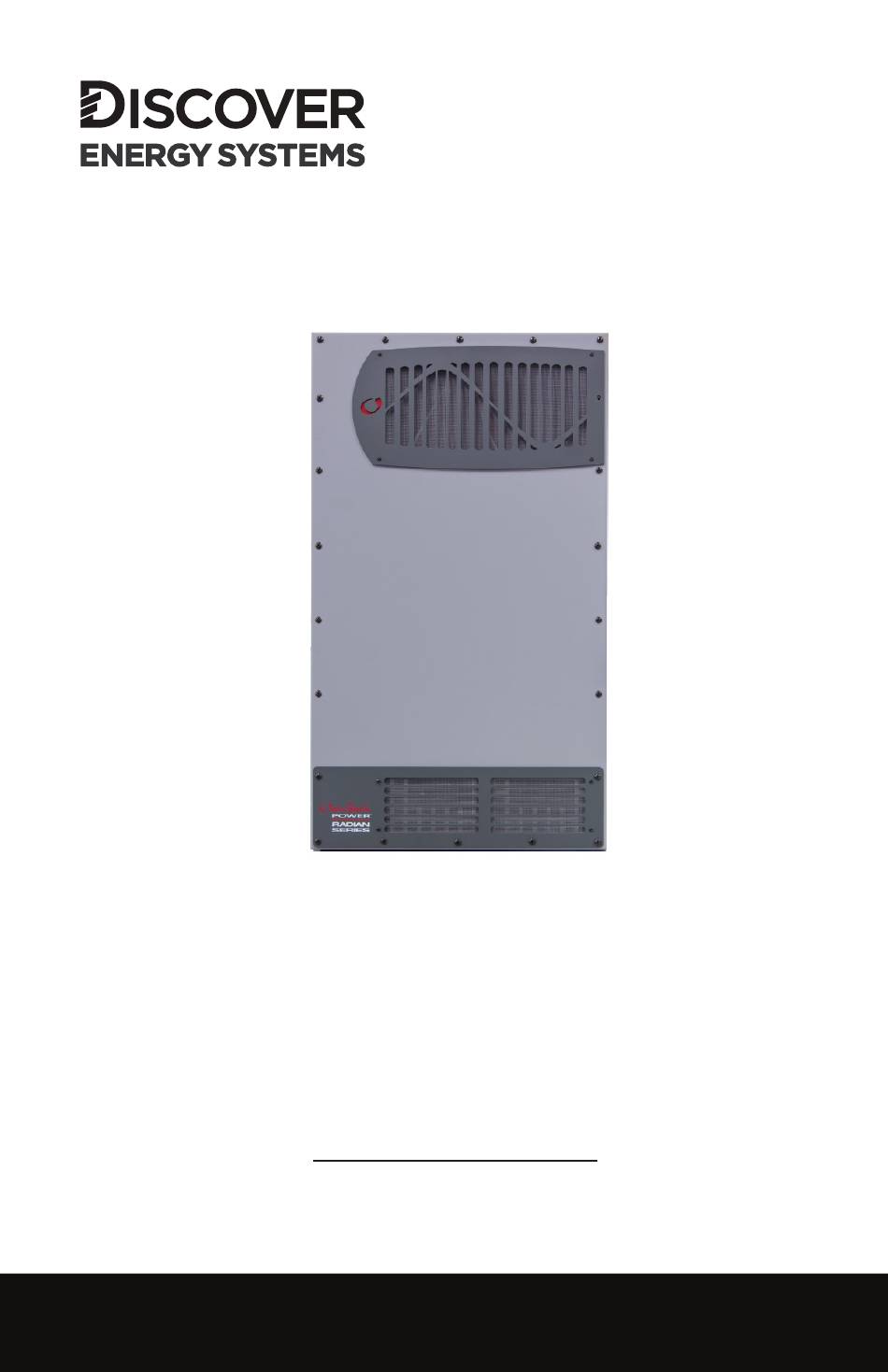

OUTBACK POWER
OPEN LOOP CONFIGURATION
WITH DISCOVER LITHIUM BATTERIES
READ AND SAVE THESE INSTRUCTIONS
885-0011 REV D
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS8048A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DISCOVER GS8048A

Summary of Contents for DISCOVER GS8048A

  • Page 1 OUTBACK POWER OPEN LOOP CONFIGURATION WITH DISCOVER LITHIUM BATTERIES READ AND SAVE THESE INSTRUCTIONS 885-0011 REV D...

  • Page 2: Table Of Contents

    INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1 .

  • Page 3: Introduction

    INTRODUCTION This document describes how to set up OutBack Power inverter-chargers to create an open-loop charge configuration with AES LiFePO batteries or AES RACKMOUNT battery modules. 1 . AUDIENCE, WARNINGS, MESSAGES, GENERAL SAFETY, PERSONAL PROTECTIVE EQUIPMENT 1 .1 Audience Configuration, installations, service, and operating tasks should only be performed by qualified personnel in consultation with local authorities having jurisdiction and authorized dealers.

  • Page 4: General Warnings

    1 .3 General Warnings WARNING ELECTRIC SHOCK AND FIRE HAZARD • This equipment must only be installed as specified. • Do not disassemble or modify the battery. • If the battery case has been damaged, do not touch exposed contents. •...

  • Page 5: Personal Protective Equipment

    • Do not wear rings, watches, bracelets, or necklaces. 2 . DOCUMENTATION This Application Note provides information about the integration of Discover Lithium Batteries with OutBack Power inverter-chargers in an open-loop configuration. Before installation and configuration, consult the relevant product documentation, including Manuals, Application Notes, Installation and Configuration Guides.

  • Page 6: Overview

    3 .1 System Overview The key steps required to install and configure the Discover Lithium batteries and power conversion equipment are as follows: • Review and confirm equipment compatibility and correct sizing.

  • Page 7: Minimum Battery System Capacity

    Discover LiFePO4 42-48-6650 Installation and Operation Manual (805-0065 Rev A). Discover AES RACKMOUNT 48-48-5120/48-48-5120-H Battery, Peak Power: 218 A RMS (3 seconds), 95 A DC Continuous Charge/Discharge (1 hour), as published in Discover AES RACKMOUNT Installation and Operation...

  • Page 8: Configuration

    4 . CONFIGURATION CAUTION ELECTRIC SHOCK HAZARD • Do not use the OutBack Remote Temperature Sensor (RTS) with Discover Lithium batteries. • Instead of the Remote Temperature Sensor, the BMS on the Discover Lithium battery provides the voltage, temperature, and other readings through the LYNK II communication gateway.

  • Page 9: Outback Radian Inverter Settings

    4 .3 OutBack Radian Inverter Settings Inverter Settings MATE3 AES LiFePO Menu 42-48-6650 RACKMOUNT 48-48-5120 / 48-48-5120-H Absorb Voltage 55.2 V Absorb Time 0.5 to 3.0 hours Float Voltage 55.2 V Float Time Disable, Time = 0 Re-Float Voltage Disabled (50V used as default value) Re-Bulk Voltage 55.2 V AC Input Mode...

  • Page 10: Flexnet Battery Monitor Settings

    To prioritize charging from the charge controller, set the Charge Controller Absorb and Float voltages at 0.2 Vdc (24 V Nominal Systems) and 0.4 Vdc (48 V Nominal Systems) higher than the inverter settings. Under lightly loaded conditions, power charging devices may not regulate their voltage well and may cause voltage fluctuations that rise above the battery operating limits.

  • Page 11: Optimizing Lbco Function With Mate3 Controller

    Terminals 1 and 2 Figure 2. FN-DC with cover removed 7 . Energize the system. 8. Use the DMM to measure the battery voltage at terminals 1 and 2 on FN-DC inputs. 9. Read the battery voltage from the MATE3 battery screen (visible by pressing the BATTERY soft key).

  • Page 12: Settings For Mate3 And Mate3S Soc Warnings

    AES LiFePO 42-48-6650 RACKMOUNT FLEXnet Settings (B) MATE3 Menu 48-48-5120 / 48-48-5120-H Relay Mode - Invert Logic Relay Set Points - Voltage High = 53.0 V Low = 49.6 V Relay Set Points - SOC High = 0% Low = 0% Relay Set Points - Delay High = 1 Low = 0...

  • Page 13: Appendix

    APPENDIX A1 . LYNK II: Overview Although mainly used in closed-loop systems, the LYNK II has other features that may be of use in an open-loop charging system. • LED on the LYNK II visually displays the battery SOC in 20% increments. Figure 5.

  • Page 14: A2. Installing And Connecting Lynk Ii To Batteries

    • LYNK II requires power. There are three possible sources: a 13-90 VDC power supply, AEbus Port or LYNK Port-enabled Discover Lithium battery, or a USB device. • Discover Lithium batteries must be set to ON to supply power and communicate data with LYNK II. LYNK II and AES LiFePO...
  • Page 15 Figure 8. AES LiFePO Battery NOTE AES LiFePO4 48 V batteries sold before Jan 1, 2020, will not supply power to LYNK II using the network cable connection. An external 13-90 VDC power source connected to the Phoenix 12-pin connector on LYNK II is REQUIRED for the AES LiFePO4 batteries listed below.
  • Page 16 NOTE Figure 9 is illustrated with the optional Battery Module Combiner (BMC) connected to the battery network. Connecting the BMC enables use of its remote power off feature— turn all the batteries on or off with a single touch of the power button on the BMC.
