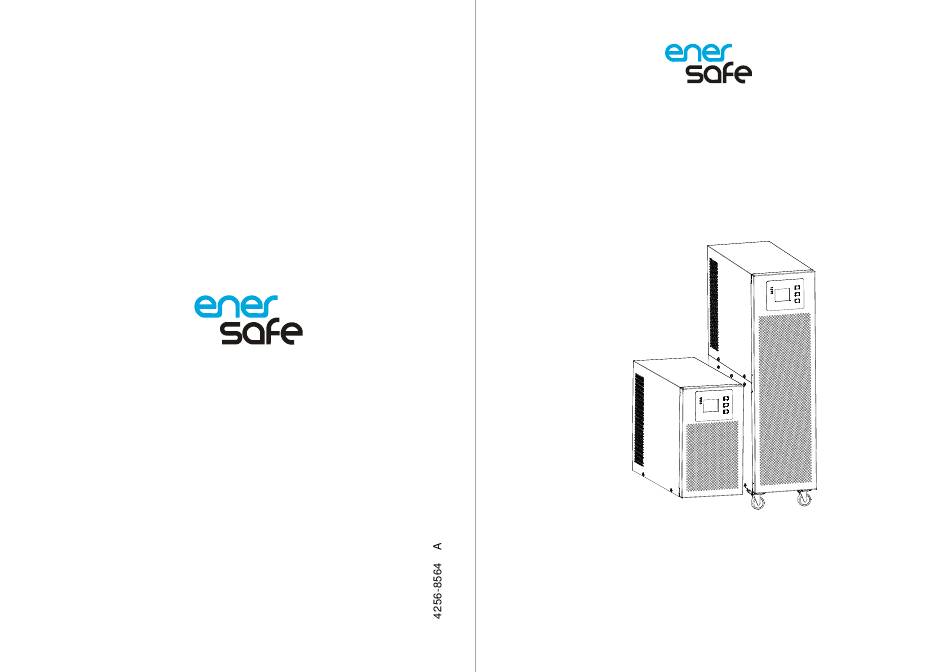

Uninterruptible Power Systems
6/10kVA
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESOL RTH-1KVA and is the answer not in the manual?

Questions and answers

Related Manuals for Enersafe ESOL RTH-1KVA

Summary of Contents for Enersafe ESOL RTH-1KVA

  • Page 1 Uninterruptible Power Systems 6/10kVA Operation Manual...
  • Page 2 Preface Publish statement Thank you for purchasing this series UPS. This series UPS is an intelligent, Single phase in Single phase out, high frequency online UPS designed by our R&D team who is with years of designing experiences on UPS. With excellent electrical performance, perfect intelligent monitoring and network functions, smart appearance, complying with EMC and safety standards, The UPS meets the world’s advanced level.

  • Page 3: Table Of Contents

    Contents Safety ............1 Symbol Description ..........2 2. Product Introduction ..........4 The appearance of the product ........4 Product Category ..........8 3. Installation ............9 Unpacking and inspection ........9 Installation note ..........9 UPS input and output connection ....... 10 Connection of the UPS communication cables ....

  • Page 4: Safety

    1. Safety This chapter mainly introduces the safety signs and security considerations of 6K/10K series high frequency online ups. Before any operation of equipment, you should read the content of this chapter carefully. Safety There exists dangerous voltage and high temperature inside the UPS. During the installation, operation and maintenance, please abide the local safety instructions and relative laws, otherwise it will result in personnel injury or equipment damage.

  • Page 5: Symbol Description

    Symbol Description The safety symbols cited in this manual are shown in table 1-1, which are used to inform readers of safety issues that should be obeyed when installation, operation and maintenance. Fig.1-1 Symbol meanings Safety Symbol Indication Attention Static discharge sensitive Electric shock There are three levers of safety grade: Dangerous, Warning and Attention.
  • Page 6 Description of Commonly Used Symbols Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning:...

  • Page 7: Product Introduction

    2. Product Introduction The appearance of the product 2.1.1 6K/10K-H Fig.1 6/10kVA(H) Front Panel view Fig.2 6/10kVA(H) Rear Panel view (without Maintenance) 1) USB 2) EPO 3) Parallel port 1 4) Parallel port 2 5) Intelligent slot 6) RS232 7) Input switch 8) Terminals (covered)
  • Page 8 Fig.3 6/10kVA(H) Rear Panel view(with Maintenance) 1) USB 2) EPO 3) Parallel port 1 4) Parallel port 2 5) Intelligent slot 6) RS232 7) Input switch 8) Terminals (covered) 9) output switch 10) Maintenance bypass switch (covered)
  • Page 9 2.1.2 6K/10K-S Fig.4 6/10kVA(S)Front Panel view Fig.5 6/10kVA(S)Rear Panel view(without Maintenance) 1) USB 2) EPO 3) Parallel port 1 4) Parallel port 2 5) Intelligent slot 6) RS232 7) Input switch 8) Terminals (covered)
  • Page 10 Fig.6 6/10kVA(S)Rear Panel view (with Maintenance) 1) USB 2) EPO 3) Parallel port 1 4) Parallel port 2 5) Intelligent slot 6) RS232 7) Input switch 8) Terminals (covered) 9) Output switch 10) Maintenance bypass switch (covered)

  • Page 11: Product Category

    2.2 The principle of the product Fig. 2-1 UPS Principle Diagram 1. Input filter: Complete filtering the input AC utility power to provide the clean power for UPS. 2. AC/DC converter: Convert the filtered AC mains to DC and boost the DC for DC/AC inverter.

  • Page 12: Installation

    3. Installation Unpacking and inspection 1. Unpacking the UPS and check that whether it’s damaged during the transportation. If damaged or some parts missing, don’t start the machine and inform the carrier and franchiser. 2. Check the annex (please consult Appendix Table 2). 3.

  • Page 13: Ups Input And Output Connection

    Fig.3-1 Correct power configuration INPUT L OUTPUT L LOAD INPUT N OUTPUT N Fig.3-2 Wrong power configuration UPS input and output connection Minimum 10AWG copper wires are required for the 6KVA, and 8AWG for 10KVA,including input/output cables, battery cables. 1) Switch off all breakers before connecting cables 2) Remove the cover of the terminals, see Fig 2-3,following it to connect the cables...

  • Page 14: Connection Of The Ups Communication Cables

    Fig.3-3 I/O terminals connection CAUTION! Terminators are required so as to ensure the connections are firm. Don’t reverse the input L and N. Don’t connect the UPS input to a wall outlet or the outlet will get burnt. 3) Connect the UPS output L, N, GND to L, N, GND of load via a PDU.
  • Page 15 Connect all the outputs of the parallel UPS to one patch board before connect to the loads. See the picture as follows. Start one UPS in turn and set parameters through LCD: working mode: parallel mode; parallel ID: setting ID in sequence;...

  • Page 16: External Battery Connection (For Extend Model Only)

    External battery connection (for extend model only) Make sure battery quantity complies with the specs （16/18/20 pieces of 12V battery in parallel）. Measure the voltage of battery bank after finishing connection and the battery voltage should be around 192/216/240Vdc. NOTICE: 1.
  • Page 17 Warning: ★ Before installing battery, make sure that the UPS and breaker are all turned off. Remove all your metallic adornment such as finger ring, watch, and so on before connecting battery. ★ No anti-connection or short circuit between the battery anode and cathode forever.

  • Page 18: Panel Display, Operation And Running

    4. Panel display, operation and running The operation is simple, operators only need to read the manual and follow the operation instructions listed in this manual, no need any special training. Start up and turn off UPS 4.1.1 Start up operation 1、Turn on the UPS in Line mode Once AC Power Cord is plugged in, the UPS will start automatically and the LCD display of the UPS will be lit on.

  • Page 19: Faceplate Display

    Remarks: When the UPS is turned off from the inverter mode, it will discharge DC Bus to 80V, then shut down completely; therefore, sometimes, it takes more several seconds to complete. Faceplate display 4.2.1 Faceplate display illumination Fig.4-1 Overview of the operating panel of the UPS (1) ALARM LED (2) BYPASS LED (3) BATTERY LED...
  • Page 20 4.2.2 LCD display CAUTION! The display provides more functions than those described in this manual. Main Display Data Display Data-Input Display Data-Output Display...
  • Page 21 Data-Battery Display Data-Load Display Info Power 10.0kVA Type LCD Ver. V001B006D000 V001B004D001 DSP Ver. Data-Inside Display Info Display Setting-User Display Record Display...

  • Page 22: Display Messages/ Records

    Record- Event Display Record- Fault Display Display Messages/ Records This section lists the event and alarm messages that the UPS might display. The messages are listed in alphabetical order. This section is listed with each alarm message to help you troubleshoot problems . 4.3.1 Operational Status and Mode(s) Note：“X”...

  • Page 23: Alarm Information

    4.3.2 Alarm Information Item UPS Alarm Warning Buzz Rectifier Fault Beep continuously Fault LED lit Inverter fault(Including Inverter bridge is Beep continuously Fault LED lit shorted) Inverter Thyristor short Beep continuously Fault LED lit Inverter Thyristor Beep continuously Fault LED lit broken Bypass Thyristor short Beep continuously...
  • Page 24 Item UPS Alarm Warning Buzz Bypass Site Wiring Once per second Fault LED blinking Fault Output Short-circuit Once per second Fault LED blinking Rectifier over current Once per second Fault LED blinking Bypass over current Once per second BPS LED blinking Overload Once per second INV or BPS blinking...

  • Page 25: Maintenance

    5. Maintenance UPS use in the appropriate environment (see 3.2 installation considerations) can be free maintenance or less maintenance. Battery maintenance 1. It is recommended that the batteries are manually charged or discharged Once every three or four months if the UPS has not been used for a long time or the power is long-term uninterrupted.

  • Page 26: Troubleshooting

    Troubleshooting and performance of the product 1. In case the UPS can not work normally, it might be wrong in installation, wiring or operation. Please check these aspects first. If you need help, contact our service department, the following messages should be provided for analysis: ...

  • Page 27: Emc Standard/Safety Standard

    Press and hold the ON key for Press the ON key for a more than one second to start the short time No AC power, UPS UPS has no battery Connect UPS battery well, if can’t startup after connected or battery battery voltage low, please turn off pressing the ON voltage low and too...
  • Page 28 Product Performance 6KVA、 10KVA 6KVA、 10KVA 6KVA、 10KVA Type Capacity 4.8KW、8KW 5.4KW、9KW 6KW、10KW Input Single phase & Ground ≥ 0.99(input THDV ≤1%) Power factor Rated voltage 220VAC / 230VAC / 240VAC Rated frequency 50Hz/60Hz Automatically selected Voltage range 110～286Vac Frequency range 40~70Hz 220Vac max：default +25% (+10% ,+15%，20% , 25%)
  • Page 29 ±0.1% (stand alone) Frequency regulation ±0.25% (parallel operation) Utility mode：tracking mains frequency Frequency Battery mode：50Hz/60Hz 1Hz/s (stand alone) Frequency track speed 0.5Hz/s (parallel operation) 105 %～ 110 %，lasts 1 hour load capacity （Mains, drop a 110%～125%,lasts 10 minutes level in battery 125%～150%, lasts 1 minute (PF0.8/0.9) mode）...
  • Page 30 Display LED+LCD Safety Meeting IEC62040-1， GB4943 Max input voltage 320Vac，1 hour（static） Conduction ：IEC 62040-2 Radiation ：IEC 62040-2 Harmonics ：IEC 62040-2 IEC 62040-2 > 2MΩ（500Vdc） Isolation resistance Isolation intension 2820Vdc， <3.5mA，1min Meeting IEC60664-1 1.2/50uS+8/20uS Surge 6kV/3kA. Protection IP20 ◆ Work Environment Model 6kVA-10kVA series 0°...
  • Page 31 Appendix 1 USB communication port definition Definition of Male port: Pin 1 VCC , Pin 2 D- pin 3 D+ , Pin 4 GND Application: use UPSilon2000 Power Management software Available functions of the USB ■ Monitor UPS power status ■...
  • Page 32 Appendix 2 RS232 communication port definition Definition of Male port: Connection between PC RS232 port and UPS RS232 port: PC RS232 port UPS RS232 port Pin 2 Pin 2 UPS send，PC receive Pin 3 Pin 3 PC send，UPS receive Pin 5 Pin 5 ground Available function of RS232:...
