Lifestyle 60441U Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Lifestyle Manuals
  4. Outdoor Storage
  5. 60441U
  6. Assembly instructions manual

Lifestyle 60441U Assembly Instructions Manual

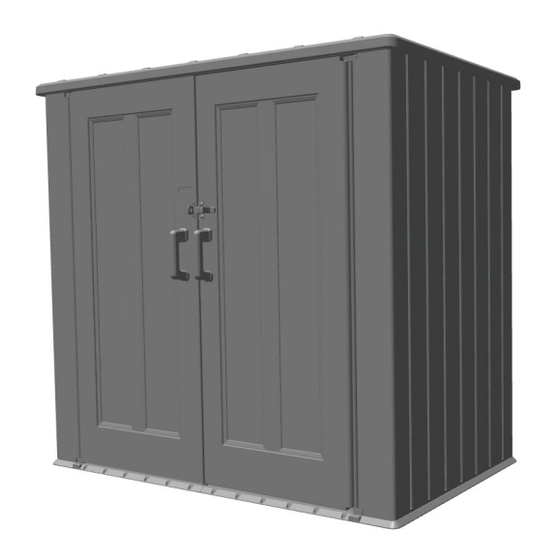

Utility shed
Hide thumbs
Table of Contents

Advertisement

Quick Links

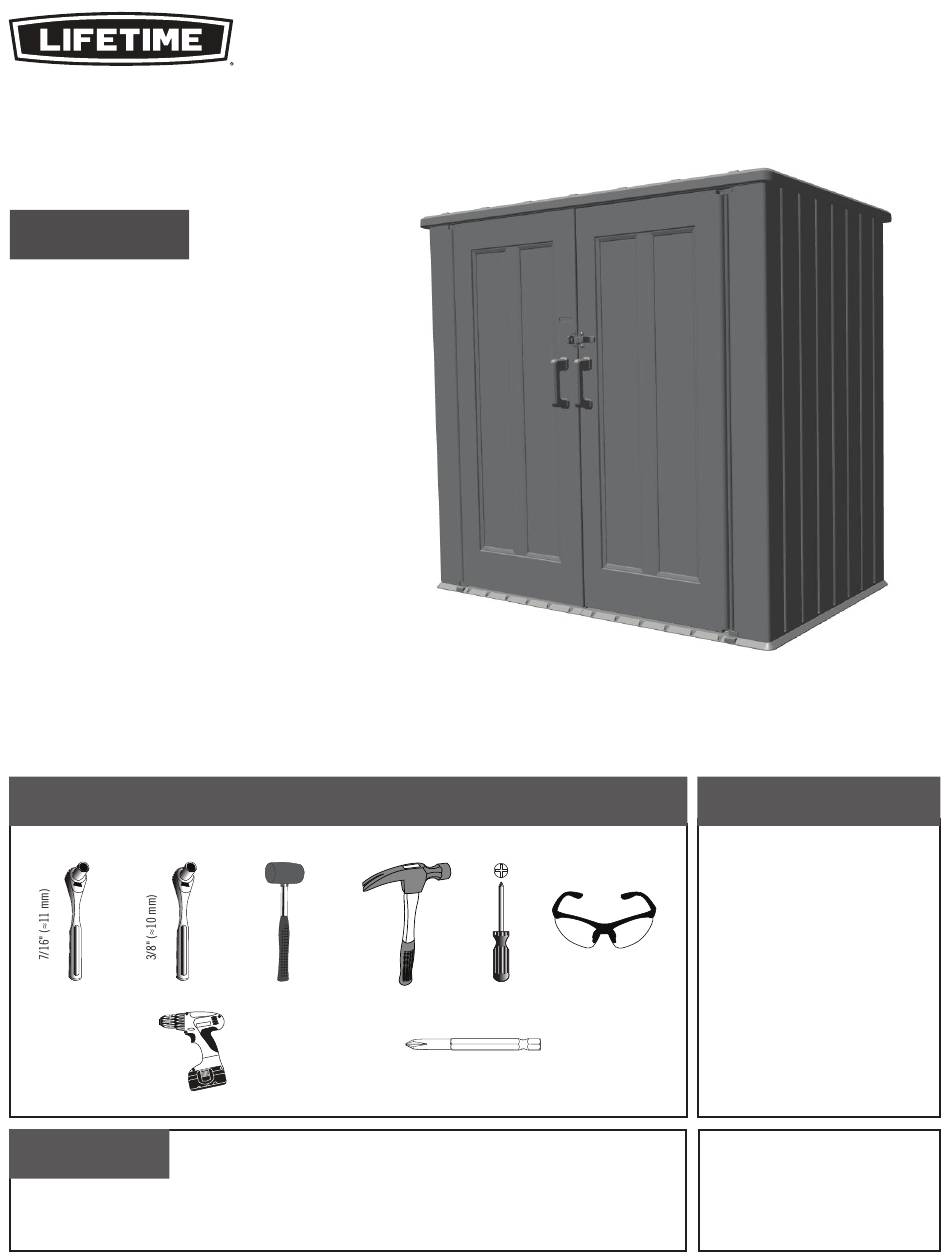

UTILITY
SHED
MODEL 60441U
ITM./ART. # 1713586
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
THIS ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY! NOT FOR
COMMERCIAL USE.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
TOOLS REQUIRED
(Not included-unless otherwise indicated*)
Electric Drill
QUESTIONS?
Call: 1-800-225-3865
(English, French, Spanish)
CONTACT LIFETIME CUSTOMER SERVICE:
Live Chat:
www.lifetime.com/customerservice/home
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
ADC #2 Phillips Bit
(Included)
For Customer Service in mainland
Europe and the United Kingdom:
E-mail: csinternational@lifetime.com

TABLE OF CONTENTS

Icon Legend...................................................4
Warnings & Notices......................................5
Parts Identifi er..............................................6
Door Assembly...............................................8
Floor & Wall Assembly.................................21
Door & Roof Installation.............................46
Shelf Installation........................................58
Wall Hook Installation.................................65
Door Alignment...........................................67
Cleaning & Care..........................................69
Registration..............................................70
Warranty....................................................72
Model Number: 60441U
Product ID:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60441U and is the answer not in the manual?

Questions and answers

Summary of Contents for Lifestyle 60441U

  • Page 1: Table Of Contents

    Door Alignment...........67 Cleaning & Care..........69 ADC #2 Phillips Bit Registration..........70 (Included) Warranty............72 Electric Drill QUESTIONS? Model Number: 60441U CONTACT LIFETIME CUSTOMER SERVICE: Product ID: Call: 1-800-225-3865 For Customer Service in mainland Live Chat: Europe and the United Kingdom: (English, French, Spanish) www.lifetime.com/customerservice/home...
  • Page 2 ADC Foret à empreinte Enregistrement.........70 Phillips n° 2 Garantie............73 (Incluse) Perceuse électrique N° de pièce : 60441U ® QUESTIONS ? CONTACTER AUX SERVICES À LA CLIENTÈLE LIFETIME Référence du produit : Pour les services à la clientèle du Composer le 1-800-225-3865 Entretien en direct: continent européen:...
  • Page 3 Alineación de las puertas......67 Limpieza y cuidado........69 ADC n° 2 Broca Phillips Registro.............70 (Incluida) Garantía............74 Taladro eléctrico Número de pieza: 60441U ® ¿PREGUNTAS? PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME ID del producto: Chat en vivo: Llamar : 1-800-225-3865 Para el servicio a clientes en el www.lifetime.com/customerservice/home...

  • Page 4: Icon Legend

    ICON LEGEND / LÉGENDE DES ICÔNES / LEYENDA DE ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. • Indicates the parts (or no parts) required for a section. •...

  • Page 5: Warnings & Notices

    WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...

  • Page 6: Parts Identifi Er

    PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS Plastic parts / Pièces en plastique / Piezas de plástico DRI (x1) DRH (x1) AND (x1) AHD (x2) AGL (x1) AGW (x1) AGN (x1) AGY (x1) AGO (x1) AGZ (x1) GEL (x1) Metal parts kit / Kit de pièces en métal / Kit de piezas de metal GNK (x1)
  • Page 7 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS Metal parts kit / Kit de pièces en métal / Kit de piezas de metal 68 3/4” (≈174,6 cm) GCU (x2) GKR (x1) GKT (x1) 69 1/2” (176,5 cm) GNQ(x1) Small parts kit / Kit de petites pièces / Kit de piezas pequeñas Hardware bags / Sacs de quincaillerie / Bolsas de herraje AIX (x4)

  • Page 8: Door Assembly

    DOOR ASSEMBLY / ASSEMBLAGE DES PORTES / ENSAMBLAJE DE LAS PUERTAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO GQS (x4) CHK (x4) BYZ (x6) GKP (x2) ADZ (x6) AZP (x4) DKJ (x2) AEB (x4) AEE (x8) AHS (x1) Parts / Pièces / Piezas EPA (x1) EOY (x1) DGR (x1)
  • Page 9 DOOR ASSEMBLY / ASSEMBLAGE DES PORTES / ENSAMBLAJE DE LAS PUERTAS PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico AGO (x1) AGZ (x1) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO Not included—unless indicated otherwise* / Non inclus—sauf indication contraire* / No incluido—salvo indicación contraria* 7/16 in/po (≈11 mm)
  • Page 10 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS LEFT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE GAUCHE / ENSAMBLAJE DE LA PUERTA IZQUIERDA •...
  • Page 11 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) GQS (x2) AZP (x2) AEB (x2) • Set the left door on its front, and attach the locking hardware to the door as indicated. •...
  • Page 12 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Set the left door channel (GNK) into the groove along the edge of the door. Align the holes at the top and bottom of the channel with the divots at the top and bottom of the left door.
  • Page 13 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x6) ADC (x1)* • Align the holes in the channel with the divots in the door. Secure the channel to the door using six (6) screws (ADZ). Start at the middle of the channel and work outwards.
  • Page 14 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADC (x1) CHK (x4) • Orient the top and bottom deadbolts (DGR & DGS) as indicated, and align the holes in the deadbolt with those at the bottom of the channel.
  • Page 15 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x3) AEE (x3) • Attach the front and rear handle pieces (GJS and GJR) together. Secure the handle to the door using the hardware indicated. •...
  • Page 16 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS RIGHT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE DROITE / ENSAMBLAJE DE LA PUERTA DERECHA •...
  • Page 17 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide a right door square tube (GNL) into the square hole at the bottom of the right door (AGZ) until it hangs out about two inches (≈5 cm).
  • Page 18 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AHS (x1) • Insert an end cap (AHS) into the end of the square tube. Push the tube into the door until the end cap is fl ush with the bottom of the door.
  • Page 19 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x3) AEE (x3) 1.10 • Attach the front and rear handle pieces (GJS and GJR) together. Secure the handle to the door using the hardware indicated. •...
  • Page 20 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) 3/8 in/po GKP (x2) AEE (x2) GQS (x2) AZP (x2) DKJ (x2) AEB (x2) (≈10 mm) 1.11...

  • Page 21: Floor & Wall Assembly

    FLOOR & WALL ASSEMBLY / ASSEMBLAGE DU PLANCHER ET DES MURS / ENSAMBLAJE DEL PISO Y LOS MUROS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces / Piezas HNE (x2) AYR (x2) ADZ (x39) FAB (x2) ADC (x1) GJZ (4) GQO (x6) ADJ (x2)
  • Page 22 FLOOR & WALL ASSEMBLY / ASSEMBLAGE DU PLANCHER ET DES MURS / ENSAMBLAJE DEL PISO Y LOS MUROS PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico AGL (x1) AGW (x1) AGN (x1) AGY (x1) AHD (x2)
  • Page 23 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AYR (x2) • Set the fl oor panel (DRI) fl at on the ground. Place the fl oor panel (DRH) at a 45° angle next to fl oor panel (DRI) with the tabs on one panel between those on the other.
  • Page 24 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Insert the three tabs at the bottom of a rear wall panel (AHD) into the 2nd, 3rd and 4th slots from the rear, right edge of the fl oor. •...
  • Page 25 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide the panel to the left as far as it will go. If necessary, gently tap the panel with a rubber mallet. •...
  • Page 26 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Insert the three tabs at the bottom of the other rear wall panel (AHD) into the 2nd, 3rd and 4th slots from the rear, left edge of the fl...
  • Page 27 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide the panel to the right until it abuts on the fi rst panel and the holes align. If necessary, gently tap the panel with a rubber mallet. •...

  • Page 28: Avertissements Et Avis

    SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) • Secure the panels together with fi ve (5) screws (ADZ). Do not overtighten. Remember the 4th warning of the WARNINGS & NOTICES on page 5.
  • Page 29 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Insert the front three tabs at the bottom of the right, rear corner wall panel (AGW) into the rear three slots on the right edge of the fl...
  • Page 30 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide the panel to the front as far as it will go. If necessary, gently tap the panel with a rubber mallet. •...
  • Page 31 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 2.10 • Carefully tilt the panel and fold the back end until it’s in front of the right rear wall panel and the tab at the bottom is over the slot in the fl...
  • Page 32 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 2.11 • Pull down on the panel until the tab snaps into the slot. Secure the panels together with fi ve (5) screws (ADZ). •...
  • Page 33 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 2.12 • Insert the three rear tabs of the right, front corner wall panel (AGY) into the three front-most slots along the right edge of the fl...
  • Page 34 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 2.13 • Slide the panel to the rear corner wall panel and secure it in place with fi ve (5) screws (ADZ). If necessary, gently tap the panel with a rubber mallet to move it backward.
  • Page 35 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 2.14 • Attach the rear-left corner wall panel (AGL) similarly to the rear-right corner wall panel. Secure with fi ve (5) screws (ADZ). Do not overtighten—just until fl...
  • Page 36 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 2.15 • Attach the front-left corner wall panel (AGN) similarly to the front-right corner wall panel. If necessary, gently tap the panel with a rubber mallet to move it backward.
  • Page 37 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS FAB (x2) 2.16 • Using two (2) adults, lay the unit on its back. • Á l’aide de deux (2) adultes, mettre l’ensemble sur le dos. •...
  • Page 38 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS HNE (x2) 2.18 • Insert a hinge cap (HNE) at the bottom of the unit between the wall and fl oor as oriented below. Insert the wall hinge tube (GCU) into the bottom of the wall, going through the fl...
  • Page 39 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 2.19 • Using two (2) adults, stand the unit back up. • Á l’aide de deux (2) adultes, mettre l’ensemble vertical. •...
  • Page 40 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x2) GQO (x2) ADZ (x2) 2.20 • The rear walls have been removed from this image. We’re looking from the back towards the front. Attach an L-bracket (GQO) to the bottom of the front-right corner wall panel using one (1) screw (ADZ).
  • Page 41 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) CXK (x4) GQO (x4) BZA (x4) AEE (x4) 2.21 • Secure an L-bracket (GQO) to each end of a wall support channel (GNR). The long end of the bracket goes against the channel. Repeat this step for second wall support channel.
  • Page 42 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) 2.22 • Attach a wall/shelf support channel to the rear corner wall panels at the locations shown. Insert a screw (ADZ) only into the bottom two holes for now.
  • Page 43 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x2) 2.23 • Insert a screw (GJZ) through the L-bracket and into the fl oor as shown. Repeat this step for the other side of the fl oor. •...
  • Page 44 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) 2.24 • Secure the two (2) rear wall/shelf support channels (GNS) to the rear wall at the locations indicated using four (4) screws (ADZ) each.
  • Page 45 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) CNH (x2) ADJ (x2) 2.25 • Secure the wall/shelf support channels to the top of the rear wall using the hardware provided. Again, do not overtighten. •...

  • Page 46: Door & Roof Installation

    DOOR & ROOF INSTALLATION / INSTALLATION DES PORTES ET DU TOIT / INSTALACIÓN DE LAS PUERTAS Y DEL TEJADO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO HNE (x2) DIW (x2) GLW (x11) HDG (x2) ADV (x16) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal parts / Pièces en métal / Piezas de metal GKR (x1) GKT (x1)
  • Page 47 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS GLW (x3) • Place the roof beam (GKT) down onto the underside of the roof panel (AND). Position the three center-most holes in the tube over the holes in the panel.
  • Page 48 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS GLW (x8) • Secure the header (GKR) to the roof panel using eight (8) screws (GLW). Tighten screws only until fl ush with the header. •...
  • Page 49 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide the hinge tube in the left door down onto the rib in the hinge cap. Remember, this is easier with two people. •...
  • Page 50 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS HNE (x1) • Slide another hinge cap over the two tubes. The rib in the hinge cap should fi t into the door hinge tube. •...
  • Page 51 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS HNE (x1) • Perform steps 3.3–3.4 for the right door. • Réaliser les étapes 3.3–3.4 pour la porte droite. •...
  • Page 52 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • Open the doors as shown. Orient the roof assembly as shown and set it down on the walls of the shed. The header should be over the doors.
  • Page 53 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x4) • While one person holds the roof panel against the back wall, secure the roof panel to the left side of the back wall using four (4) screws (ADV).
  • Page 54 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x4) • Repeat step 3.7 for the back right. Do not overtighten. Please note the angle of insertion of the screws—upward. •...
  • Page 55 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x8) • The left walls have been removed from this image. We’re looking from the left towards the right. As one adult holds the roof panel tight against the wall panels, secure the roof panel to the right corner wall panels using four (4) screws (ADV).
  • Page 56 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS HDG (x2) 3.10 • The rear walls have been removed from this image. We’re looking from the back towards the front. Secure the roof panel to the front, right corner wall panel using one (1) screw (HDG).
  • Page 57 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS DIW (x2) 3.11 • Secure the roof beam to the wall support channel using one (1) screw (DIW). Do not overtighten. Repeat this step for the right side. •...

  • Page 58: Shelf Installation

    SHELF INSTALLATION / INSTALLATION DU RAYONNAGE / INSTALACIÓN DE LA ESTANTERÍA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO AIZ (x2) GNP (x2) ADZ(x18) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal parts / Pièces en métal / Piezas de metal 69 1/2”...
  • Page 59 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) • There are four heights from which to choose for the shelf. Choose the height for the shelf. Attach the shelf brackets (GNP) to the left and right rear corner panels using two (2) screws (ADZ) each.
  • Page 60 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Attach the triangular shelf brackets (AIZ) to the wall support channels. The brackets must be at the same height. •...
  • Page 61 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Snap the support tube (GNQ) into the groove along the bottom of the shelf (GEL). To orient the shelf correctly, the three- letter ID, GEL, on the bottom of the shelf should be on the left-hand side.
  • Page 62 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Set the shelf on the brackets and align the holes in the shelf with those in the brackets. If the holes do not align, set the opposite edge of the shelf against the rear wall.
  • Page 63 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Secure the shelf to the brackets using eight (8) screws (ADZ). Do not overtighten; tighten only only until fl ush with the brackets. •...
  • Page 64 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x6) • Insert three (3) screws (ADZ) into the side wall/shelf support channel at the unused shelf locations. (The locations of these holes depends on the height of the shelf.) Not all holes in the channels have corresponding holes in the wall.

  • Page 65: Wall Hook Installation

    WALL HOOK INSTALLATION / INSTALLATION DES CROCHETS MURAUX / INSTALACIÓN DE LOS GANCHOS MURALES ACCESSORIES REQUIRED / ACCESSOIRES REQUIS / ACCESORIOS REQUERIDOS GKU (x6) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO...
  • Page 66 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) SECCIÓN 5 (CONTINUACIÓN) TOOLS AND ACCESSORIES REQUIRED / OUTILS ET ACCESSOIRES REQUIS INSTRUMENTAL Y ACCESORIOS REQUERIDOS GKU (x6) • Insert the six (6) wall hooks (GKU) into any of the notches in the wall panels (any wall of the shed). Then push downward to lock them in place.

  • Page 67: Door Alignment

    DOOR ALIGNMENT / ALIGNEMENT DES PORTES / ALINEACIÓN DE LAS PUERTAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic pieces / Pièces en plastique / Piezas de plástico AIX (x4) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO Not included–unless indicated otherwise* / Non inclus–sauf indication contraire* / No incluido, salvo indicación contraria*...
  • Page 68 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • If the doors are not level, follow one simple step below to even them out. •...

  • Page 69: Cleaning & Care

    CLEANING & CARE Congratulations on your Lifetime ® product purchase. By following the instructions below, your new Lifetime product should provide you with years of service and enjoyment. The polyethylene panels are stain and solvent resistant. Most stains can be removed using a mild soap and a soft-bristled brush.

  • Page 70: Registration

    REGISTER YOUR PRODUCT ONLINE AT WWW.LIFETIME.COM ® At Lifetime , we are committed to providing innovative and quality products. While registering, you will have the opportunity to give us your feedback. Your input is valuable to us. • You can also opt in to receive new product notifi cations or promotions. •...
  • Page 71 NOTES / REMARQUES / NOTAS...

  • Page 72: Warranty

    10-YEAR LIMITED FACTORY WARRANTY THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE. Lifetime Lawn and Garden products are warranted to the original purchaser to be free from defects in material or imperfections that impair the use of the product.

  • Page 73: Garantie

    GARANTIE DE FABRICATION LIMITÉE DE 10 ANS ® LIFETIME PRODUCTS, INC. RÉSERVE LE DROIT DE FAIRE DES SUBSTITUTIONS EN CAS DE RECOURS EN GARANTIE SI LES PIÈCES NE SONT PAS DISPONIBLES OU SONT OBSOLÈTES. de matériel et de fabrication pour une période de 10 ans à compter de la date d’achat. On entend par « défaut » une imperfection qui nuit à...

  • Page 74: Garantía

    GARANTÍA DE FÁBRICA LIMITADA POR 10 AÑOS EL FABRICANTE SE RESERVA EL DERECHO DE HACER SUSTITUCIONES EN LOS ELEMENTOS REEMPLAZADOS BAJO GARANTÍA SI LAS PIEZAS NO ESTÁN DISPONIBLES O SON OBSOLETAS. El comprador original recibe una garantía de que los productos de césped y jardín de Lifetime están libres de defectos de material o mano de obra durante un período de 10 años a partir de la fecha de compra original al por menor.
  • Page 75 IMPORT INFORMATION / IMPORTATIONS / INFORMACIÓN DE IMPORTACIONES Importado por: Distributed by: Costco Wholesale Corporation Importadora Primex S.A. de C.V. Blvd. Magnocentro No. 4 P.O. Box 34535 Seattle, WA 98124-1535 San Fernando La Herradura Huixquilucan, Estado de México C.P. 52765 1-800-774-2678 www.costco.com RFC: IPR-930907-S70...
  • Page 76 ® ENHANCE YOUR LIFETIME PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS ® To purchase accessories or other Lifetime products, visit us at: www.lifetime.com Or call: 1-800-424-3865 ® AMÉLIORER L’ACHAT LIFETIME EN AJOUTANT DES ACCESSOIRES OU D’AUTRES PRODUITS ® Pour acheter des accessoires ou des autres produits Lifetime , visiter le : www.lifetime.com Ou composer le 1-800-424-3865...
