Seneca VISUAL8E Installation Instructions

VISUAL8E
1
Installation and Startup Guide
This document covers the installation of VISUAL8E HMI, for the detailed specifications and
operation, please refer to Datasheet, Brochure and EasyBuilder Pro User Manual. Please read all
warnings, precautions, and instructions on the device carefully before use.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated, indoor use only.
The HMI product has been tested to conform to European CE requirements. This
Electrical means that the circuitry is designed to resist the effects of electrical noise. This
Environment does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Cleaning Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations cleaning.
IP Rating IP 66
Protection impairment if used in a manner not specified by the manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1 (2) Human Machine Interface *1 (3) Power Connector *1
(4) Brackets & Screws *1 pack (5) USB Stick Clamp & Tying Strap *1
3

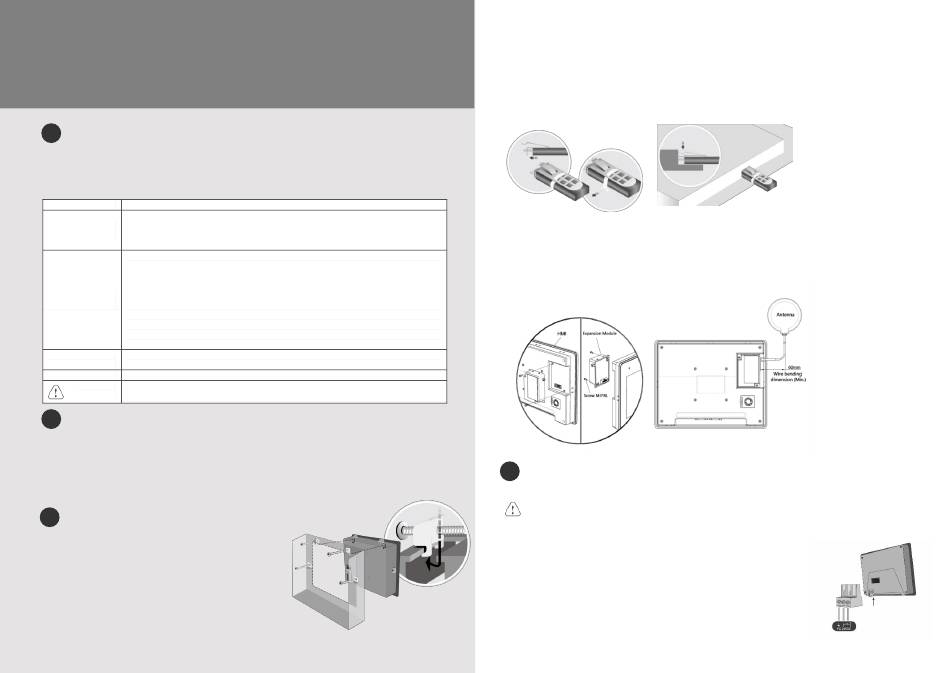

Installation Instructions
Use a control box that provides enough stiffness. Cutout
Dimension: 260 mm x 202 mm. Secure the operator panel in
position, using all the fastening holes and the provided
brackets and screws. Screw Torque: 2.6 ~ 3.9 lbf.in. (For
reaching waterproof effect and preventing the panel from
being deformed.)
Plan for adequate space around the unit and inside the
enclosure, for ventilation and cables. Consider the heat from
other devices inside the enclosure. The ambient temperature
Installation Instruction
around the unit must be 0 ~ 50°C
Minimum required clearances (along the overlay): Top 15 mm / Bottom 50 mm / Sides 80 mm
Maximum panel thickness: 4.5 mm
USB Stick Clamp Usage
Combining the USB Stick with the clamp and the tying strap can prevent USB stick from disconnecting
with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.
Expansion Module and Magnetic Mount Antenna
1. Connect the expansion module by inserting it into the given slot in HMI's rear cover.
2. Tighten the module to HMI's rear cover using two M3*8L screws.
3. Lock the antenna's SMA connector to the module's connector.
Please reserve space for installing the antenna with minimum bend radius taken into consideration, in
order to prevent physical damage to the antenna or impairment of the antenna's performance.
4
Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
NOTE:
Connect positive DC line to the '+' terminal and the DC ground to the '-'
terminal.
Spécifications du connecteur d'alimentation:
AWG de fil: 24 ~ 12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
