Summary of Contents for SIRCHIE Scan-N-Find
- Page 1 No. KSS8900 Copyright© 2010 by SIRCHIE, Youngsville, NC 27596 USA All Rights Reserved.
-
Page 2: Table Of Contents
Conventional.&.Digital.Photography..................12-13 Scan-N-Find™.Setup.for.Film.and.Digital.Photography.............14 Connecting.A.Camera.to.the.Scan-N-Find™.(Digital.&.Conventional)........14 Using.the.Camera.Coupler......................15 Camera.Relay.Lens.Adapter......................15 FAQ’s............................17 Maintenance..........................18 Limited.Warranty........................18 Safety.Information........................19 Kit.Information..........................20 Optional.Accessory.Packages.for.KSS8900................20 SIRCHIE 100 Hunter Place, Youngsville, NC 27596 USA Phone: (919) 554-2244 • (800) 356-7311 Fax: (919) 554-2266 • (800) 899-8181 Email: sirchieinfo@sirchie.com • Website: www.sirchie.com... -
Page 3: Introduction
For.example,.the.sunlight.impinging.on.a.healthy.leaf.is.made.up. of.all.visible.colors. The.leaf.will.absorb.most.of.those.colors,.but.will.strongly.reflect.a.particular.range.of.colors.back. to.our.eyes,.which.is,.of.course,.why.it.appears.green.to.us. Other.objects.reflect.other.colors. It.is.differences.in.the. reflective.properties.of.materials.that.allow.us.to.distinguish.objects.that.do.not.emit.their.own.light. Such.differences. in.reflectance.extend.to.most.materials.and.to.most.wavelengths.of.radiation. Our.eyes.easily.detect.subtle.differ- ences.in.reflectance.in.the.visible.light.wavelengths. But.there.are.wavelengths.that.our.eyes.do.not.see..Instruments. designed.to.see.in.those.wavelengths.show.us.the.world.in.a.new.perspective. Detection.and.enhancement.of.fingerprints.by.reflection.of.short.wavelength.UV.light.has.long.been.reported.in. the.Forensic.Journals. In.brief,.differences.in.reflectance.exist.between.a.fingerprint.and.the.surface.on.which.it.is. located;.although.they.may.be.slight,.instruments.can.be.designed.to.amplify.and.enhance.those.differences. The.SIRCHIE Scan-N-Find™.Pocket.Imager.is.one.of.a.new.generation.of.such.instruments. It.utilizes.a.micro- channel.plate-based.image.intensifier.in.conjunction.with.optics.specifically.designed.to.image.short.wavelength. (ultraviolet).light.and.a.series.of.special.bandpass.filters.to.allow.you.to.see.untreated.fingerprints.even.in.daylight. Scan-N-Find™ Pocket imager kit contents: 1-.KSS8997.Pocket.Imager.w/PSS100b,.25mm.Objective.Lens,.254nm.Filter,.and.Laser.Pointer 1-.CR123.Lithium.Battery 12-.AA.Alkaline.Batteries 1-.UVP600ST.UV.Panther.AC/DC.Shortwave.Light,.254nm 1-.58mm.Camera.Adapter 1-.CUV100TS.UV.Mini.Light.Source.. (4-watt,.254nm.shortwave,.battery.operated) 2-.797GV.UV.Protective.Spectacles 1-.KSS684.Pkg..Arrow.Designators,.100-pk 1-.CR123.Lithium.Battery 1-.Operator’s.Manual 1-.Carrying.Case,.Custom-fitted,.moisture.re- sistant;.Dimensions:.21"W.x.9"H.x.16.5"D.. -
Page 4: Specifications.and.features

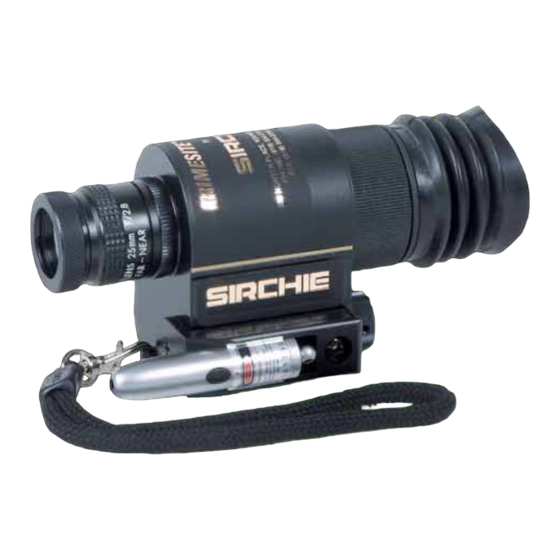

Specifications and Features FocuSiNG BARREL EYEPiEcE FocuSiNG RiNG RuBBER EYEcuP uSER-FAciNG coNtRoL PANEL ANd BAttERY AccESS 6" wRiSt LANYARd LASER PoiNtER oPticS The.SIRCHIE.PSS100b.25mm.f/2.8.lens.has.been.designed.as.an.integral.component.of.the.Scan-N-Find™. Pocket.Imager..The.PSS100b.lens.is.an.ultraviolet.(UV).compound.lens.designed.specifically.for.the.detection.of. fingerprints.using.UV.light.with.optimum.performance.in.the.UV.waveband.of.230nm.to.290nm. •. Focal Length:.25mm •. Lens construction:.Quartz •. Filter:.Integral.254nm •. Aperture:.f/2.8.fixed •. Focus Range:.~14".to.infinity •. Mechanical Length: 37mm.to.53mm •. - Page 5 MA02-16ENG-REV8 uV iMAGE iNtENSiFiER tuBE •. GEN.II,.double.proximity.focused,.18mm •. Built-in.over.brightness.protection.(tube.automatically.limits.gain.from.bright.light.sources) •. >/=40.Lp/mm.typical •. P22.Phosphor •. S20.Photocathode •. Input.Window:.Quartz •. Image.Inversion:.None iMAGER •. Material:.Extruded.Aluminum,.6061-T6.alloy •. Finish:.Black.Anodized,.Vinyl.covered.selected.areas •. Objective.Mount:.C-mount •. 6".Wrist.Lanyard,.removable •. Eyepiece,.with.removable.rubber.eyecup . -.Adjustable.focus . -.25mm.eye.relief BAttERY •. Lithium,.3.0V.DC,.type.CR123 coNtRoL PANEL •. Rotary.Control,.Power.ON/OFF •.
-
Page 6: Using.the.scan-N-Find. ™ .Pocket.imager/Initial.setup
MA02-16ENG-REV8 Using the Scan-N-Find Pocket Imager ™ uSiNG thE iMAGER/iNitiAL SEtuP installing the Battery To. insert. the. CR123. 3V. Lithium. Battery. into. the. . Scan-N-Find™.Pocket.Imager,.remove.the.battery.com- partment. cover. (Fig.. 1). by. turning. it. counterclockwise.. Insert.the.battery.into.the.compartment.with.positive.(+). terminal.toward.the.inside.(Figure.2)..Replace.the.battery. compartment.cover.by.turning.it.clockwise..DO.NOT.over. tighten..Check.to.see.if.battery.is.installed.correctly.by. rotating.the.Fingertip.Control.Knob.clockwise.to.the.ON FIGURE 1—Battery Access FIGURE 2 position..The.green.LED.should.illuminate.(if.not,.check. -
Page 7: Operating.standard.uv.light.sources
MA02-16ENG-REV8 oPERAtiNG StANdARd uV LiGht SouRcES SPECIAL PRECAUTION: Avoid the use of shortwave UV light (254nm) in the presence of visible bloodstains if subsequent DNA analysis is a consideration. Collect blood samples prior to shortwave UV light exposure. WARNING: Prior to operating any shortwave UV light, be sure to observe the UV exposure precautions mentioned in the safety section of this manual. - Page 8 SiRchPod coPY StANd ® The. KSS9200. SIRCHPOD . Copy. Stand. was. de- ® signed.specifically.for.laboratory.and.field.use.when. photographing. latent. fingerprints. and. other. forms. of. physical.evidence..The.device.is.supplied.as.a.com- panion.to.the.SIRCHIE .Scan-N-Find™.Pocket.Imager.. The.SIRCHPOD .copy.stand.accommodates.any. ® device.equipped.with.a.tripod.mount..The.copy.stand. is.equipped.with.adjustable.legs.and.a.swivel.camera. mount.permitting.a.range.of.up.to.180°.degrees..It.is. configured.in.such.a.manner.as.to.allow.photographs. to.be.taken.directly.above.an.object.without.the.support. legs.encroaching.into.the.photo. Assembly .(not.shown): Installing.the.SIRCHPOD .legs.is.the.only.assembly.
-
Page 9: Operating.the.laser.pointer
MA02-16ENG-REV8 FIGURE 2—Shoe Mounting 3. Place.the.Imager.and.shoe.assembly.back.into.the.SIRCHPOD ® mount.and.lock.it.in.place.using.the.brass.lever..Position.the. Imager.at.the.desired.angle.by.loosening.the.large.adjusting. screw.(the.25mm.UV.lens.should.be.pointing.down.towards. the.center.opening.of.the.stand.as.shown.in.Figure.3)..The. FIGURE 3 copy.stand.is.now.assembled.and.ready.for.use. oPERAtiNG thE LASER PoiNtER The.Class.IIIa.Laser.Pointer.is.mounted.to.the.Scan- N-Find™.Pocket.Imager.by.snapping.it.into.the.mounting. cradle.located.on.the.left.side.of.the.Imager.(Fig..1)..The. Activation. Button. should. be. facing. away. from. the. unit.. It. is. powered. by. two. type. L1154. batteries. To.operate.the. Laser. Pointer,. simply.press.and. -
Page 10: Canvassing.the.crime.scene
MA02-16ENG-REV8 cANVASSiNG thE cRiME ScENE when using the Scan-N-Find™, Follow this 5-Point checklist: Set.the.Scan-N-Find™.up.as.described.on.Page.6.and.make.sure.the.following.checklist.is.completed: 1. Turn.the.Imager.ON.and.verify.the.green.LED.is.lit. 2.. Ensure.that.the.eyepiece.is.properly.focused. 3. Point.the.shortwave.UV.light.toward.the.surface.of.interest. 4. Point.the.Imager.toward.the.surface.of.interest. 5.. Focus.the.25mm.UV.lens. NOTE: Adjust the angle of the light to get the optimum reflection.. Having.the.UV.light.pointed.directly.at.the.surface.of.interest,.or.at.too.great.of.an.angle,.will.yield.poor.results.. Your.objective.should.be.to.manipulate.the.UV.light.to.reflect.OFF.of.the.surface.you.are.viewing.and.back.into.the. UV.lens..Imagine.throwing.a.tennis.ball.against.a.wall.and.trying.to.get.the.ball.to.travel.back.to.a.specific.target. after.hitting.the.wall..This.same.principle.applies.to.getting.the.UV.light.to.bounce.back.toward.the.UV.lens..Angle is everything! To.canvass.a.crime.scene,.hold.the.Scan-N-Find™.Pocket.Imager.in.one.hand.and.the.RUVIS.Companion.Illumi-... -
Page 11: Notes
MA02-16ENG-REV8 Notes __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________... -
Page 12: Conventional.&.Digital.photography
Untreated magazine cover photo- graphed with a digital camera connected to the Scan-N-Find™. Untreated fingerprint on a handgun photographed with a digital camera con- nected to the Scan-N-Find™. - Page 13 Scan-N-Find™. Enhancement of Fumed Prints: The. Scan-N-Find™. is. capable. of. enhancing. and. obtaining. exceptional. reproduction.of.prints.fumed.with.cyanoacrylate.(superglue).without.the.use. of.dye-staining,.lasers.or.alternate.light.sources..This.applies.to.fumed.latent. prints.on.multi-colored.backgrounds.as.well. keeping Records (Film and digital Photography): Successful. photography. requires. practice. and. patience..As. you. gain.
-
Page 14: Scan-N-Find™.Setup.for.film.and.digital.photography
MA02-16ENG-REV8 ScAN-N-FiNd™ SEtuP FoR FiLM ANd diGitAL PhotoGRAPhY: Set.the.Scan-N-Find™.up.for.use.(as.described.on.page.6).and.make.sure.the.following.checklist.is.completed: 1. Turn.the.Imager.ON.and.verify.the.green.LED.is.lit. 4. Point.the.Imager.toward.the.surface.of.interest. 2.. Ensure.that.the.eyepiece.is.properly.focused. 5.. Focus.the.25mm.UV.lens. 3. Point.the.shortwave.UV.light.toward.the.surface.of. interest. Preparing the Evidence (Film & digital Photography): 1. Mount.the.Scan-N-Find™.Pocket.Imager.to.either.a.tripod.or.the.SIRCHPOD ® Copy.Stand.for.steady.support.while.photographing.(see.page.8)... 2. Focus.the.Imager.until.you.have.a.clear,.sharp.image.of.the.fingerprint.you. will. be. photographing.. NOTE: The camera must be focused to what the Imager is seeing. -
Page 15: Using.the.camera.coupler
MA02-16ENG-REV8 uSiNG cAMERA couPLER No. kSS9651 The. KSS9651. Camera. Coupler. connects. the. digital. camera. to. the. Scan-N-Find™. Pocket.Imager.for.digital.photography. 1. With.the.Lens.Conversion.Adapter.in.place,.screw.the.Camera.Coupler.onto.the. digital.camera.(Figures.5.and.6). 2. Remove. the. rubber. eyecup. from. the. Scan-N-Find™’s.eyepiece. 3. With.the.Lens.Conversion.Adapter.and.the. Camera Coupler Camera.Coupler.in.place.on.the.digital.cam- era,.slide.the.Camera.Coupler.over.the.end.of.the.eyepiece.as.shown.in. Figure.7. 4. Tighten.the.three.thumbscrews.evenly.around.the.eyepiece.(Figure.8).. DO.NOT.over.tighten.. FIGURE 5... - Page 16 Set-up (Film & digital Photography): 1. Focus.the.camera. 2. Adjust.the.camera’s.aperture.setting.to.select.what.works.best.for.the.image.you.will.be.photographing. 3. You.are.now.ready.to.photograph.your.evidence. IMPORTANT: Once you have successfully recorded the fingerprint using a film or digital camera, SIRCHIE highly recommends that you always treat and lift the print using conventional methods. Another.great.advantage.of.the.Scan-N-Find™.Pocket.Imager is.that.it.greatly.enhances.prints.that.have.been. fumed.with.cyanoacrylate.(super.glue)..SIRCHIE.recommends.the.No..SCW100.Cyanowand.Kit—it.makes.a.great.
-
Page 17: Faq's
. will ultraviolet light get into my eyes if i’m wearing my protective goggles? . No..Ultraviolet.light.cannot.pass.through.your.protective.goggles.and.enter.your.eyes..However,.the.goggles. don’t.seal.around.your.eyes,.and.reflected.UV.may.get.around.the.goggles.to.your.face.and.eyes..Moral.of.the. story:.Wear your protective facemask.. At what angle to the surface should i hold the lamp? Reflectivity.is.highly.dependent.upon.the.relative.angles.of.the.light.source.(lamp),.the.target.(print).and.the.de- tector.(Imager),.as.well.as.on.the.target.materials..The.quality.of.the.image.you.see.through.the.Scan-N-Find™. Pocket.Imager.will.vary.depending.on.the.angle.at.which.you.hold.the.lamp.to.the.surface:.One.angle.may.show. no.results.while.another.may.reveal.a.print.in.incredible.detail..Move.the.lamp.around.until.you.get.your.best. results..Try.to.keep.the Imager perpendicular.to.the.surface.for.best.focus. can the ultraviolet light damage evidence? It.is.generally.agreed.that.damage.to.DNA.can.occur.in.evidential.materials.illuminated.by.shortwave.ultraviolet.. -
Page 18: Maintenance
ShoRtwAVE uV LAMPS Deposits.of.foreign.materials.on.lamps.can.reduce.the.transmission.of.UV..Cleaning.germicidal.lamps.with.a.clean. cloth.dampened.with.alcohol.or.ammonia.and.water.will.maintain.maximum.UV.output. The.output.from.all.germicidal.UV.lamps.decreases.with.use.as.the.glass.tube.gradually.loses.its.ability.to.transmit. the.short.wavelengths.of.ultraviolet..Even.though.they.may.still.emit.a.visible.violet.glow,.the.UV.output.may.be.close. to.zero..Replace.lamps.on.a.regular.basis..Lamps.contain.mercury;.dispose.of.in.an.environmentally.safe.manner. Germicidal.lamps.operate.most.effectively.at.room.temperature.(72°-76°F).with.output.diminishing.as.the.tem- perature.increases.or.decreases. GENERAL PREcAutioN Remove.all.batteries.during.of.extended.periods.of.storage.to.prevent.damage.from.possible.battery.leakage. Limited Warranty SIRCHIE.warrants.to.the.original.purchaser.that.the.Scan-N-Find™.shall.be.free.from.all.defects,.both.in.materials. or.workmanship,.for.a.period.of.twelve.(12).months.from.the.date.of.shipment.to.the.purchaser..At.its.option,.SIRCHIE. will.repair.or.replace.any.Scan-N-Find™.or.part(s).that.prove.to.be.defective,.free.of.charge.including.shipping.cost. to.purchaser.during.the.stated.warranty.period. This.limited.warranty.shall.not.apply.if.the.Scan-N-Find™.and/or.any.part.has.been.damaged.or.caused.to.be. defective.by.unreasonable.use,.accident,.negligence,.service.or.modification.by.anyone.other.than.SIRCHIE.or.a. SIRCHIE.authorized.agent,.or.by.any.causes.unrelated.to.defective.materials.or.workmanship..Additionally,.this. warranty.does.not.apply.to.batteries.or.damage.caused.by.their.failure.. NoticE The.original.purchaser.must.return.the.Owner.Registration.Card.furnished.with.the.Scan-N-Find™.to.SIRCHIE.as. condition.precedent.to.warranty.coverage.and.performance..The.warranty.registration.card.must.be.received.within. thirty.(30).days.of.the.shipment.date.to.the.original.purchaser.to.validate.the.warranty... To.receive.in-warranty.service,.a.defective.Scan-N-Find™.and/or.any.part.must.be.received.at.SIRCHIE.no.later. than.one.(1).week.after.the.end.of.the.warranty.period.and.must.be.accompanied.with.proof.of.date.of.purchase. satisfactory.to.SIRCHIE... A ..RMA.(Return.Merchandise.Authorization).number.issued.by.SIRCHIE.must.accompany. all.returned.items..To.obtain.a.RMA.number.and.information.for.return.shipment.contact.SIRCHIE,.Customer.Ser- vice,.100.Hunter.Place,.Youngsville,.NC.27596,.(919).554-2244...All.items.returned.must.be.properly.packaged.and. insured.prior.to.shipment..SIRCHIE.assumes.no.liability.for.loss.or.damage.incurred.during.shipment.to.SIRCHIE. This.warranty.gives.you.specific.legal.rights,.and.you.may.also.have.other.rights.which.vary.from.state.to.state. (or.jurisdiction.to.jurisdiction)..All.expressed.and.implied.warranties.for.the.Scan-N-Find™,.including,.but.not.limited. to,.any.implied.warranties.and.conditions.of.merchantability.and.fitness.for.a.particular.purpose,.are.limited.in.time. to.the.term.of.the.limited.warranty.period.. SIRCHIE’s.warranty.obligations.and.purchaser’s.remedies.thereunder.are.solely.and.exclusively.as.stated.herein.. In.no.case.will.SIRCHIE.be.liable.for.consequential.damages.or.any.loss.incurred.because.of.interruption.of.service. -
Page 19: Safety.information
There.are.no.other.OSHA.regulations.which.specifically.address.optical.radiation.from.low.pressure.ultraviolet. lamps.or.lasers.of.less.than.5-mW.output.power. LASER PoiNtER The.KRIMESITE™ IMAGER.is.provided.with.a.snap-on.Class.IIIa.Laser.Pointer.to.be.used.to.help.locate.evidence. being.viewed.at.a.distance..Class.IIIa.denotes.lasers.or.laser.systems.that.normally.would.not.produce.a.hazard.if. viewed.only.momentarily.with.the.unaided.eye..They.may.present.a.hazard.if.viewed.through.collecting.optics.such. as.binoculars,.or.if.the.beam.is.stared.into..Viewing.a.laser.spot.through.the.KRIMESITE™ IMAGER.presents.no. hazard,.as.the.beam.is.only.indirectly.viewed.(it.passes.through.an.image.tube). SIRCHIE.does.not.manufacture.this.laser.device..The.warning.provided.by.the.manufacturer.states: Caution—Laser Radiation—do not stare into beam or view directly with optical instruments. PREcAutioNS: uLtRAVioLEt RAdiAtioN The.three.areas.of.ultraviolet.radiation.are.UV-C.at.100.to.280nm,.UV-B.at.280.to.315nm,.and.UV-A.at.315.to. 400nm..UV-C.is.the.shortest.wave.ultraviolet.radiation.and.UV-A.is.the.longest.wave.ultraviolet.radiation. The.retina.of.the.eye.is.not.very.vulnerable.in.the.ultraviolet.or.the.far-infrared.portions.of.the.spectrum..It.is.the. cornea.and.the.lens.that.absorb.ultraviolet..High.exposure.levels.can.permanently.damage.these.structures.of.the. eye..Intermediate.levels.in.the.UV.(200-320nm).cause.greater.injury.to.the.cornea,.which.is.severe.but.temporary.. The.injury,.photokeratitis,.may.last.for.only.one.or.two.days.but.is.extremely.painful..Near-ultraviolet.(long.wavelength. UV-A).is.absorbed.heavily.in.the.lens.of.the.eye..Damage.to.this.area.of.the.eye.may.not.be.evident.for.many.years. and.may.have.lasting.effects. Human.skin.is.also.susceptible.to.radiation.injury..This.susceptibility.occurs.in.the.range.of.radiant.energy.present. -
Page 20: Kit.information
MA02-16ENG-REV8 Kit Information imager Serial Number: ........____________________________________ . Purchase date: ..........._____________________________________ contact Person: ........... ____________________________________ Optional Accessory Packages for the KSS8900 BM6009 PROFESSIONAL DUTY KSSDIG DIGITAL CAMERA KIT TRIPOD The. high-resolution. digital. camera. offers. the. capability. to. photograph.
