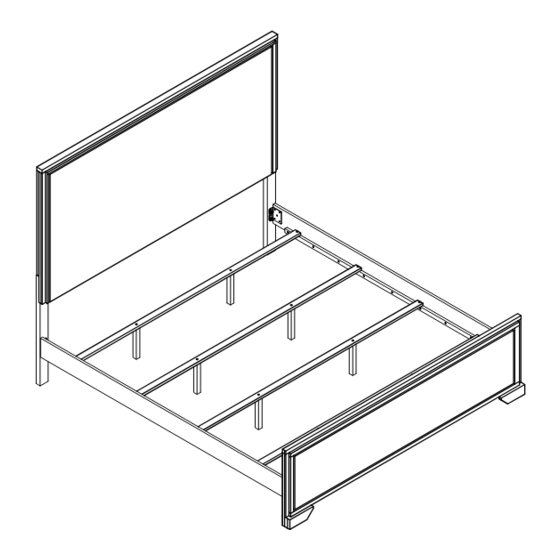

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 224461KE (B1&B2) Eastern King Bed REVISION 0 : 07/01/2022 COASTERFURNITURE.COM PAGE 1 OF 5...
-
Page 2: Assembly Tips
HEADBOARD PANEL FOOTBOARD RIGHT HEADBOARD BED SLAT 4PCS LEFT HEADBOARD BED SLAT SUPPORT 8PCS WITH LEVELER B2 (BOX 2) BED RAIL 2PCS 224461KE (B1) FROM BOX 1 FOOTBOARD 224461KE (B1) FROM BOX 1 HEADBOARD COMPLETE COASTERFURNITURE.COM PAGE 2 OF 5... -
Page 3: Hardware Identification
2 . This product is for home use only and not intended for commercial establishment. ASSEMBLY TIME 20 MINUTES HARDWARE IDENTIFICATION Z-B1 (BOX1) - HARDWARE PACK IS LOCATED IN 224461KE (B1) BOLT 6PCS FLAT HEAD SCREW 8PCS (M6 x 30mm - BLK) - Page 4 (B1&B2) 224461KE ITEM: ASSEMBLY INSTRUCTIONS STEP 1 "R" Marking behind the Headboard & Leg "L" Marking behind the Headboard & Leg STEP 2 COASTERFURNITURE.COM PAGE 4 OF 5...
- Page 5 (B1&B2) 224461KE ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 COMPLETE COASTERFURNITURE.COM PAGE 5 OF 5...
- Page 6 (B1&B2) 224461KE ITEM: Inner Size : 76.50"W X 81.00"D 13.75'' 73.00" 63.00'' 8.75'' 76.50" 22.00'' 8.50'' 2.75'' 81.00" 67.50" 85.25" 78.75" Note: Dimension tolerance ±5% Dimension tolerance ±5% COASTERFURNITURE.COM...
